ألوان الهيكل
المواصفات

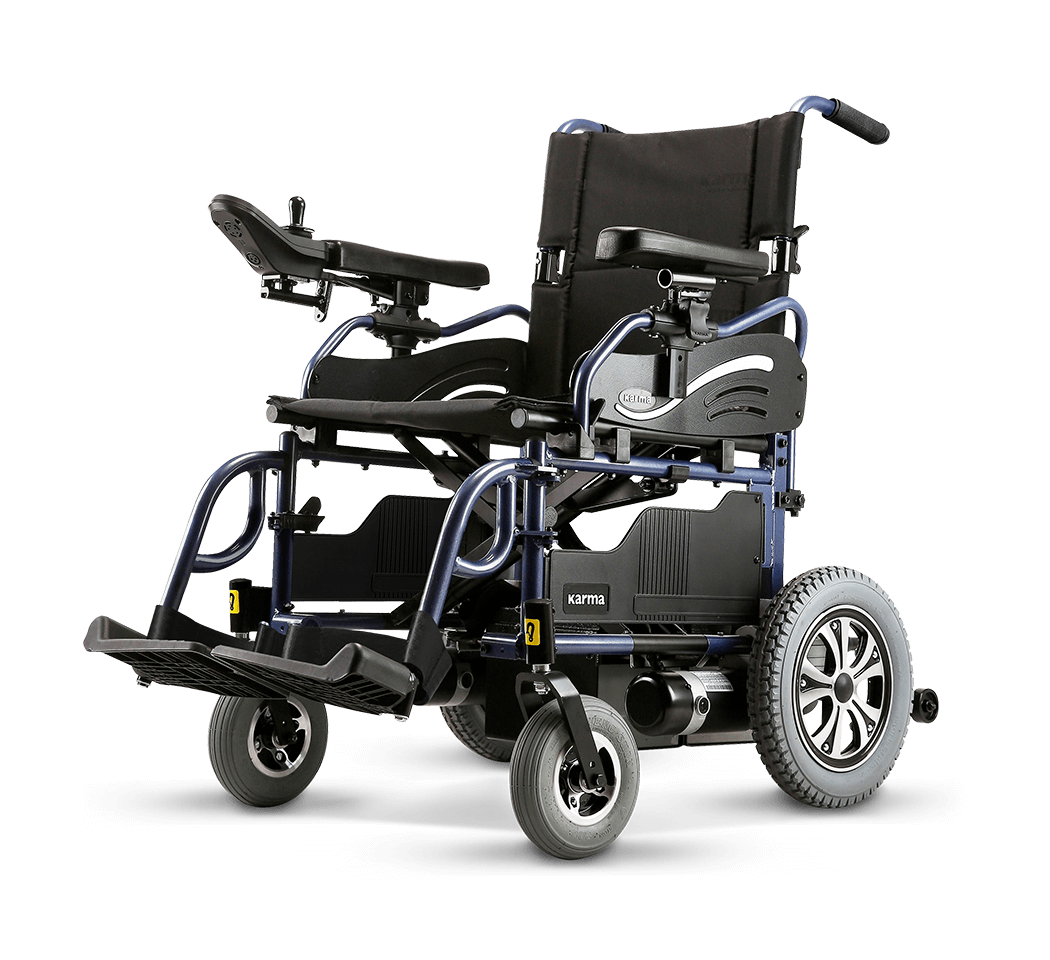

| Product Model | KP-20 Series | ||
| Nominal seat width (mm/in)* | 410 / 16 | 460 / 18 | 515 / 20 |
| Nominal seat depth (mm/in)** | 430 / 16 | 480 / 18 | 480 / 18 |
| Front caster / Drive wheel size (in) | 8 / 12 | 8 / 12 | 8 / 12 |
| Backrest height (mm) | 450 ~ 525 | 450 ~ 525 | 450 ~ 525 |
| Headrest height above seat (mm) | N/A | N/A | N/A |
| Armrest to seat distance (mm) | 225 ~ 285 | 225 ~ 285 | 225 ~ 285 |
| Front location of armrest structure (mm) | 245 ~ 500 | 245 ~ 500 | 245 ~ 500 |
| Seat surface height at front edge (mm) | 525 | 525 | 525 |
| Footrest to seat distance (mm) | 360 ~ 445 | 350 ~ 435 | 350 ~ 435 |
| Effective seat width (mm) | 430 | 480 | 530 |
| Effective seat depth (mm) | 470 | 515 | 515 |
| Seat plane angle (X°) | 6 | 6 | 6 |
| Backrest angle (X°) | 11 | 11 | 11 |
| Seat to backrest angle (X°) | 95 | 95 | 95 |
| Leg to seat angle (X°) | 110 | 110 | 110 |
| Overall length with legrest (mm) | 985 ~ 1115 | 985 ~ 1115 | 985 ~ 1115 |
| Overall width (mm) | 590 | 640 | 690 |
| Overall height (mm) | 960 ~ 1035 | 960 ~ 1035 | 960 ~ 1035 |
| Folded length (mm) | 755 | 755 | 755 |
| Folded width (mm) | 380 | 395 | 395 |
| Folded height (mm) | 910 | 910 | 910 |
| Total mass (kg) | 67.0 | 67.6 | 67.6 |
| Total mass without batteries (kg) | 35.7 | 36.3 | 36.3 |
| Mass of the heaviest part (kg) | 30.0 | 30.6 | 30.6 |
| Maximum user weight (kg) | 115 / 135 (pneumatic tires) | ||
| Motor power (W) | 200 | 200 | 200 |
| Battery capacity (Ah) | 50*2 | 50*2 | 50*2 |
| Charger output current (A) | 6 | 6 | 6 |
| Drive range (km) *** | 32 | 32 | 32 |
| Battery Compartment (L x W x H) (mm) | 220 x 170 x 175 (Single Compartment) | ||
| Maximum speed forward (km) | 6 | 6 | 6 |
| Minimum braking distance from max speed (mm) | 1000 | 1000 | 1000 |
| Obstacle climbing (mm) | 50 | 50 | 50 |
| Ground clearance (mm) | 60 | 60 | 60 |
| Minimum turning radius (mm) | 780 | 955 | 1130 |
| Minimum turning radius without user (mm) | 650 | 825 | 1000 |
| Reversing width (mm) | 1180 | 1220 | 1260 |
| Static stability downhill (X°) | 16 | 16 | 16 |
| Static stability uphill (X°) | 14 | 14 | 14 |
| Static stability sideways (X°) | 16 | 16 | 16 |
| Dynamic stability uphill (X°) | 6 | 6 | 6 |
| Ability to climb rated slope (X°) | 12 | 12 | 12 |
Remark : Karma reserves the right to modify information herein without further notice.
