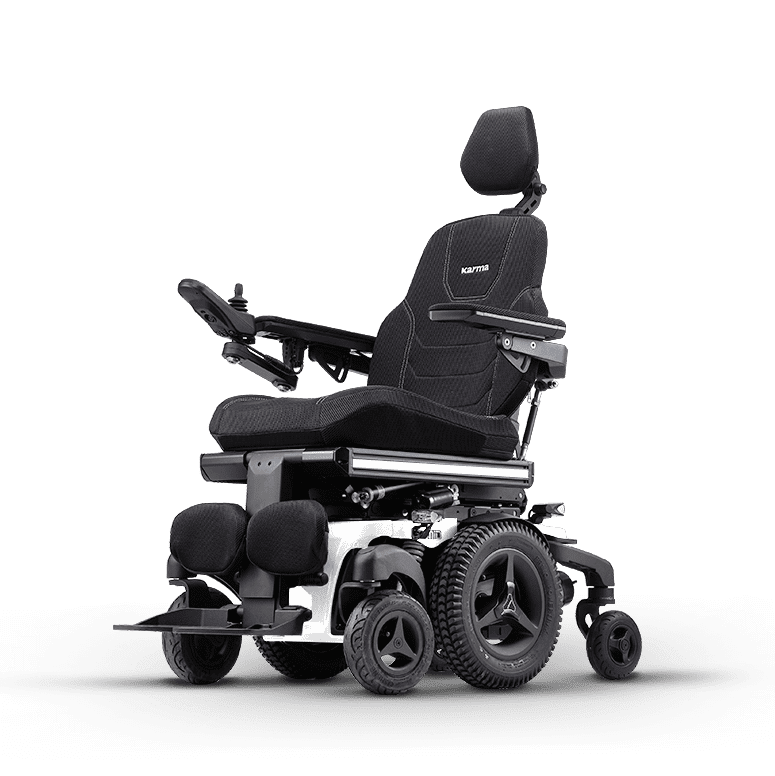

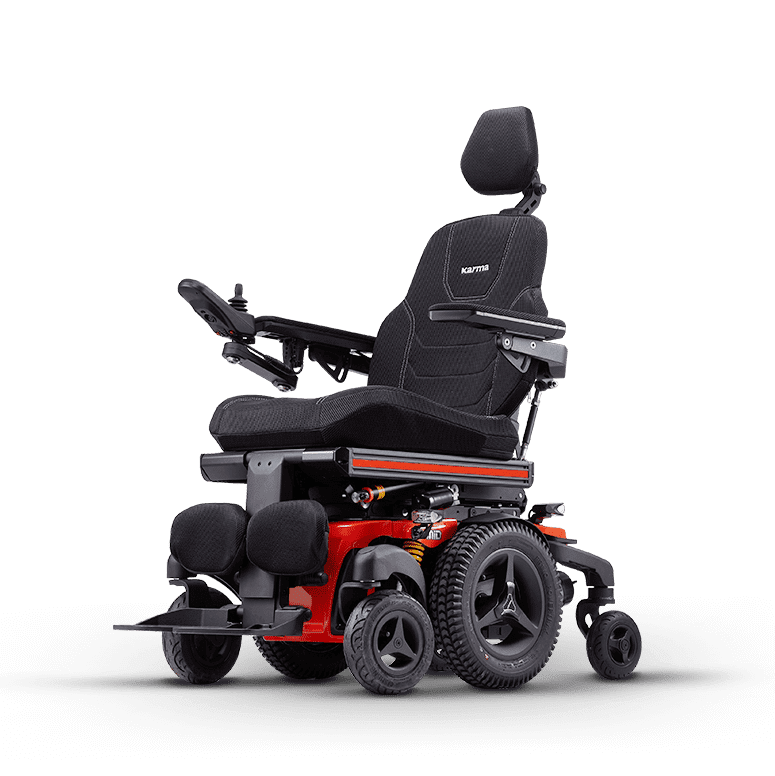

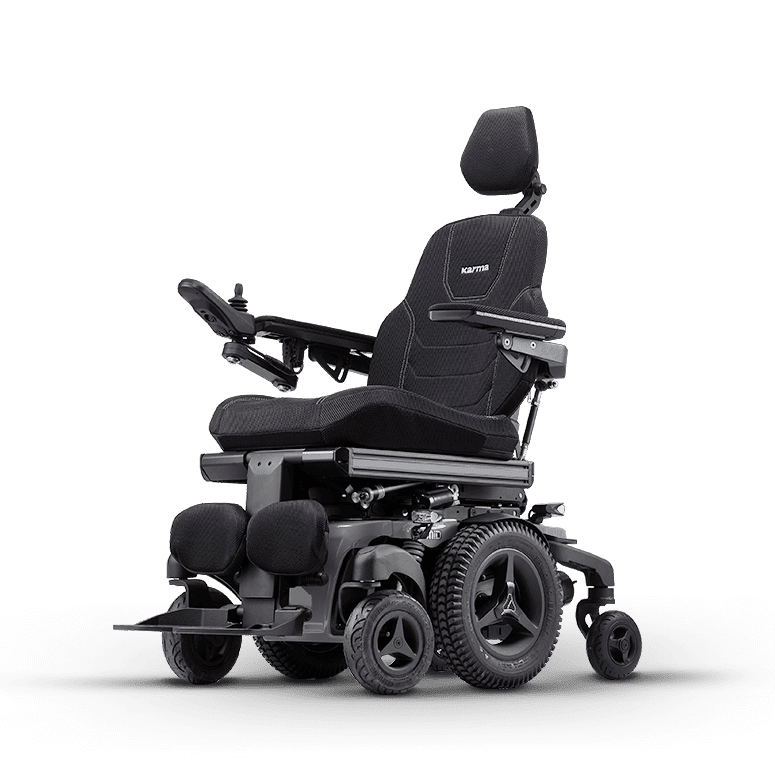

ألوان الغلاف

المواصفات

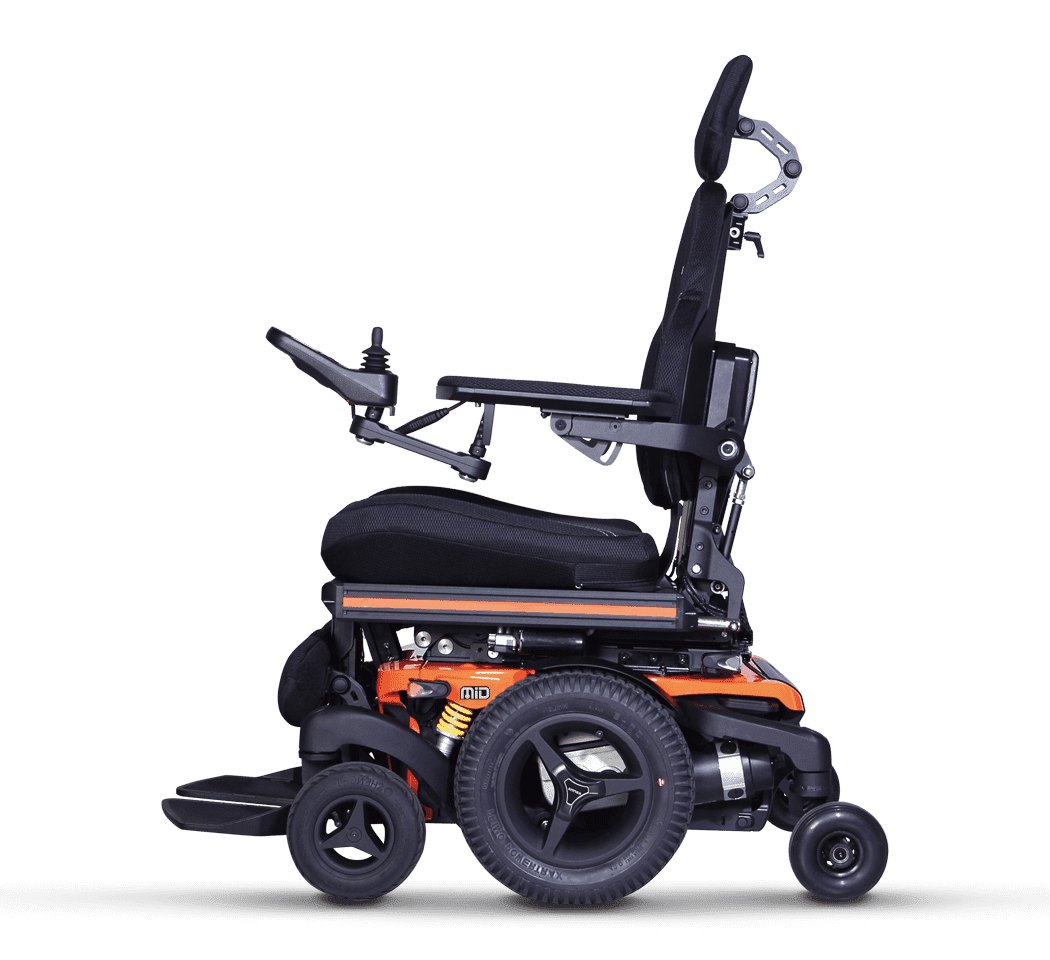

Product Model Mid Lectus
Seating SystemMinimum Maximum
Nominal seat width (mm)*420 ~ 520 mm, 50 mm increment
Nominal seat depth (mm)**400 ~ 600 mm, 25 mm increment
Backrest height without cushion (mm)685695
Backrest height with cushion (mm)615625
Headrest height above seat (mm) 695 800
Armrest to seat distance without
cushion (mm)
250250
Armrest to seat distance with cushion (mm)140140
Front location of armrest structure
(mm)
265665
Seat surface height at front edge
without cushion (mm)
470770
Seat surface height at front edge with
cushion (mm)
580880
Footrest to seat distance without
cushion (mm)
275405
Footrest to seat distance with cushion (mm)
385510
Effective seat width (mm) 420 ~ 520 mm, 50 mm increment
Effective seat depth (mm) 380555
Seat plane angle (X°)549

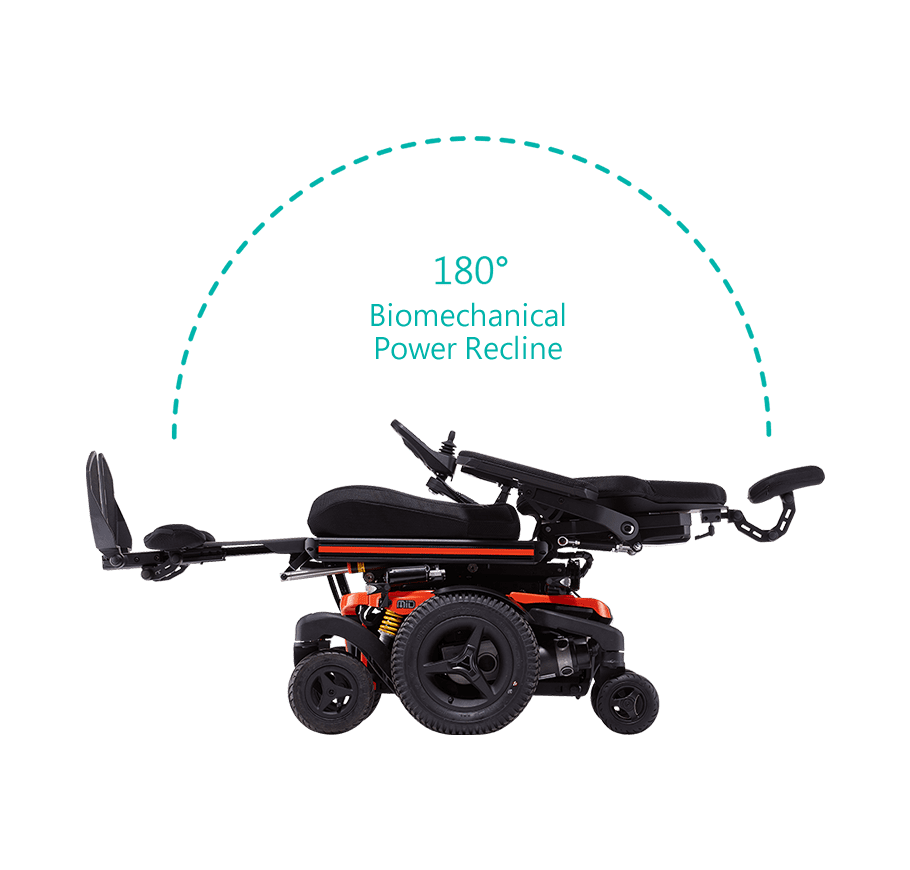

Backrest angle (X°) -787
Seat to backrest angle (X°)77171
Leg to seat angle (X°) 91173
Driving CharacteristicsMinimum Maximum
Drive wheel size 2.50/2.00 - 4 (8")
Front caster size 3.00 - 8 (14")
Rear caster size 2.00/1.00 - 4 (6")
Overall length with legrest (mm) 11652115
Overall width (mm) 615715
Overall height (mm) 690 1750
Folded length (mm) 830-
Folded width (mm) 615-
Folded height (mm) 1115-
Total mass (kg) - 178
Total mass without batteries (kg) -147
Mass of the heaviest part (kg) - 144
Maximum user weight (kg) - 136
Drive range (km)*** - 36
Maximum speed forward (km)
- 12
Minimum braking distance from max
speed (mm)
2000-
Obstacle climbing (mm) - 50
Ground clearance (mm) 70-
Minimum turning radius (mm) 810-
Minimum turning radius without user (mm)730-
Reversing width (mm) 1170-
Static stability downhill (X°) 9
Static stability uphill (X°)9
Static stability sideways (X°) 9
Dynamic stability uphill (X°) 6
Ability to climb rated slope (X°)*** 12
Electrical System
Motor power (W) 320
Battery capacity (Ah) 80*2
Charger output current (A) 8
Battery Compartment (L x W x H) (mm)180 x 175 x 220 (Front Compartment)
175 x 165 x 225 (Rear Compartment)

Remark : Karma reserves the right to modify information herein without further notice.
