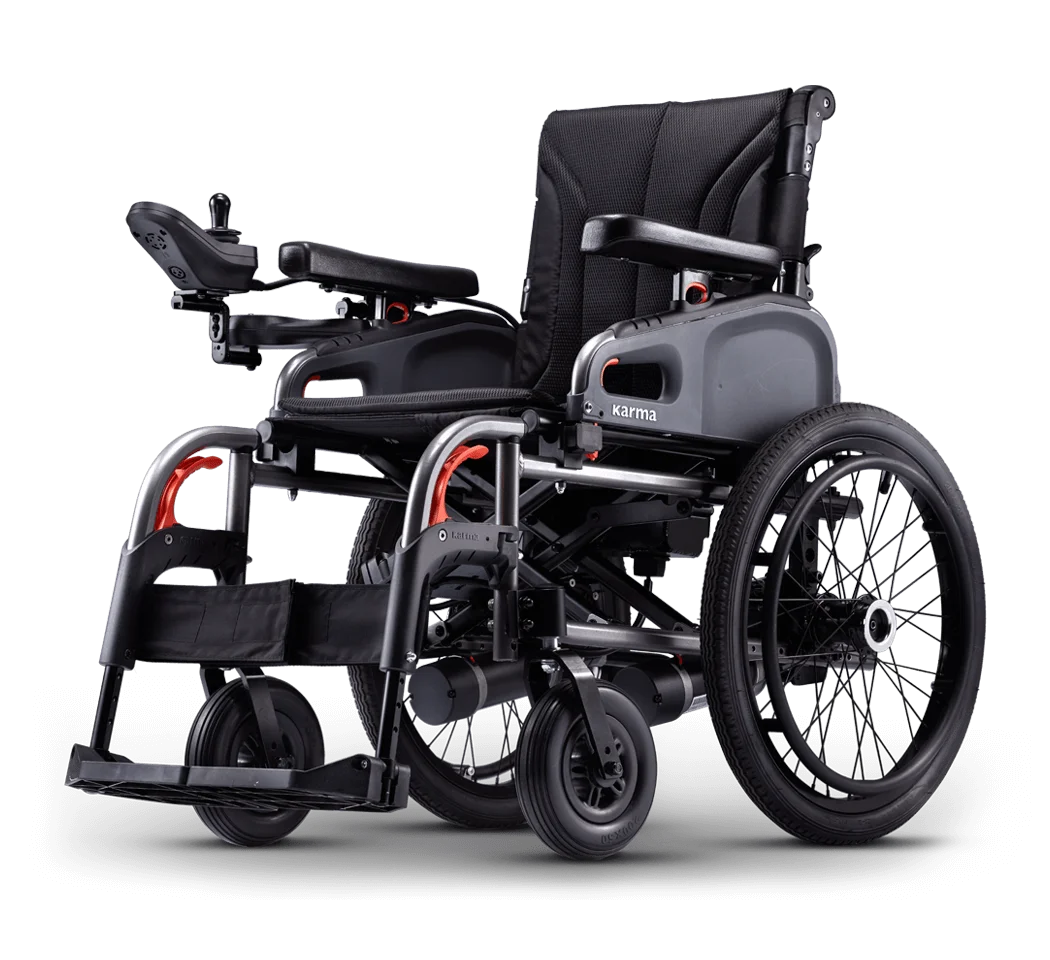

El eFlexx (EFL) es una silla de ruedas eléctrica plegable que puede caber en el maletero de un auto sedán. Esta silla eléctrica es ideal para los usuarios que viven en un área donde el transporte accesible para sillas de ruedas no está disponible fácilmente. La batería cumple con la normativa UN38.3, lo que la convierte en la silla eléctrica perfecta para viajar al extranjero.
| Product Model | eFlexx | ||
| Nominal seat width (mm)* | 360 / 15 | 410 / 17 | 460 / 19 |
| Nominal seat depth (mm)** | 415 / 16 | 440 / 17 | 465 / 18 |
| Front caster / Drive wheel size (in) | 8 / 14 | 8 / 14 | 8 / 14 |
| Backrest height (mm) | 410 | 410 | 410 |
| Headrest height above seat (mm) | N/A | N/A | N/A |
| Armrest to seat distance (mm) | 210 ~ 290 | 210 ~ 290 | 210 ~ 290 |
| Front location of armrest structure (mm) | 315 ~ 545 | 315 ~ 545 | 315 ~ 545 |
| Seat surface height at front edge (mm) | 485 | 485 | 485 |
| Footrest to seat distance (mm) | 325 ~ 425 | 325 ~ 425 | 325 ~ 425 |
| Effective seat width (mm) | 405 | 455 | 500 |
| Effective seat depth (mm) | 560 | 585 | 610 |
| Seat plane angle (X°) | 7 | 7 | 7 |
| Backrest angle (X°) | 6 ~ 26 | 6 ~ 26 | 6 ~ 26 |
| Seat to backrest angle (X°) | 90 ~ 110 | 90 ~ 110 | 90 ~ 110 |
| Leg to seat angle (X°) | 99 | 99 | 99 |
| Overall length with legrest (mm) | 1015 ~ 1065 | 1015 ~ 1065 | 1015 ~ 1065 |
| Overall width (mm) | 560 | 615 | 665 |
| Overall height (mm) | 860 | 860 | 860 |
| Folded length (mm) | 815 | 865 | 915 |
| Folded width (mm) | 505 | 505 | 505 |
| Folded height (mm) | 730 | 730 | 730 |
| Total mass (kg) | 35.0 | 35.0 | 35.0 |
| Total mass without batteries (kg) | 30.9 | 30.9 | 30.9 |
| Mass of the heaviest part (kg) | 27.0 | 27.0 | 27.0 |
| Maximum user weight (kg) | 100 | 100 | 100 |
| Motor power (W) | 250 | 250 | 250 |
| Battery capacity (Ah) | 26.1*1 | 26.1*1 | 26.1*1 |
| Charger output current (A) | 5 | 5 | 5 |
| Drive range (km)*** | 20 (26.1Ah) | 20 (26.1Ah) | 20 (26.1Ah) |
| Battery Compartment (L x W x H) (mm) | 155 x 75 | 155 x 75 | 155 x 75 |
| Maximum speed forward (km) | 8 | 8 | 8 |
| Minimum braking distance from max speed (mm) | 2500 | 2500 | 2500 |
| Obstacle climbing (mm) | 35 | 35 | 35 |
| Ground clearance (mm) | 100 | 100 | 100 |
| Minimum turning radius (mm) | 945 | 975 | 1055 |
| Minimum turning radius without user (mm) | 795 | 825 | 905 |
| Reversing width (mm) | 1105 | 1210 | 1230 |
| Static stability downhill (X°) | 15 | 15 | 15 |
| Static stability uphill (X°) | 20 | 20 | 20 |
| Static stability sideways (X°) | 11 | 11 | 11 |
| Dynamic stability uphill (X°) | 6 | 6 | 6 |
| Ability to climb rated slope (X°)*** | 10 | 10 | 10 |
Observación: Karma reserva el derecho de modificar la información aquí sin aviso previo.
