Colores para el Marco

Especificación

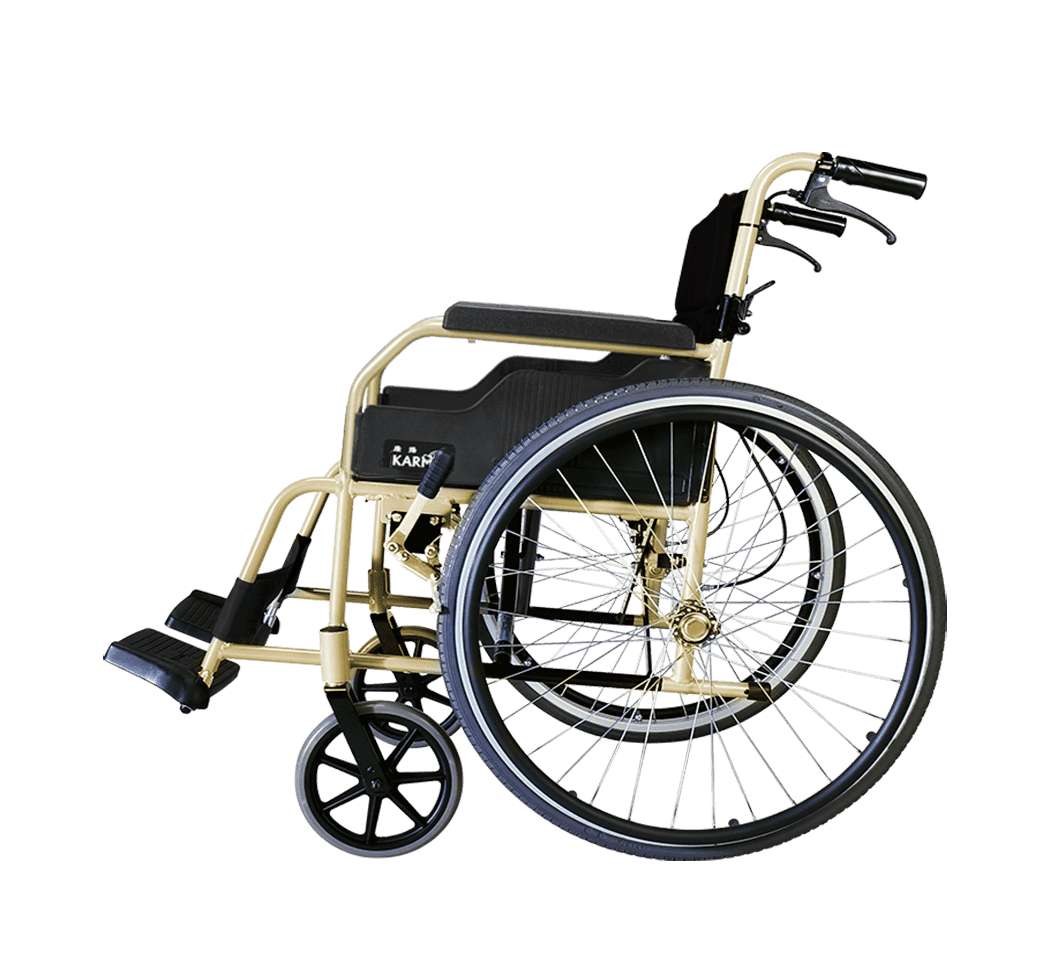

Product ModelKM-1500
Nominal seat width (mm/in)*410 / 16460 / 18
Nominal seat depth (mm/in)**415 / 16415 / 16
Front caster / Rear wheel size (in)8 / 248 / 24
Backrest height (mm)380380
Headrest height above seat (mm)N/AN/A
Armrest to seat distance (mm)225 225
Front location of armrest structure (mm)345345
Seat surface height at front edge (mm)485485
Footrest to seat distance (mm)295 ~ 415295 ~ 415
Effective seat width (mm)450500
Effective seat depth (mm)480480
Seat plane angle (X°)77
Backrest angle (X°)77
Seat to backrest angle (X°)9090
Leg to seat angle (X°)108108
Overall length with legrest (mm)1010 ~ 10601010 ~ 1060
Overall width (mm)720770
Overall height (mm)865865
Folded length (mm)915915
Folded width (mm)350350
Folded height (mm)770770
Total mass (kg)14.114.2
Mass of the heaviest part (kg)13.813.9
Maximum user weight (kg)100100
Minimum turning radius (mm)780780
Minimum turning radius without user (mm)730730
Pivot width (mm)11801180
Static stability downhill (X°)1616
Static stability uphill (X°)1616
Static stability sideways (X°)1818
Handrim diameter (mm)535535
Horizontal location of axle (mm)00

Observación: Karma reserva el derecho de modificar la información aquí sin aviso previo.
