Colores para el Marco
Especificación

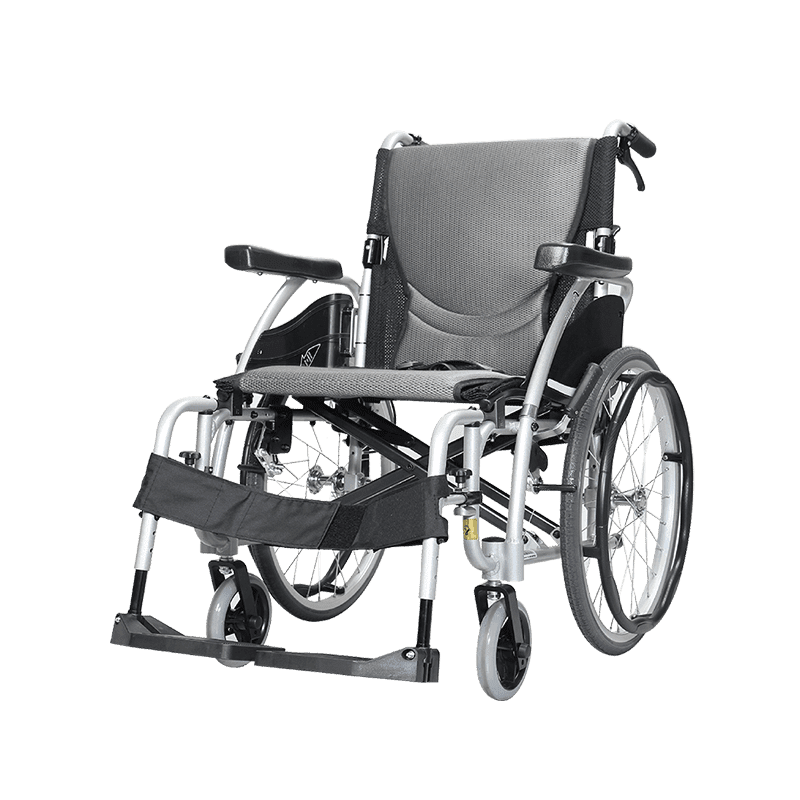

| Product Model | S-Ergo 125 (KM-1520.3) | |||||
| Nominal seat width (mm/in)* | 400 / 16 | 450 / 18 | 500 / 20 | 400 / 16 | 450 / 18 | 500 / 20 |
| Nominal seat depth (mm/in)** | 430 / 17 | 430 / 17 | 430 / 17 | 430 / 17 | 430 / 17 | 430 / 17 |
| Front caster / Rear wheel size (in) | 7 / 14 | 7 / 14 | 7 / 14 | 7 / 24 | 7 / 24 | 7 / 24 |
| Backrest height (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| Headrest height above seat (mm) | N/A | N/A | N/A | N/A | N/A | N/A |
| Armrest to seat distance (mm) | 230 | 230 | 230 | 230 | 230 | 230 |
| Front location of armrest structure (mm) | 330 | 330 | 330 | 330 | 330 | 330 |
| Seat surface height at front edge (mm) | 500 | 500 | 500 | 495 | 495 | 495 |
| Footrest to seat distance (mm) | 335 ~ 415 | 335 ~ 415 | 335 ~ 415 | 335 ~ 415 | 335 ~ 415 | 335 ~ 415 |
| Effective seat width (mm) | 430 | 475 | 525 | 430 | 475 | 525 |
| Effective seat depth (mm) | 560 | 560 | 560 | 560 | 560 | 560 |
| Seat plane angle (X°) | 6 | 6 | 6 | 6 | 6 | 6 |
| Backrest angle (X°) | 12 | 12 | 12 | 12 | 12 | 12 |
| Seat to backrest angle (X°) | 96 | 96 | 96 | 96 | 96 | 96 |
| Leg to seat angle (X°) | 97 | 97 | 97 | 97 | 97 | 97 |
| Overall length with legrest (mm) | 1010 | 1010 | 1010 | 1000 | 1000 | 1000 |
| Overall width (mm) | 575 | 625 | 675 | 580 | 630 | 680 |
| Overall height (mm) | 905 | 905 | 905 | 910 | 910 | 910 |
| Folded length (mm) | 735 | 735 | 735 | 805 | 805 | 805 |
| Folded width (mm) | 310 | 310 | 310 | 320 | 320 | 320 |
| Folded height (mm) | 705 | 705 | 705 | 710 | 730 | 750 |
| Total mass (kg) | 12.9 | 13.1 | 13.3 | 14.6 | 14.8 | 15.0 |
| Mass of the heaviest part (kg) | 9.1 (14Q) 11.3 (14F) | 9.3 (14Q) 11.5 (14F) | 9.5 (14Q) 11.7 (14F) | 9.1 (24Q) 13.0 (24F) | 9.4 (24Q) 13.2 (24F) | 9.6 (24Q) 13.4 (24F) |
| Maximum user weight (kg) | 115 | 115 | 115 | 115 | 115 | 115 |
| Minimum turning radius (mm) | 840 | 850 | 860 | 830 | 840 | 850 |
| Minimum turning radius without user (mm) | 710 | 730 | 750 | 700 | 720 | 740 |
| Pivot width (mm) | 1160 | 1170 | 1180 | 1160 | 1170 | 1180 |
| Static stability downhill (X°) | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 |
| Static stability uphill (X°) | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 |
| Static stability sideways (X°) | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 | 17.3 |
| Handrim diameter (mm) | N/A | N/A | N/A | 520 | 520 | 530 |
| Horizontal location of axle (mm) | 10 | 10 | 10 | 0 | 0 | 0 |
Por los demás detalles de la especificación, sírvase verifcar aquí.
Observación: Karma reserva el derecho de modificar la información aquí sin aviso previo.
