Colores para la cubierta

Especificación

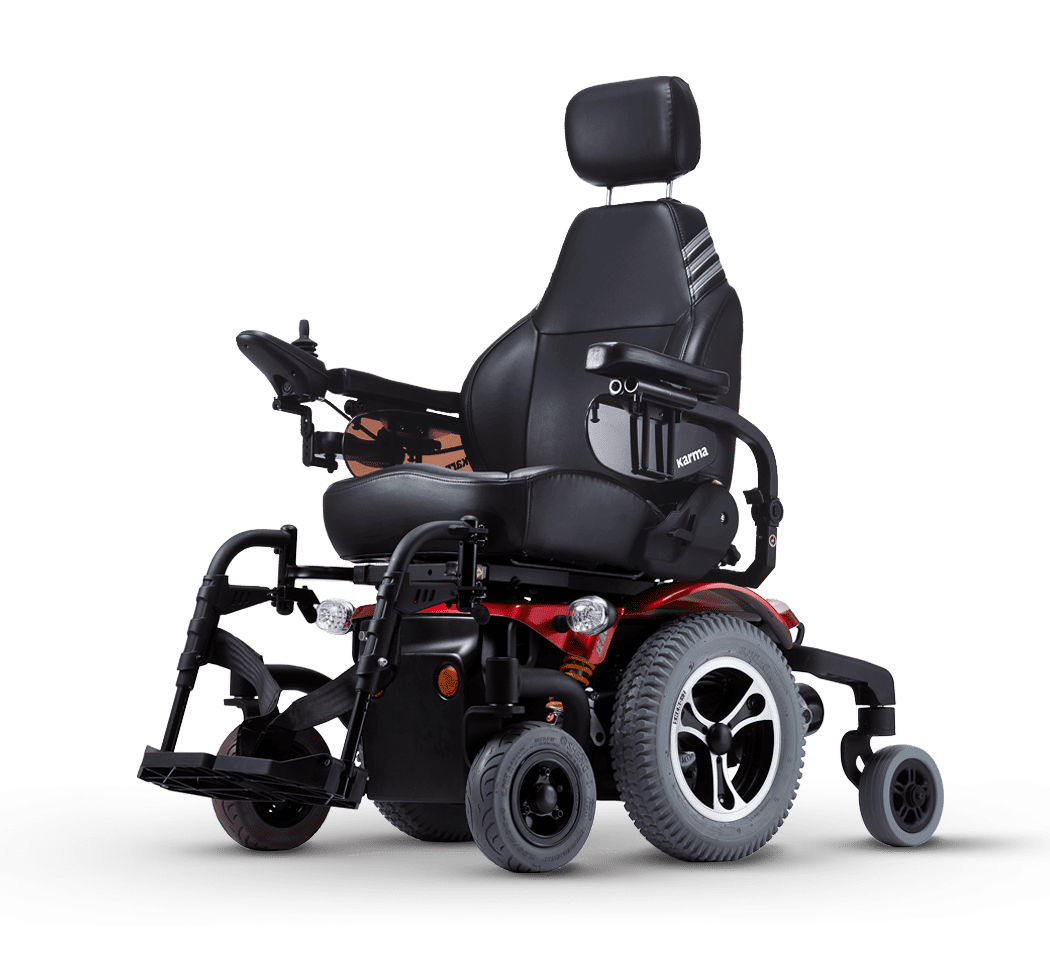

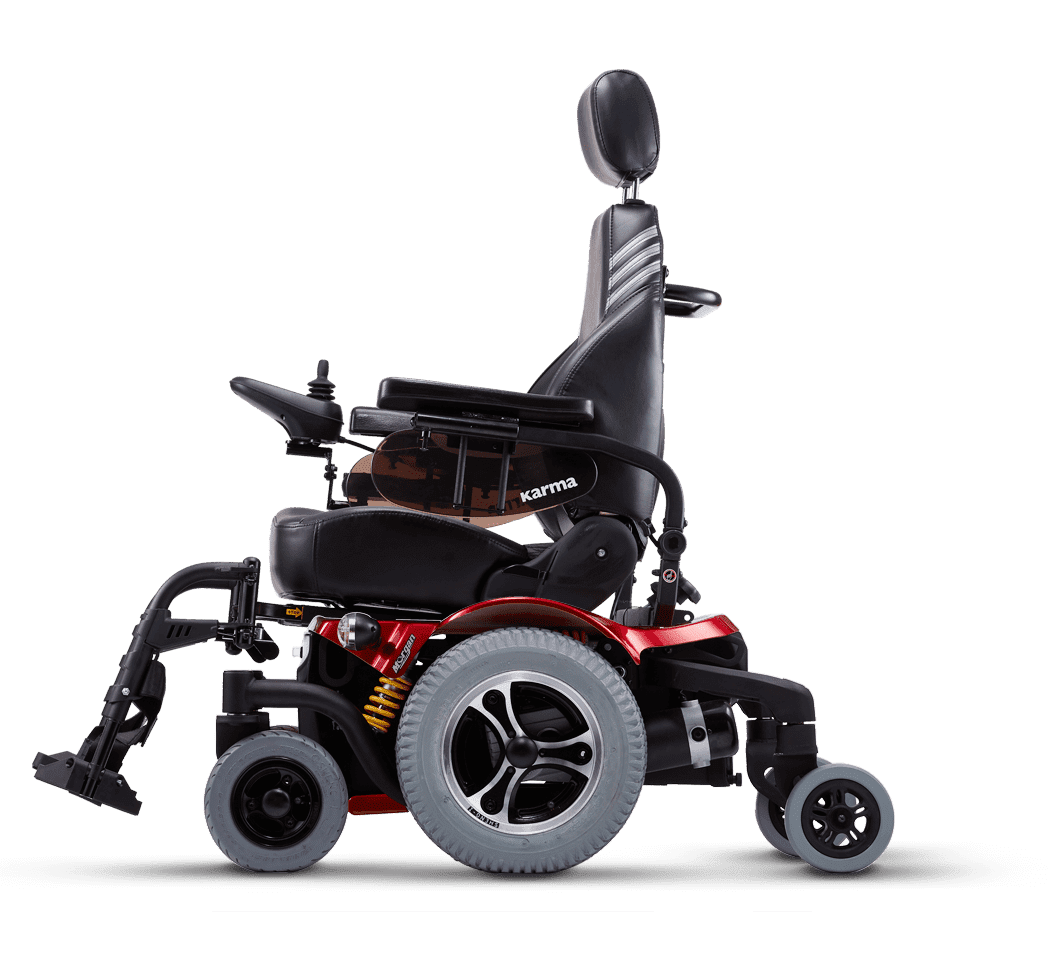

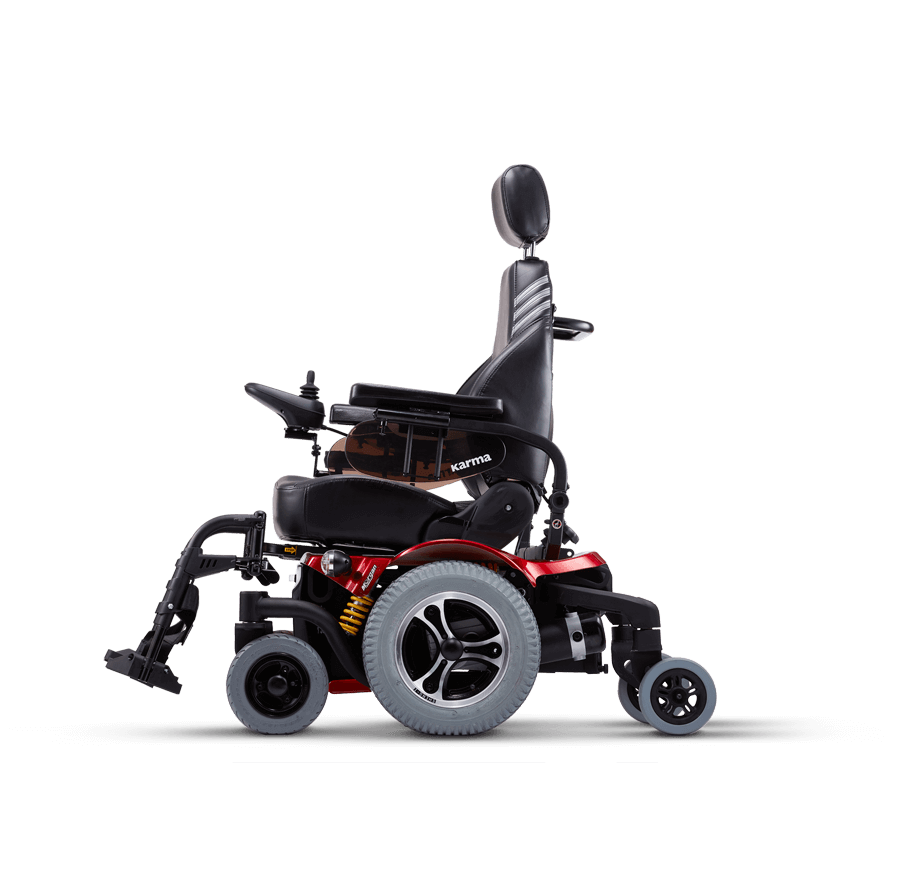

Product ModelMORGAN Captain Seat(with pelvic belt)
Nominal seat width (mm)*460510
Nominal seat depth (mm)**410480
Front Seat Height (mm)8
Drive wheel size (in)14
Rear caster size (in)6
Backrest height with cushion (mm)540
Armrest to seat distance with cushion
(mm)		200 ~ 290
Seat surface height at front edge with
cushion (mm)		535
Footrest to seat distance with cushion
(mm)		435 ~ 500
Effective seat width (mm)480520
Effective seat depth (mm)430490
Seat plane angle (X°)129

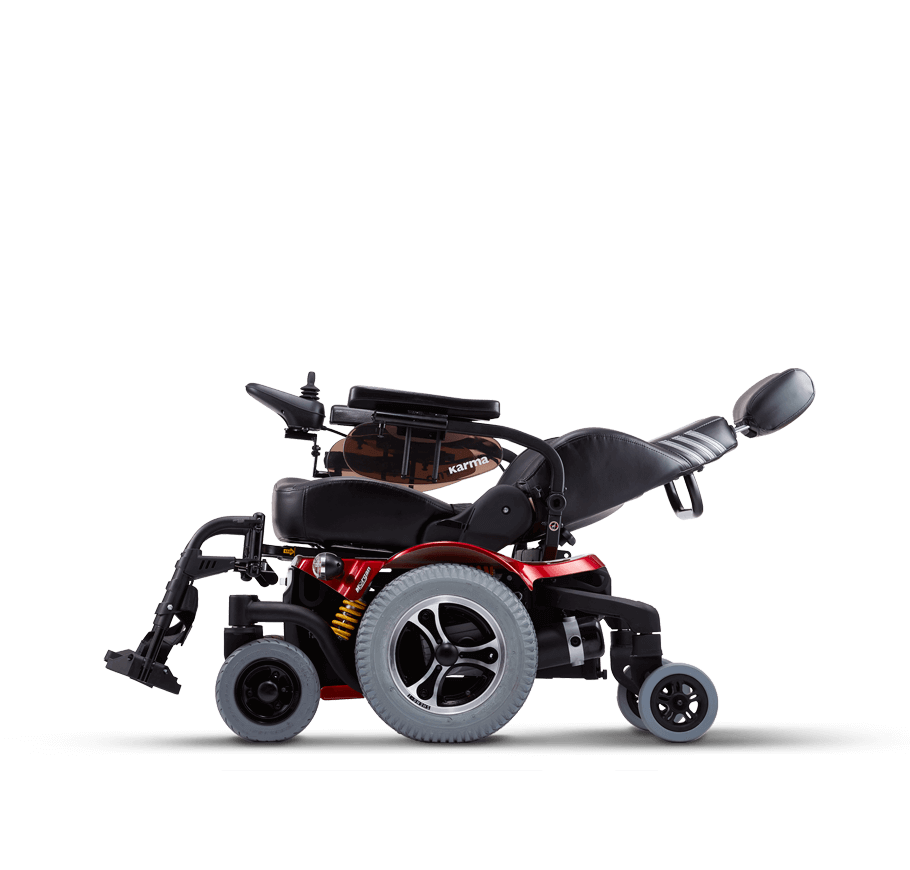

Backrest angle (X°)0~650~45
Overall length with legrest (mm)1200

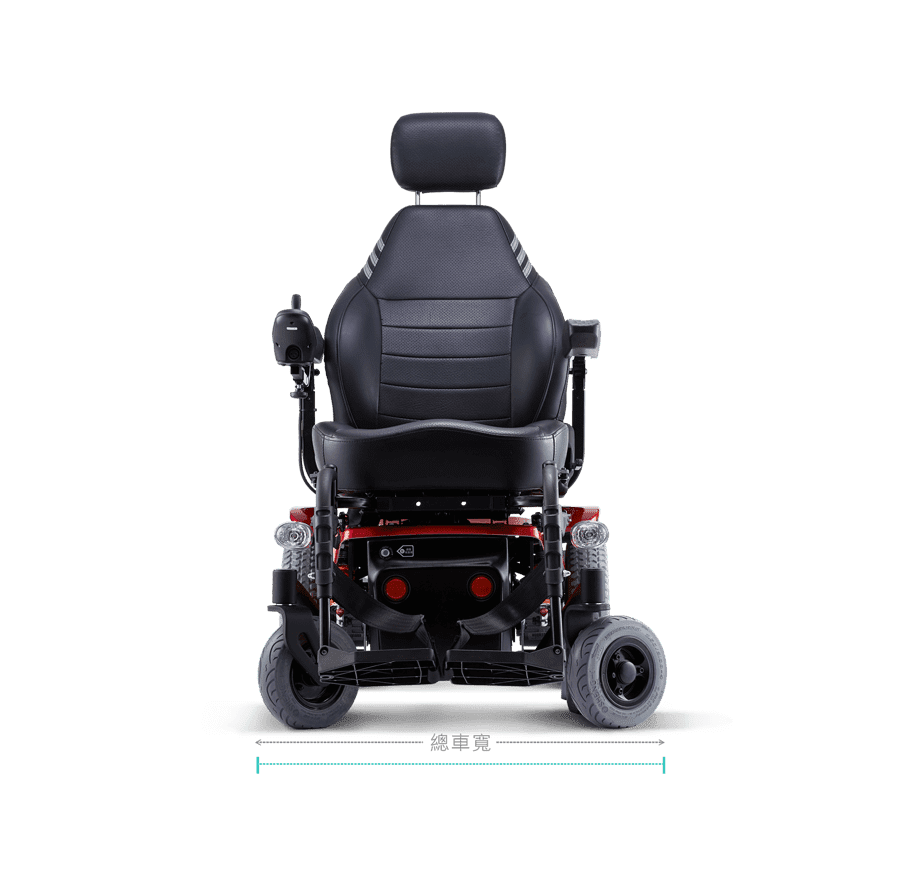

Overall width (mm)600
Overall height (mm)1230 (with headrest)
Total mass (kg)141
Total mass without batteries (kg)109
Maximum user weight (kg)136
ControllerVR2
Motor power (W)450
Battery capacity (Ah)50* 2
Charger output current (A)6/8
Drive range (km)***25
Battery Compartment (L x W x H) (mm)Front 238 x 170 x 215
Rear 238 x 170 x 190
Maximum speed forward (km)6/10/12
Obstacle climbing (mm)50
Minimum turning radius (mm)935
Minimum turning radius without user
(mm)		785
Dynamic stability (X°)6
Ability to climb rated slope (X°)****8

Observación: Karma reserva el derecho de modificar la información aquí sin aviso previo.


Descargar
Icono
Serie Morgan - Manual de Usuario silla de ruedas eléctrica
2.67 MB   1 file(s)
