Specification
Power Wheelchair Measurement Method

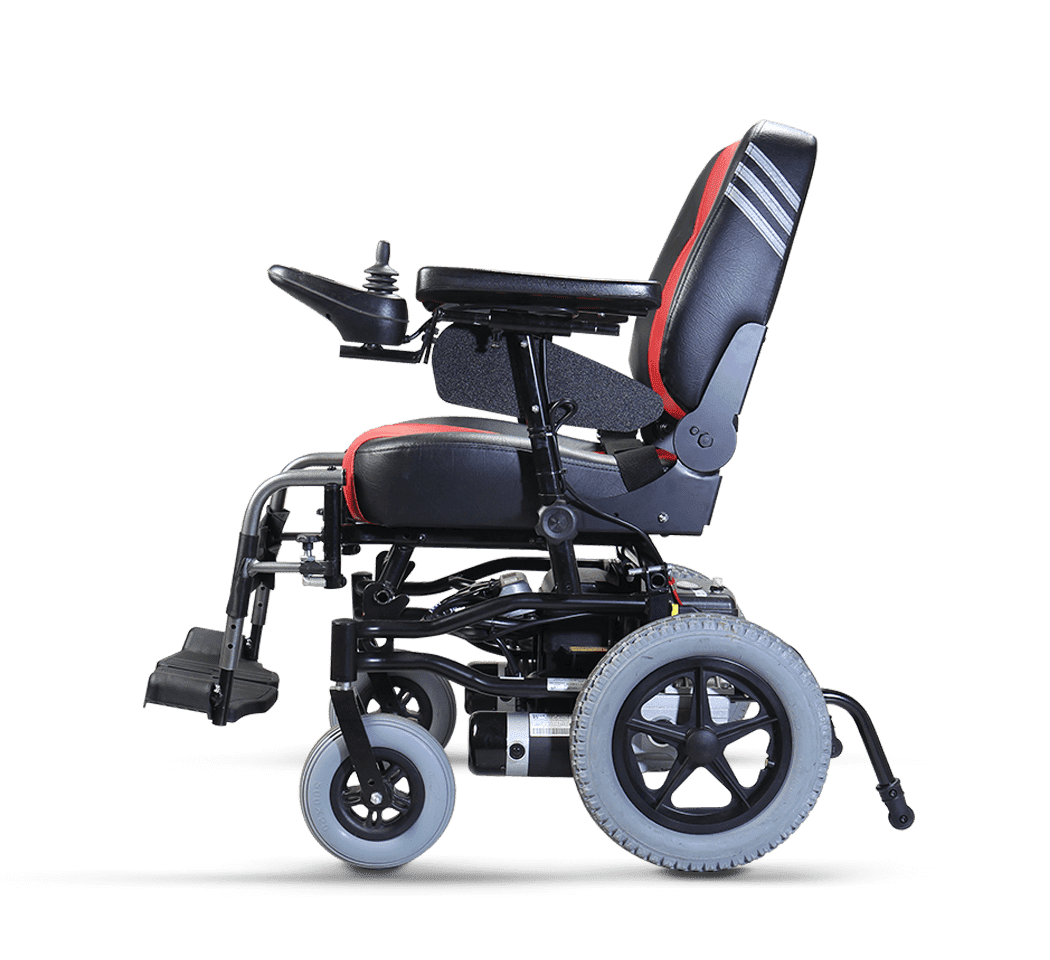

| Product Model | KP-10.3 CPT |
| Nominal seat width (in) | 18 |
| Front x Rear wheel size (in) | 8 x 12 |
| Maximum user weight (kg) | 120 |
| Overall length with legrest (mm) | 1020 |
| Overall width (mm) | 615 ~ 680 |
| Overall height (mm) | 920 |
| Folded length (mm) | 660 |
| Folded width (mm) | 615 |
| Folded height (mm) | 418 |
| Total mass (kg) | 53.3(22 Ah) / 64.3(36 Ah) |
| Total mass without batteries (kg) | 40(22 Ah) / 42(36 Ah) |
| Mass of the heaviest part (kg) | 24(22 Ah) / 26(36 Ah) |
| Maximum speed forward (km) | 6 |
| Drive range (km) | 14.9(22 Ah) / 18.7(36 Ah) |
| Minimum turning radius (mm) | 915 |
| Minimum turning radius without user (mm) | 785 |
| Reversing width (mm) | 1120 |
| Ground clearance (mm) | 100 |
| Obstacle climbing (mm) | 50 |
| Static stability downhill (X°) | 17 |
| Static stability uphill (X°) | 14 |
| Static stability sideways (X°) | 15 |
| Dynamic stability uphill (X°) | 6 |
| Ability to climb rated slope (X°) | 6 |
| Braking method | Electromagnetic Brake |
| Minimum braking distance from max speed (mm) | 1000 |
| Motor power (W) | 200 |
| Battery capacity (Ah) | 22*2 / 36*2 |
| Charger output current (A) | 4 |
| Battery Compartment (L x W x H) (mm) | 180 x 80 x 165 (22 Ah) (Single Compartment) 200 x 135 x 155 (36 Ah) (Single Compartment) |
| Seat plane angle (X°) | 12 |
| Effective seat depth (mm) | 440 |
| Nominal seat depth (mm) | 460 |
| Effective seat width (mm) | 440 ~ 550 |
| Seat surface height at front edge (mm) | 550 |
| Backrest angle (X°) | 19 |
| Seat to backrest angle (X°) | 97 |
| Backrest height (mm) | 430 |
| Headrest height above seat (mm) | - |
| Leg to seat angle (X°) | 113 |
| Footrest to seat distance (mm) | 410 ~ 485 |
| Armrest to seat distance (mm) | 200 ~ 240 |
| Front location of armrest structure (mm) | 370 |
Electric ver.19
Remark :
* All the specifications specified in this section are estimated based on the following conditions: 20℃~35℃, an 80 kg occupant, brand new fully charged batteries and driving on theflat road.
* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* KARMAreserves the right to modify information herein without further
notice.
