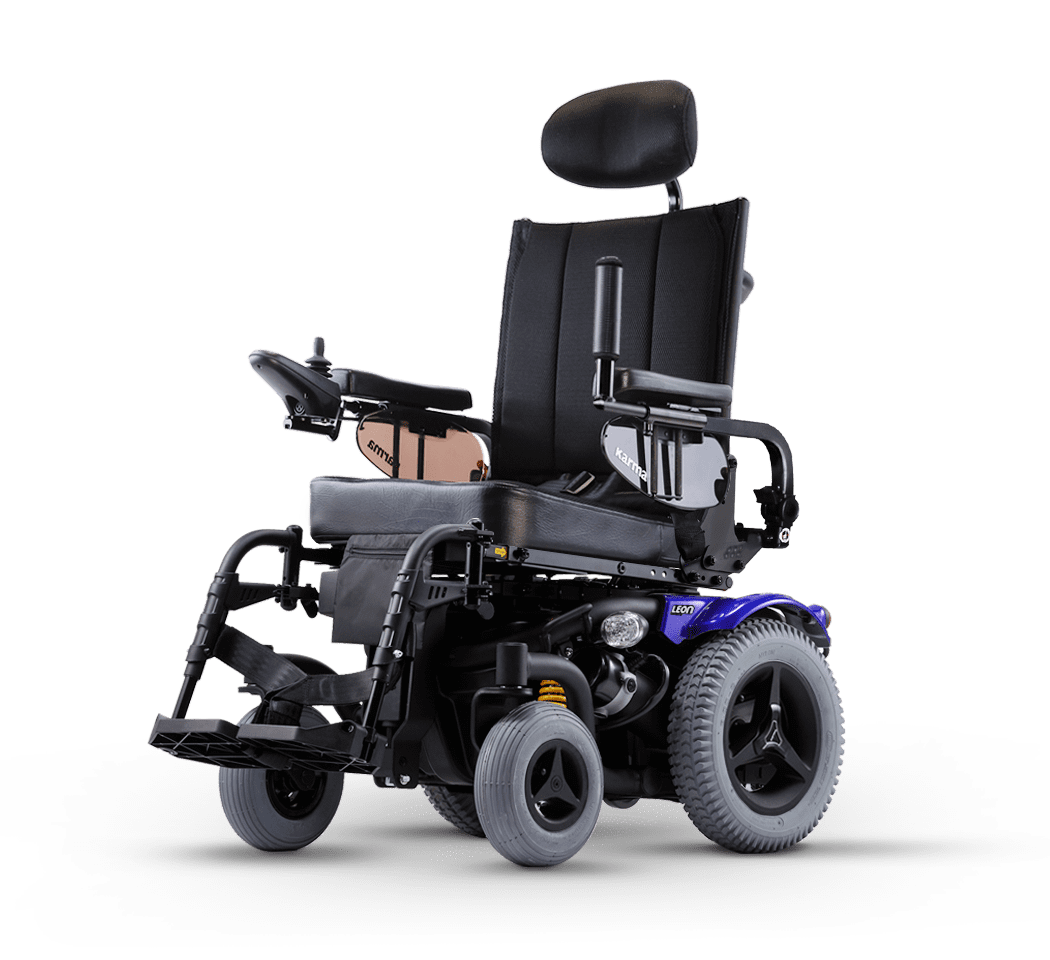

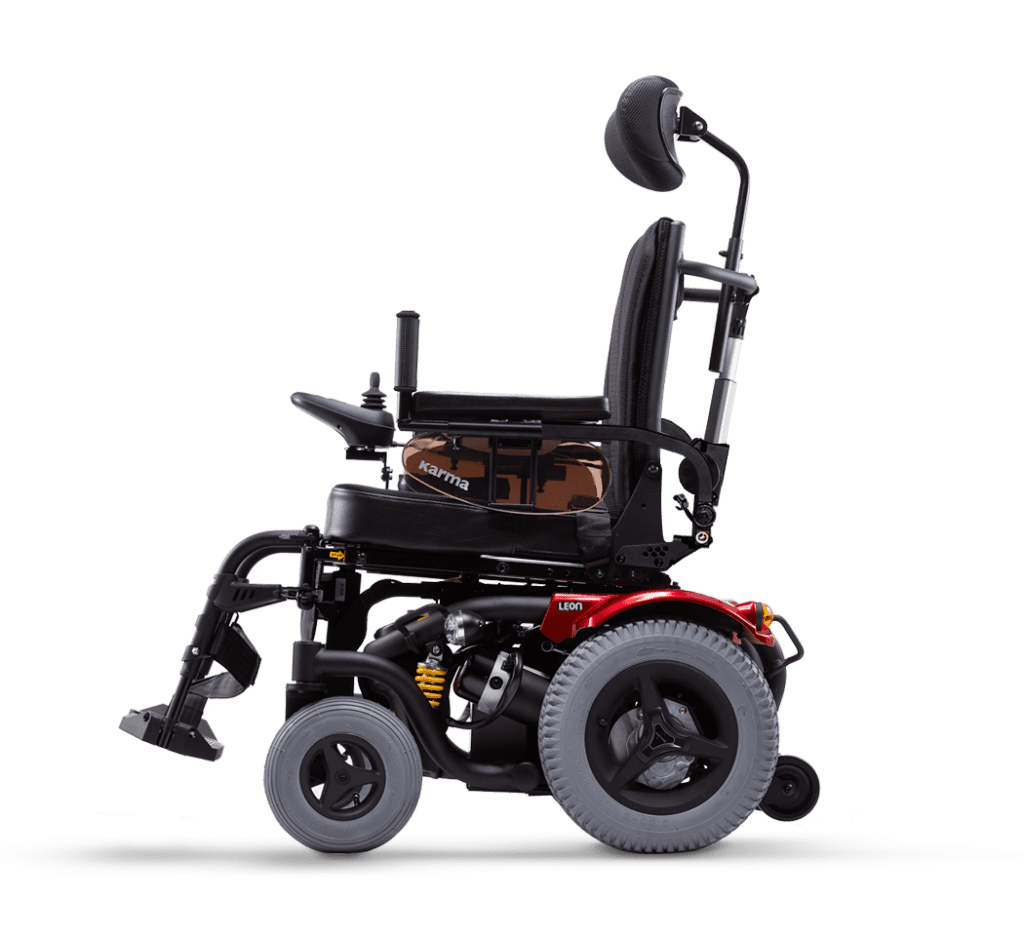

Casing Colors

Specification
Product NameLEON Sling Seat(with pelvic belt)
Seat Width (mm)430480

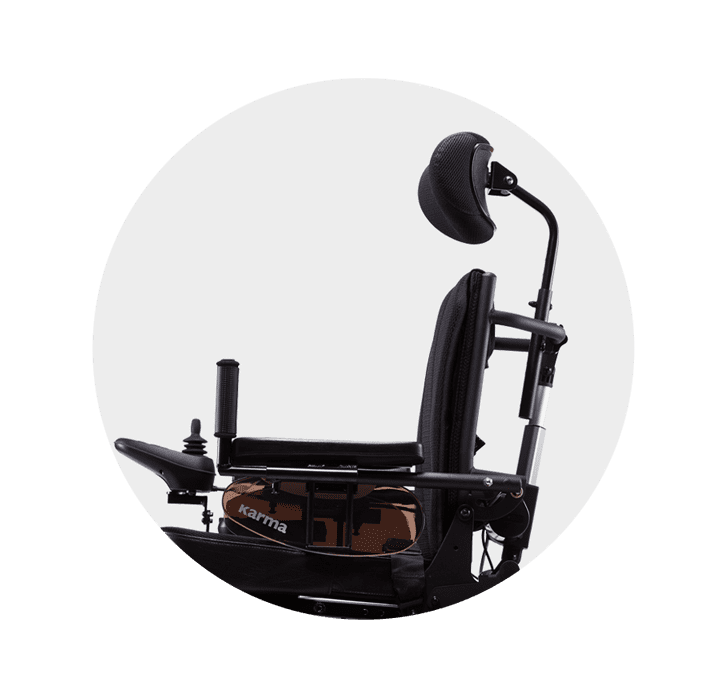

Seat Depth (mm)410/430/460mm(16/17/18inch)
Front Seat Height (mm)550mm(w/cushion)
Backrest
Height (mm)
430
Seat Angle (X°)2 / 5
Back Angle (X°)(-1)~11

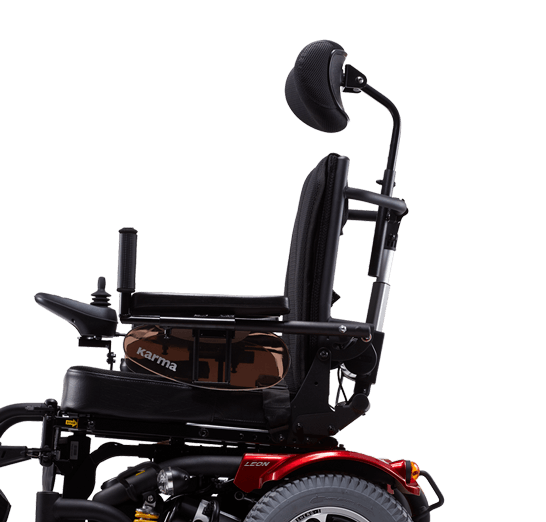

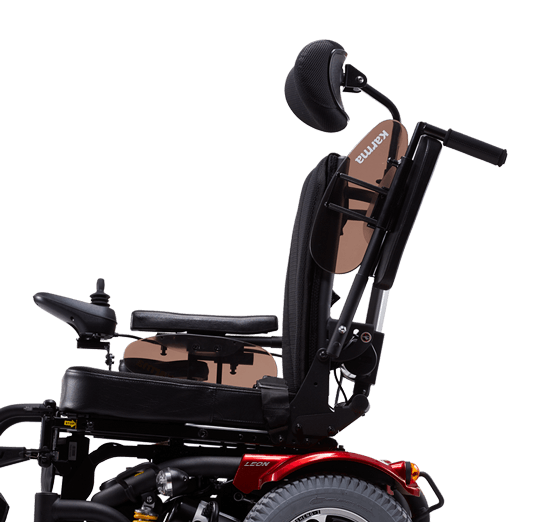

Armrest
Height (mm)
180~280
(the range of adjustable height
is 100mm )

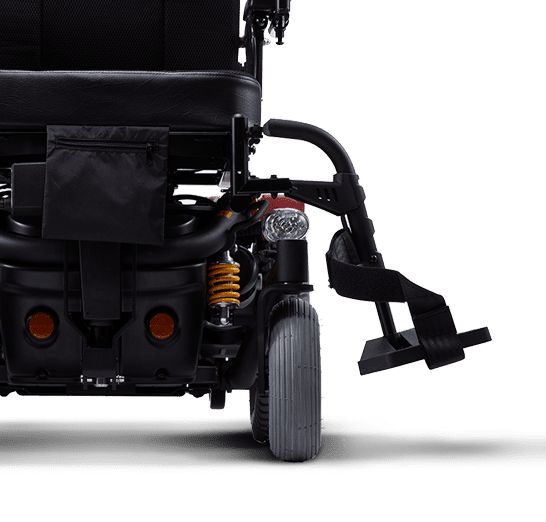

Legrest Length (mm)390~510

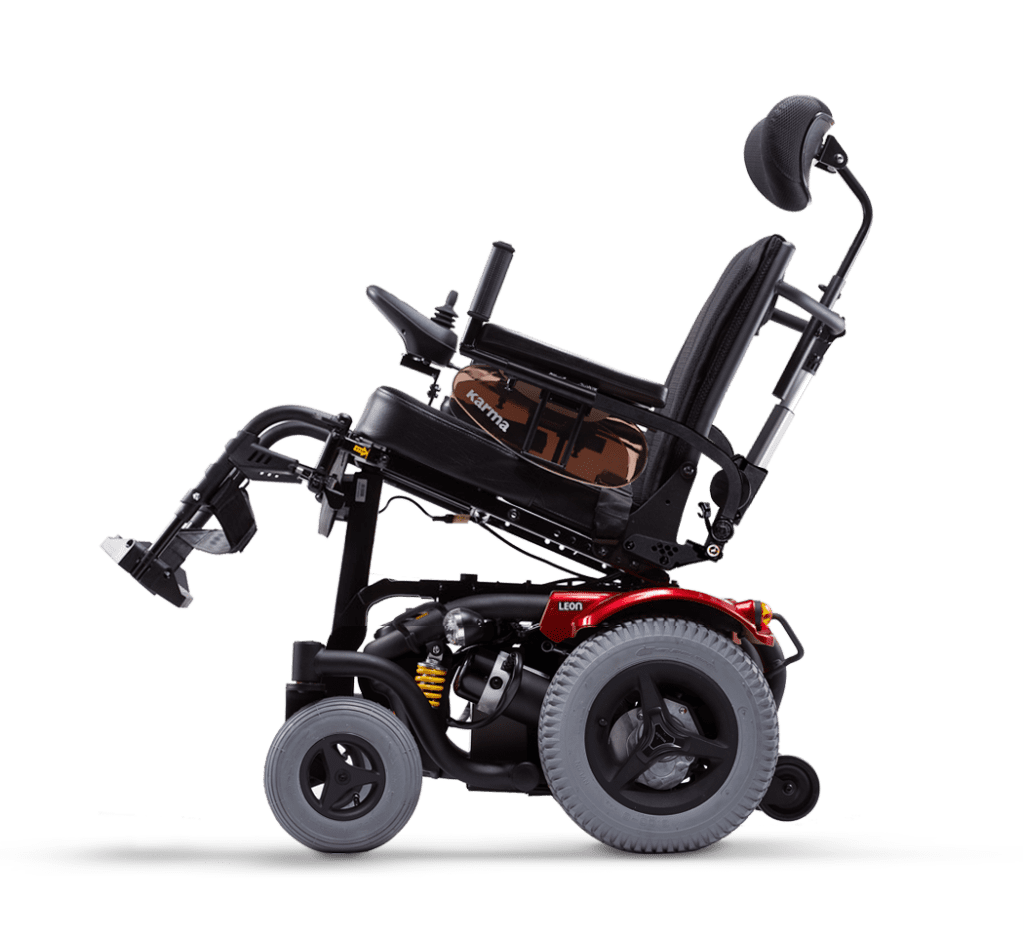

Power Functionspower tilt: 5~23°

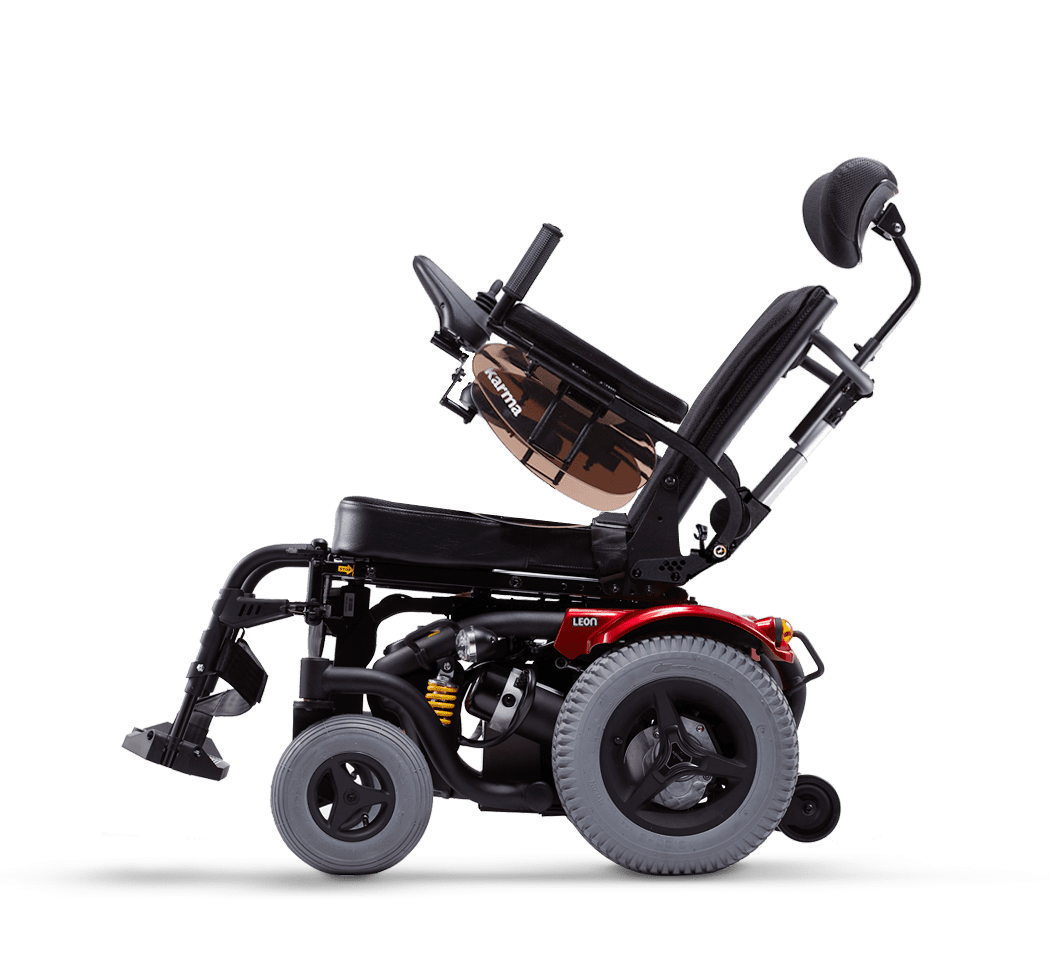

power recline: 0-32°
power tilt: 5~23°
power recline: 0-32°

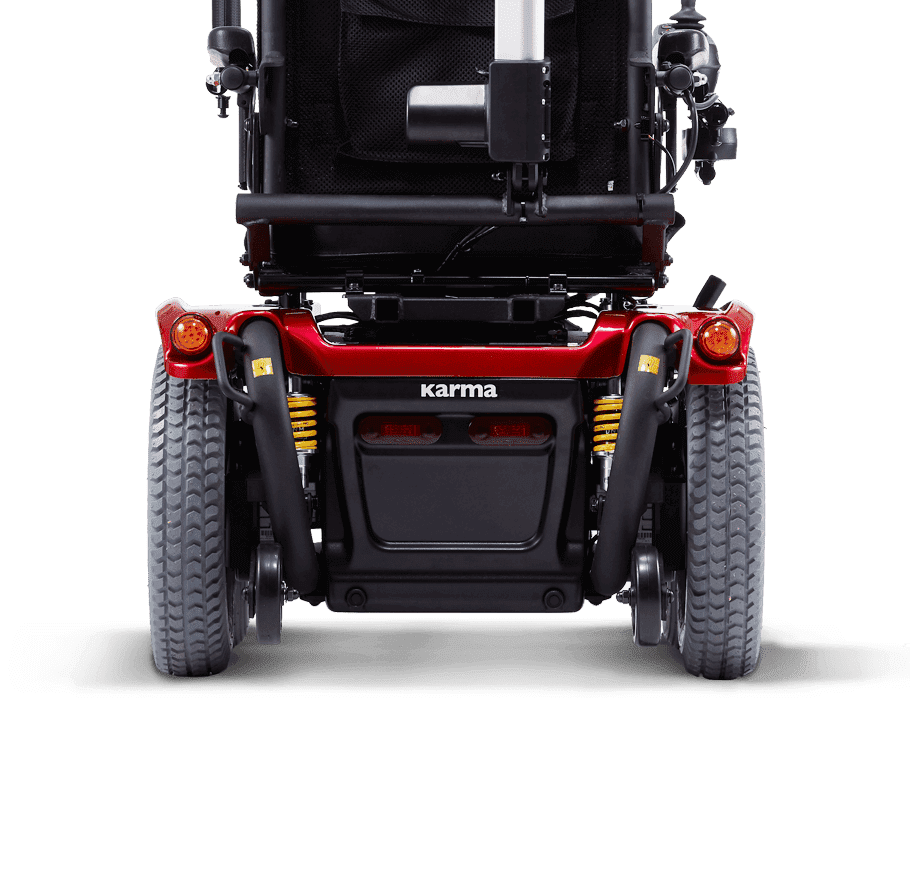

Suspension4 shock absorber
Front/Middle/Rear
Wheel (inch)
9/-/149/-/14
Motor(Nominal Output) DC 450W/4P
Batteries 50Ah * 2pcs (option 60 or 70A*2pcs)
ControllerVR2
Caster Wheel230mm(9”) )/ Pneumatic Tire
Rear Wheel355mm(14”) )/ Pneumatic Tire
Max Safe Slope
Max. Speed (km) 6km/hr (Germany) / 10km/hr/ 12km/hr
Max Driving Range (km)30km(45km by using 80A batteries)
Maximum Obstacle
Climbing Ability (mm)
50
Min. Turning Radius (mm)780
Min. Ground Clearance (mm) 65
Overall
L x W x H (mm)
1060*620*1300(with the headrest)
Max. User Weight (kg)136136
Weight
w/o Batteries (kg)
7878
Weight
w/ Batteries (kg)
108108

Remark :
※ The total weight with batteries will vary depending on the battery used in each local market.
※ Karma reserves the right to modify information herein without further notice.
