Chassis

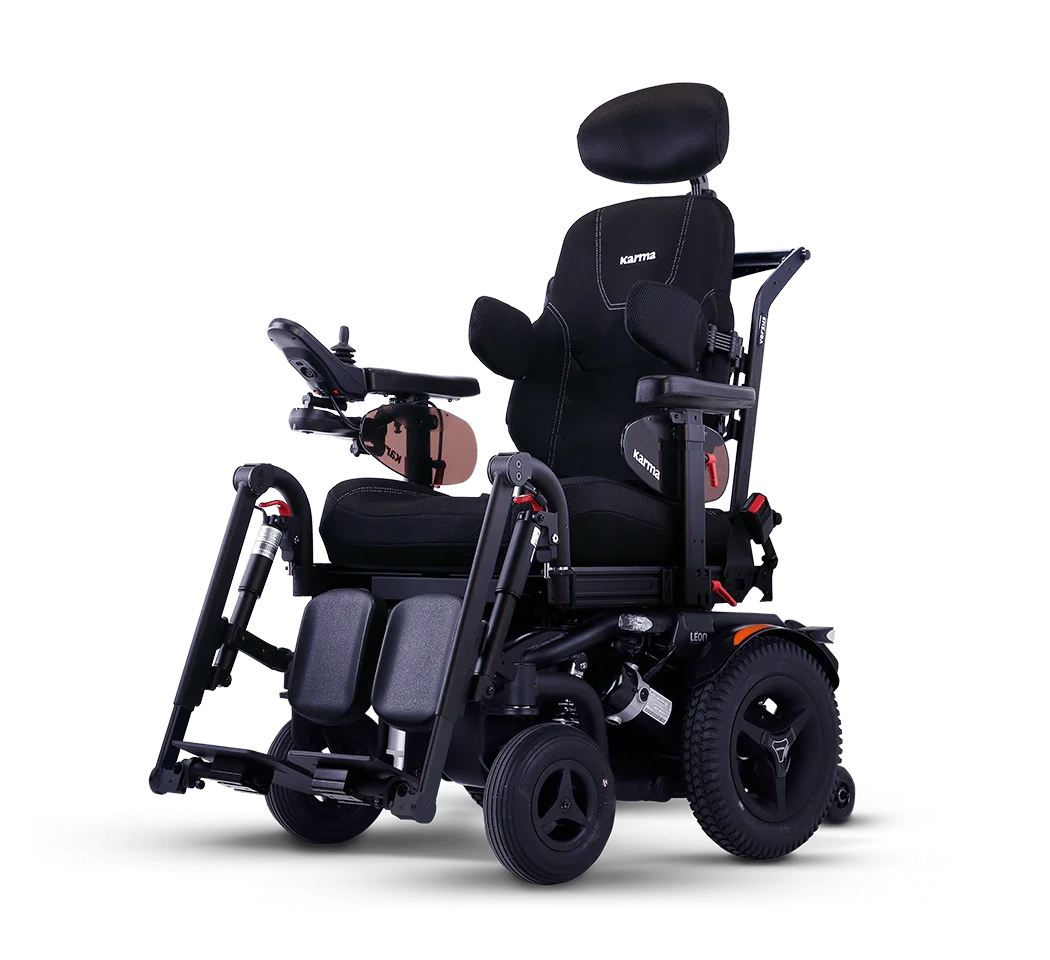

Leon Chassis
Rear-Wheel Drive Performance


Outstanding Outdoor Performance

With a maximum speed of 12 km/h, the powerful motors can overcome rough terrain with incredible control. Optional 80 Ah batteries provide an extended driving range of up to 40 km.

Superior Comfort

Leon chassis is equipped with 4-wheel independent suspension for extra stability when driving over uneven terrain and climbing obstacles.

Universal Parts

The Leon chassis shares 90% of its components between the front- and rear-wheel drive configurations, simplifying maintenance and logistics.

Seating System

Rehab Seat Versus

The Versus seating system offers an extensive range of seat dimension adjustability, integration of up to four power positioning functions, and compatibility with after-market backrests. The capacity to easily upgrade or reconfigure Versus to meet specific user needs makes it a practical and sustainable choice.​

Multiple Power Positioning Functions

300 mm seat lift empowers users to interact with the world around them.

Provides optimal pressure relief.

Provide a passive range of motion to the hips and increase sitting tolerance.

Automatically extend in length as they elevate, easing pressure on the knee to provide comfort and stability.

300 mm seat lift empowers users to interact with the world around them.

Provides optimal pressure relief.

Provide a passive range of motion to the hips and increase sitting tolerance.

Automatically extend in length as they elevate, easing pressure on the knee to provide comfort and stability.

Wide Range of Options and Accessories

Headrests

Lectus Headrest​
Contoured Headrest​
Multi-Adjustable Headrest​

Armpads

​Ship-shape Armpad
Contour Armpad
Lectus Armpad

Armrests

T-Bar Armrest
Flip-Up Armrest, Seat Frame Mount
Flip-Up Armrest, Backrest Mount

Pelvic Positioning Belts

Pelvic Belt, Clip
Pelvic Belt, Auto-Retract

Legrests

Swing-Away Power Elevating Legrests
Swing-Away Manual Elevating Legrests
Legrest, Central Mount, Manual Adjustable
Legrest, Central Mount, Powered Adjustable

Electronics and Controls

R-net / CJSM
VR2
Tray Table Control, Flip-Up Joystick

Supports

Hip Support
Side Support Wedge
Lateral Support
Lumbar Support
Deep Contour Side Panels
Calf Supports

Other Accessories

Reflector
Backpack Hooks
Tray Table
Parallel Swing Away Controller Bracket

Side Frame Colors

Product Model
LENR1.1-VRS
Seating SystemMinimumMaximum
Nominal seat width (mm)* with Lectus cushion420 / 470 / 520
Nominal seat depth (mm)** with Lectus cushion450 / 525
Backrest height without cushion (mm)605845
Backrest height with cushion (mm)525765
Headrest height above seat (mm)700930
Armrest to seat distance without cushion (mm)260390
Armrest to seat distance with cushion (mm)160290
Front location of armrest structure (mm)0600
Seat surface height at front edge without cushion (mm)460760
Seat surface height at front edge with cushion (mm)560860
Footrest to seat distance without cushion (mm)230400
Footrest to seat distance with cushion (mm)330500
Effective seat width (mm)340665
Effective seat depth (mm) 150550
Seat plane angle (X°) (fixed angle)4 / 6.5 / 9 / 11.5 / 14 / 16.5
Seat plane angle (X°) (power tilt)449
Backrest angle (X°)045
Seat to backrest angle (X°) (power recline)90135
Seat to backrest angle (X°) (manual recline)75115
Leg to seat angle (X°)105 185
Driving CharacteristicsMinimumMaximum
Drive wheel size 3.00 -8 (14")
Front caster size 2.80/2.50 -4 (9")
Overall length with legrest (mm)12001550
Overall width (mm) 620 825
Overall height (mm) 12201755
Folded length (mm) 1060
Folded width (mm)620825
Folded height (mm) 660
Total mass (kg)182 (80Ah)
Total mass without batteries (kg) 128
Mass of the heaviest part (kg)115.6
Maximum user weight (kg)136
Drive range (km)³35.6 (80AH)
Maximum speed forward (km/h)6/10/12
Minimum braking distance from max speed (mm)2600-
Obstacle climbing (mm)-50
Ground clearance (mm)60-
Minimum turning radius (mm)1040
Minimum turning radius without user (mm)950
Reversing width (mm)1350
Static stability downhill (X°)15
Static stability uphill (X°)15
Static stability sideways (X°)16
Dynamic stability uphill (X°)6
Ability to climb rated slope (X°)⁴12
Electrical System
ControllerVR2/R-net (Optional)
Motor power (W)450
Battery capacity (Ah)80 x 2
Charger output current (A)6 / 8
Battery Compartment (L x W x H) (mm)350 x 270 x 240

Manual ver.02


* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range is estimated based on the following conditions: 20℃~35℃, 136 kg occupant, brand new fully charged batteries and driving on the flat road.
**** Ability to climb rated slope is estimated based on the following conditions: 20℃~35℃, 136 kg occupant, and brand new fully charged batteries.
– The actual product specifications differ from the data in the table by ±10 mm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.
