Specification

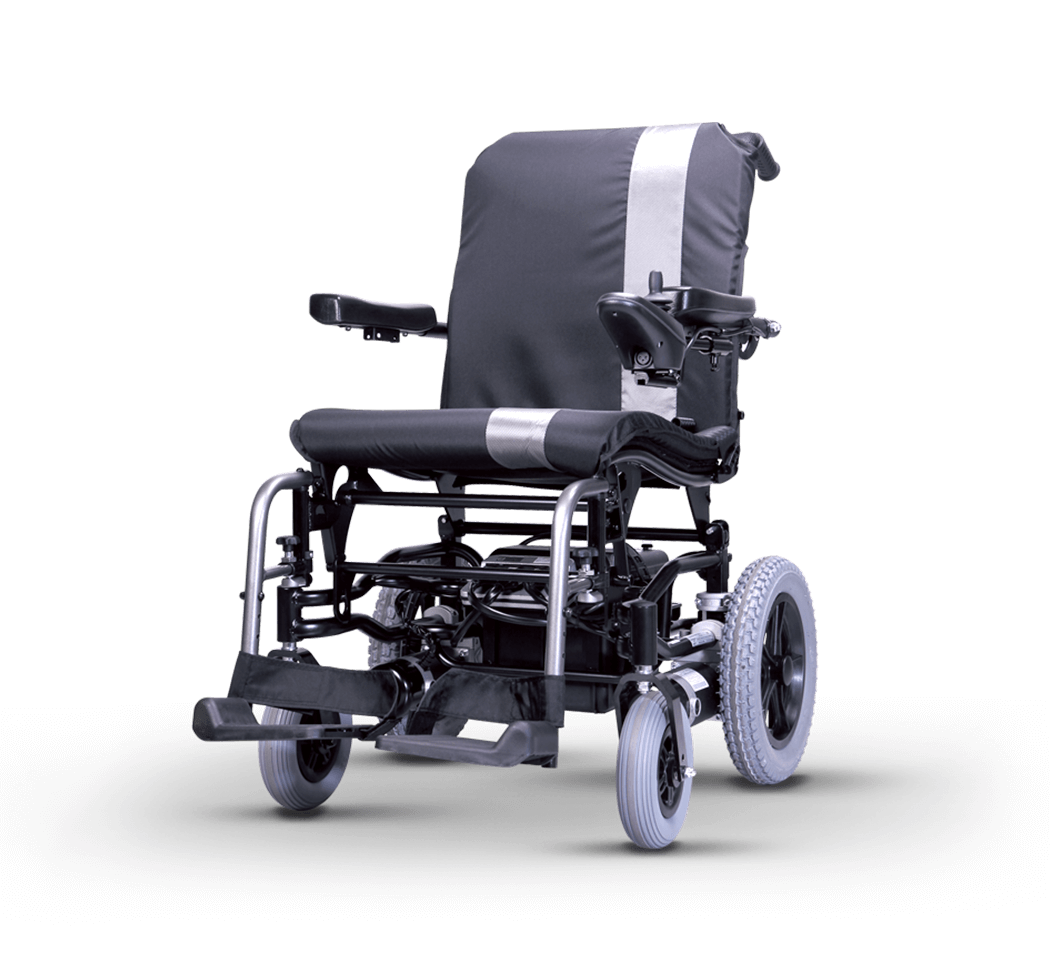

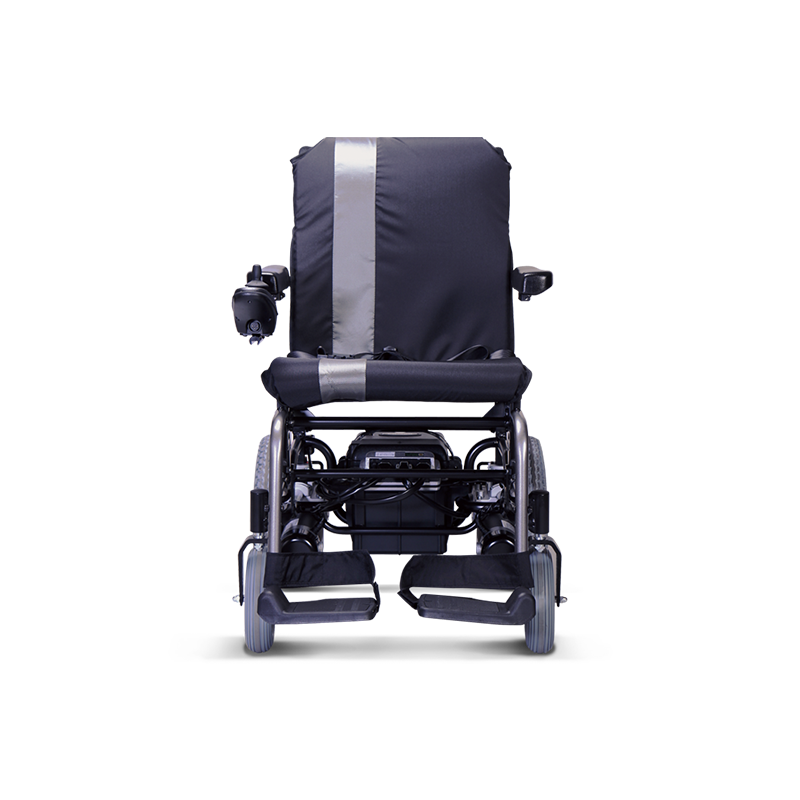

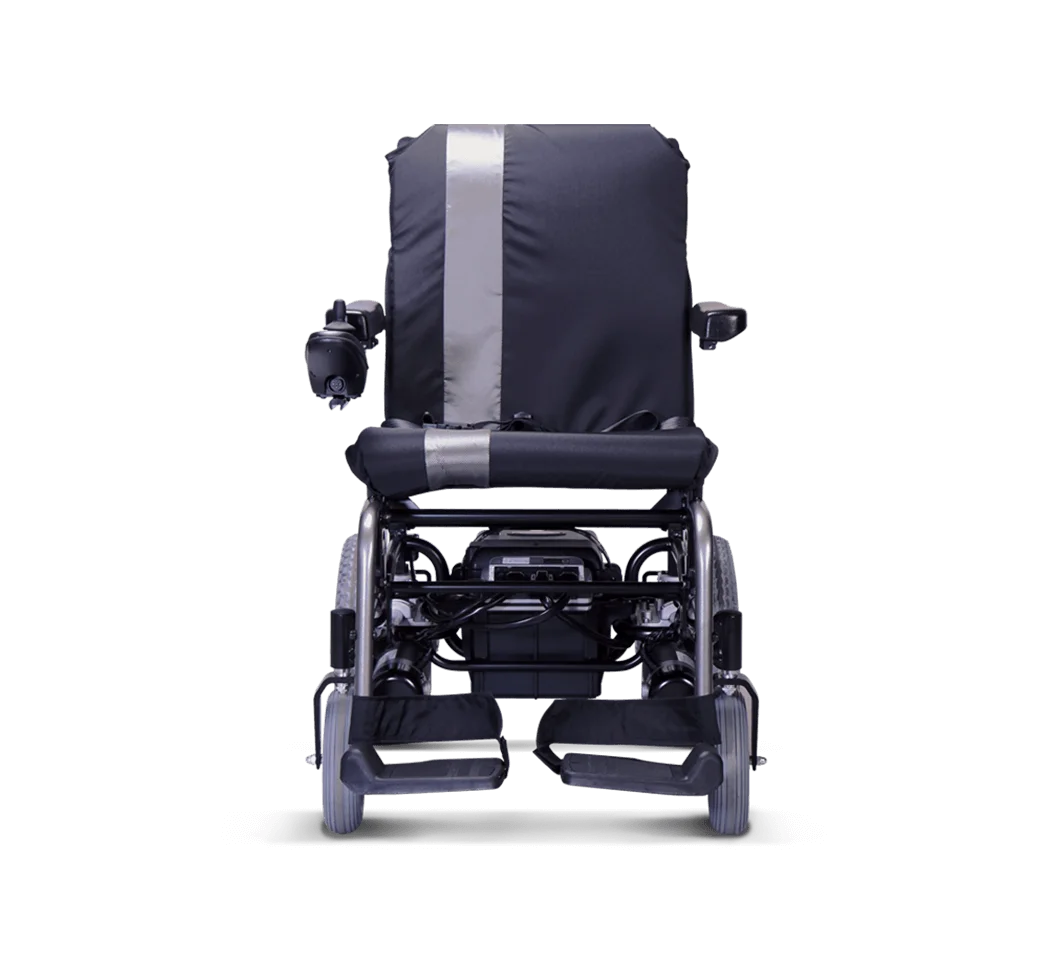

| Product Name | KP-10.3S(36Ah) |
| Seat Width(mm) | 440 |
| Seat Depth(mm) | 430 |
| Front Seat Height(mm) | 540 |
| Backrest Height(mm) | 480 |

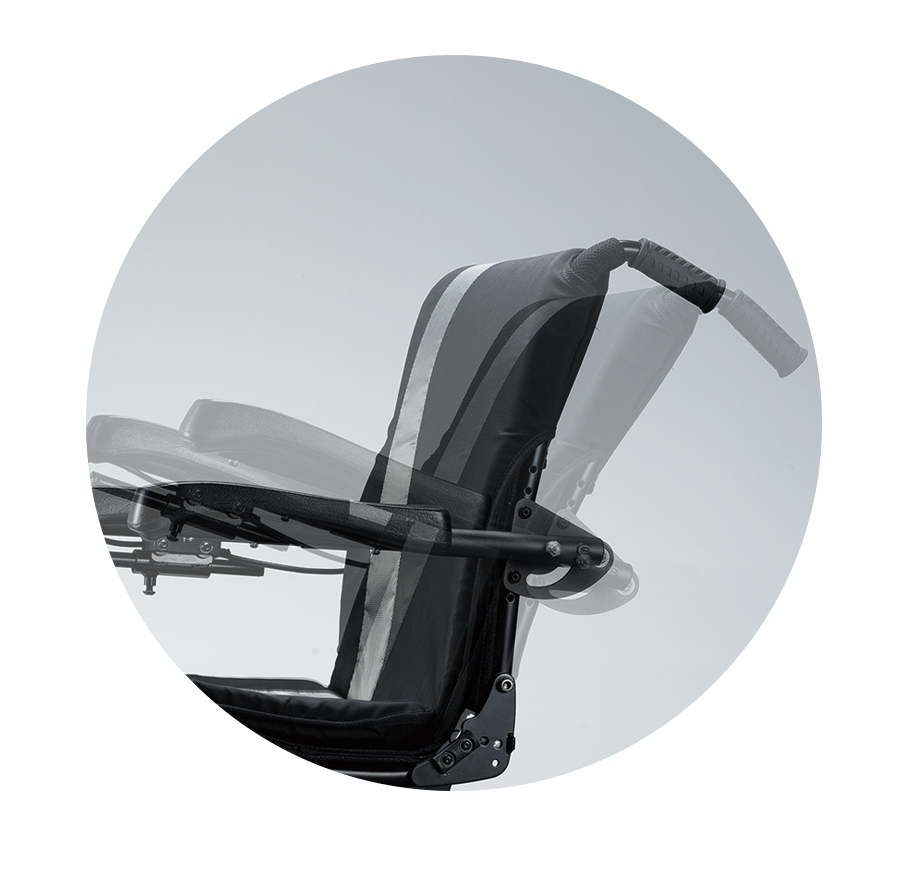

| Back Angle(X°) | 5 |

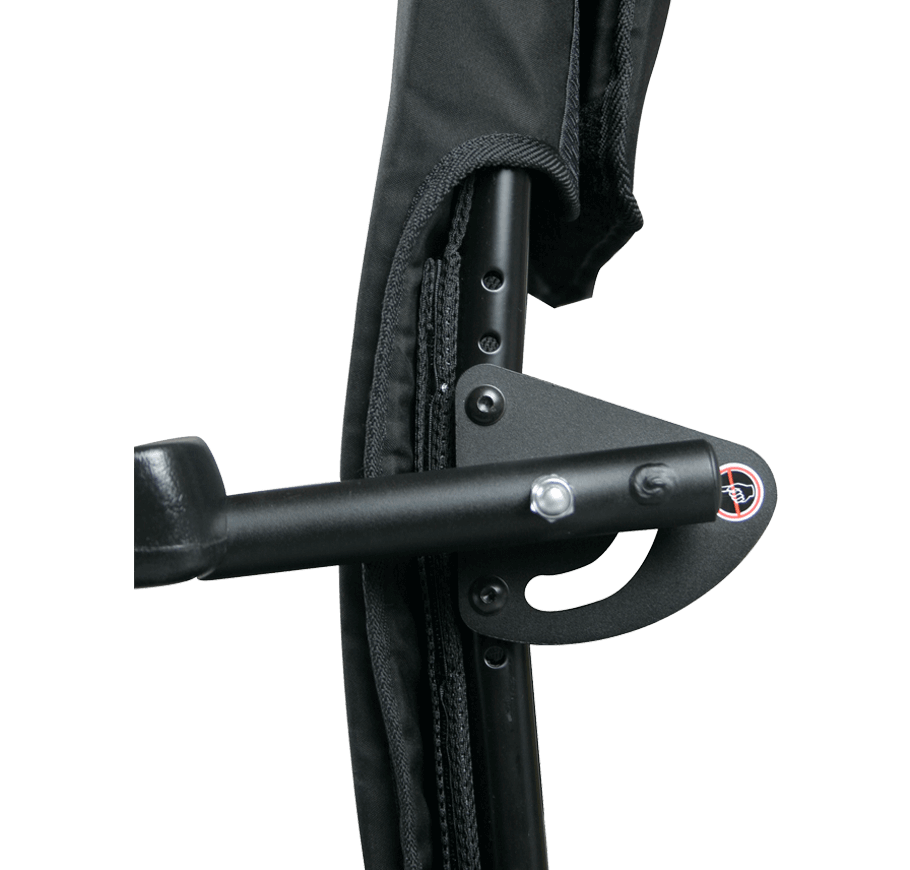

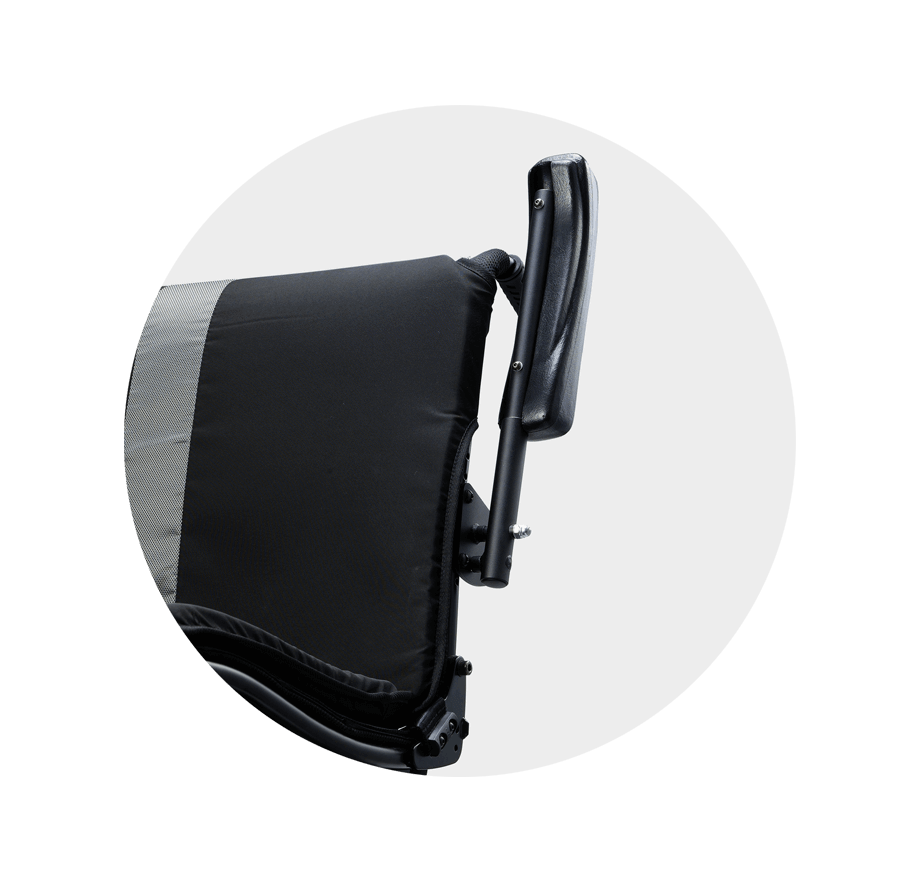

| Armrest Height(mm) | 210~270 |

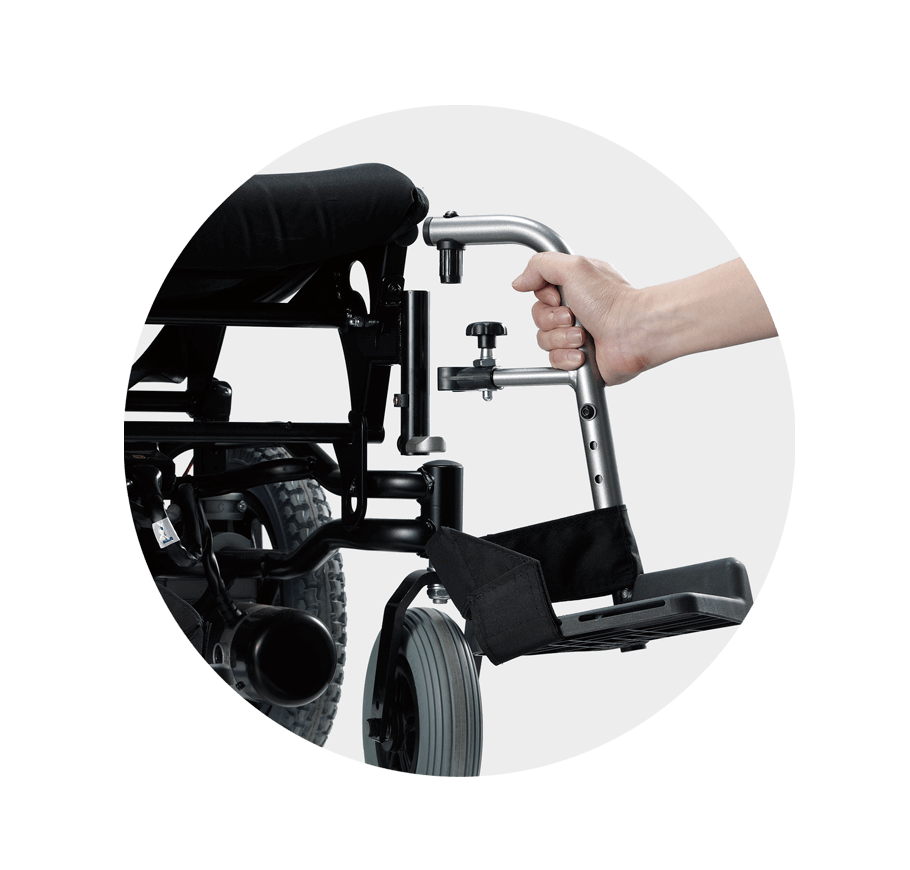

| Legrest Length(mm) | 380~460 |
| Front/Middle/Rear Wheel (inch) | 8/-/12 |
| Controller | new VR2 |
| Motor (W) | 200 |
| Battery (Ah) | 22*2 |
| Min. Turning Radius(mm) | 750 |
| Min. Ground Clearance(mm) | 90 |
| Max Safe Slope | 8° |
| Max. Obstacle Height(mm) | 30 |
| Max. Speed(km) | 6 |
| Max Driving Range (km) | 19 |
| Max. User Weight(kg) | 120 |
| Weight w/ Batteries (kg) | 61 |
| Weight w/o Batteries (kg) | 37 |
| Overall L x W x H (mm) | 1030*620*940 |
Remark : Karma reserves the right to modify information herein without further notice.
