How to prepare Ergo Stand KP-80 power wheelchair

Frame Color

Specification
Product NameKP-80KP-80KP-80
Seat Width(mm)400440480
Seat Depth(mm)440470500
Front Seat Height(mm)540540540
Backrest
Height(mm)
440440440

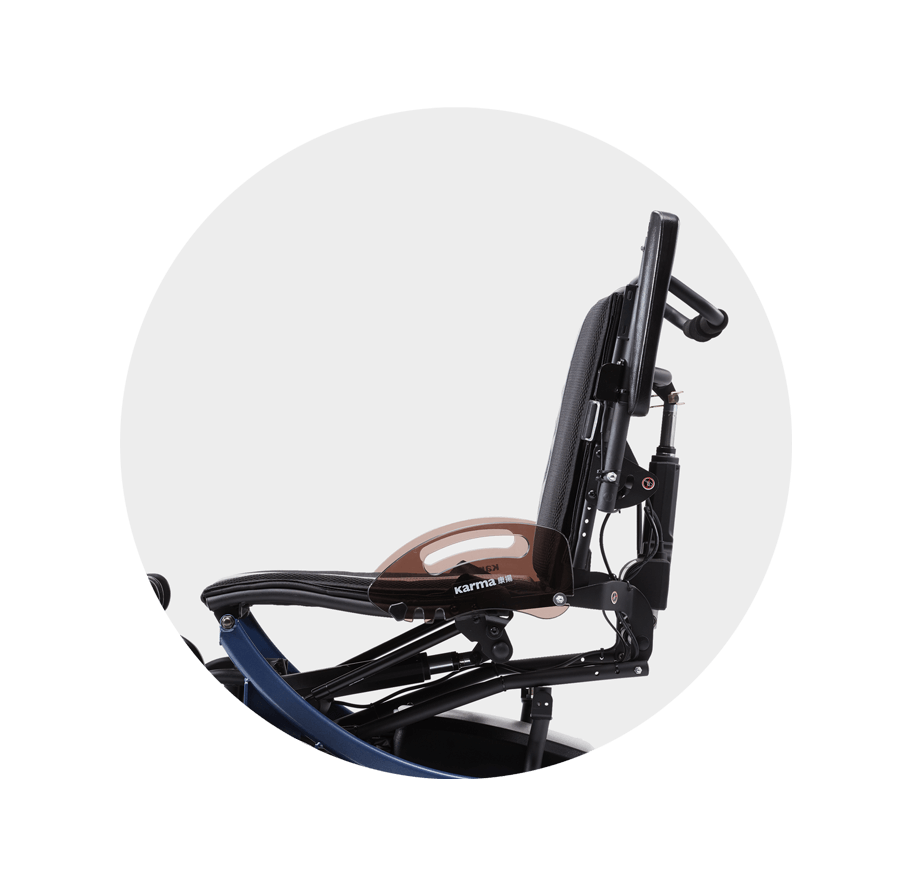

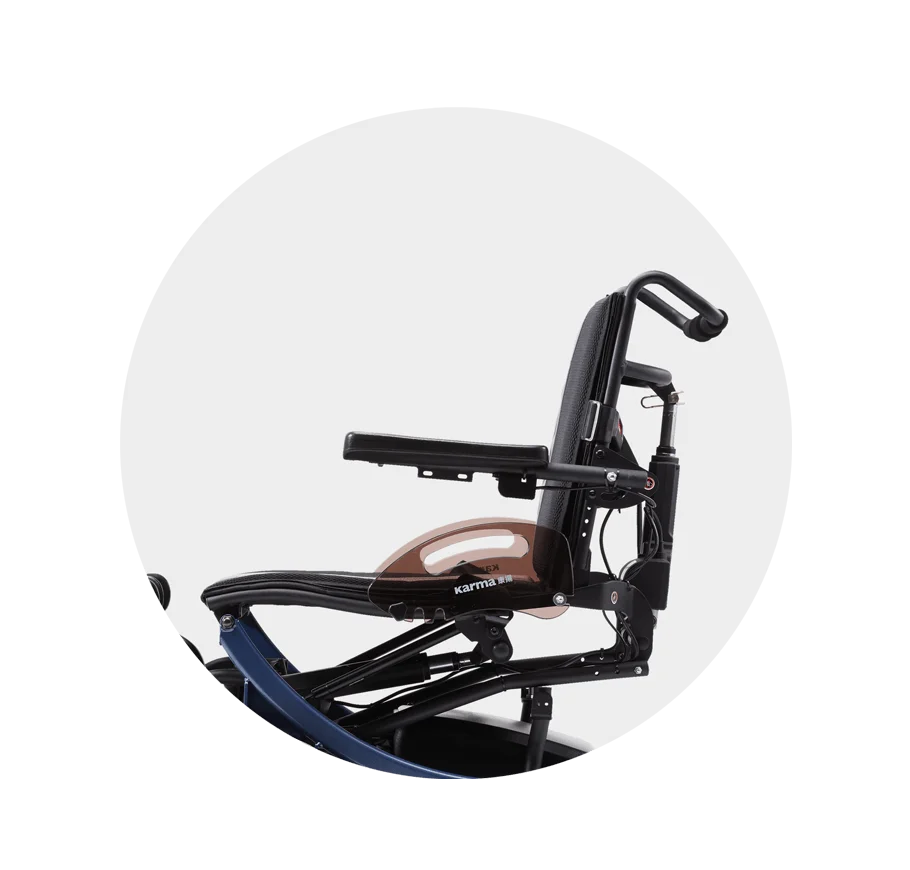

Armrest
Height(mm)
200~280200~280200~280
Legrest
Length(mm)
380~440380~440380~440
Power Funtionspower recline: (-10)-30°power recline: (-10)-30°power recline: (-10)-30°

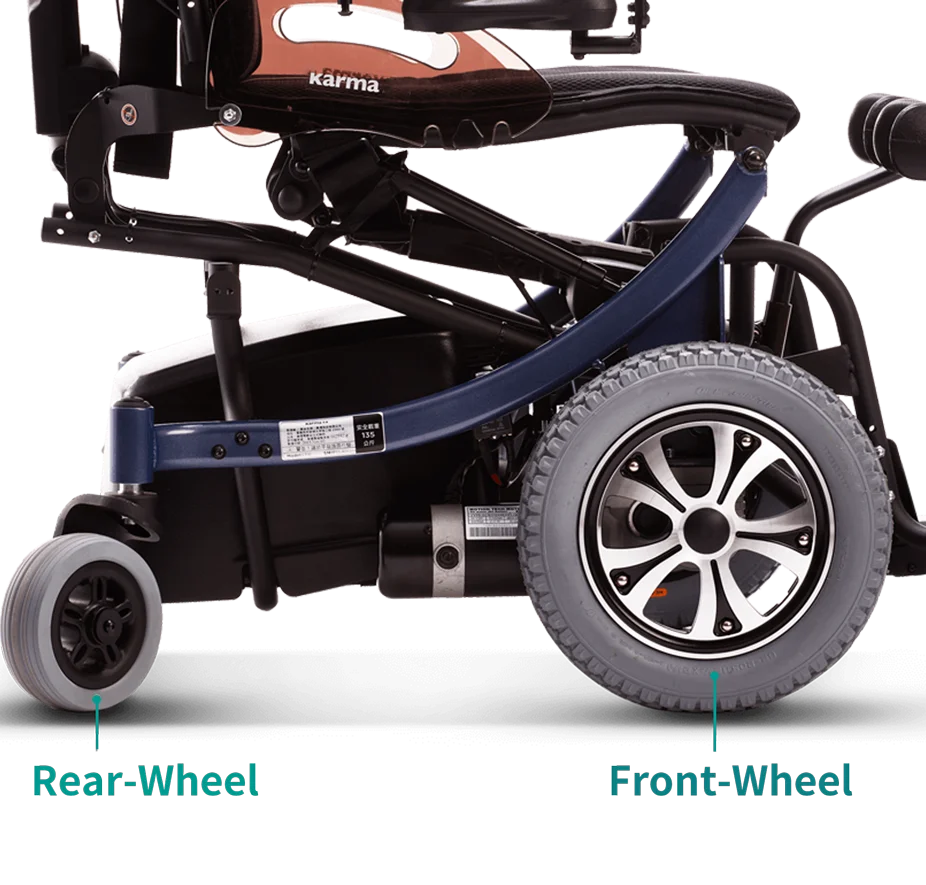

Front/Middle/Rear
Wheel (inch)
12/-/612/-/612/-/6
ControllerVR2VR2VR2
Motor (W)300300300
Battery (Ah)36/50 *2 36/50 *2 36/50 *2
Min. Turning Radius(mm)670670670
Min. Ground Clearance(mm) 656565
Max Safe Slope10°10°10°
Max. Obstacle Height(mm) 505050
Max. Speed(km) 999
Max Driving Range (km)28(50Ah)28(50Ah)28(50Ah)
Max. User Weight(kg)135135135
Weight
w/ Batteries (kg)
89 (50Ah)89 (50Ah)89 (50Ah)
Weight
w/o Batteries (kg)
575757
Overall
L x W x H (mm)
1020*630*9801020*630*9801020*630*980

Remark : Karma reserves the right to modify information herein without further notice.
