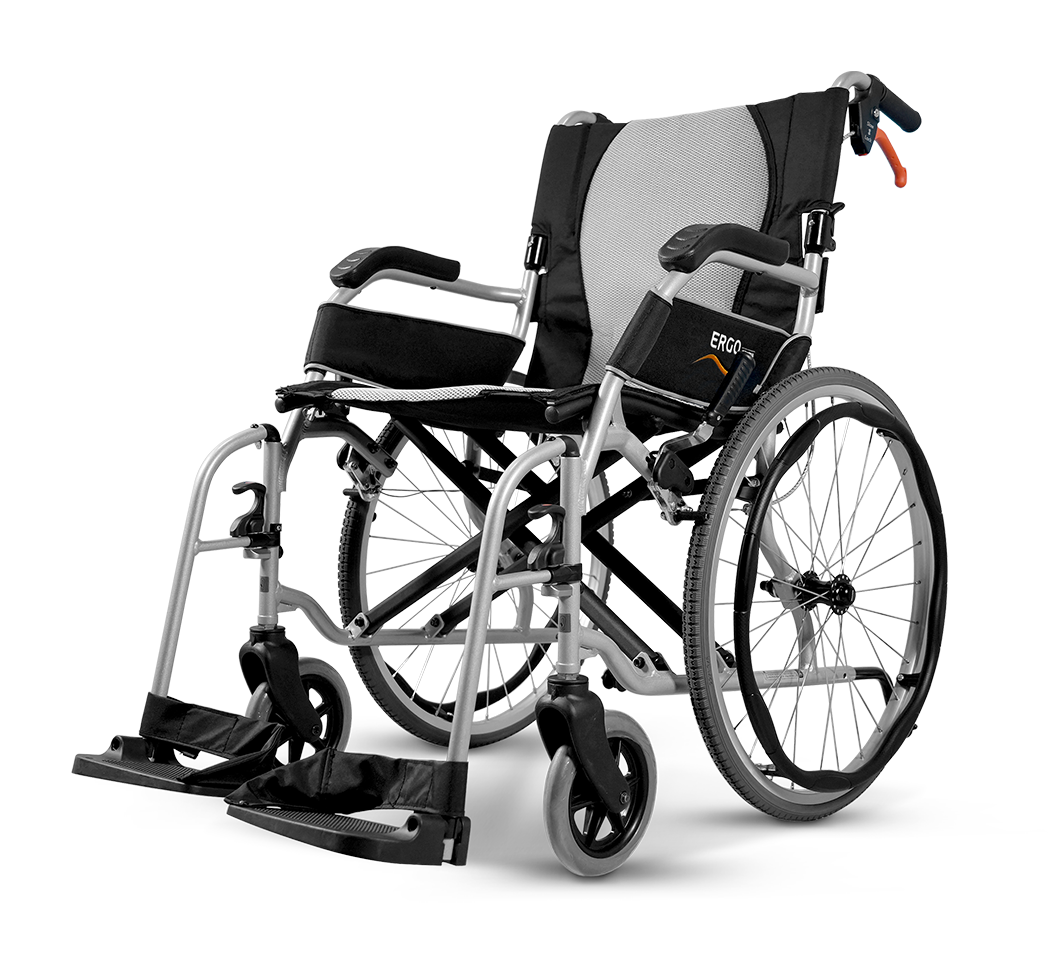

Introducing the upgraded Ergo Lite 2, now available with expanded options for increased seat width, seat-to-floor height, and weight capacity, catering to more users without compromising on its renowned lightweight design.
Karma’s Push & Pull brake system, which allows attendants to safely park the wheelchair without bending down to reach the wheel locks.Allow the user to get closer to tables.
Allows for easy transfer, on and off the wheelchair and detaches with no tools required.
Convenient and suitable for elderly caregivers to take care of elderly users. Easy to carry out and fold for storage.
Watch the video

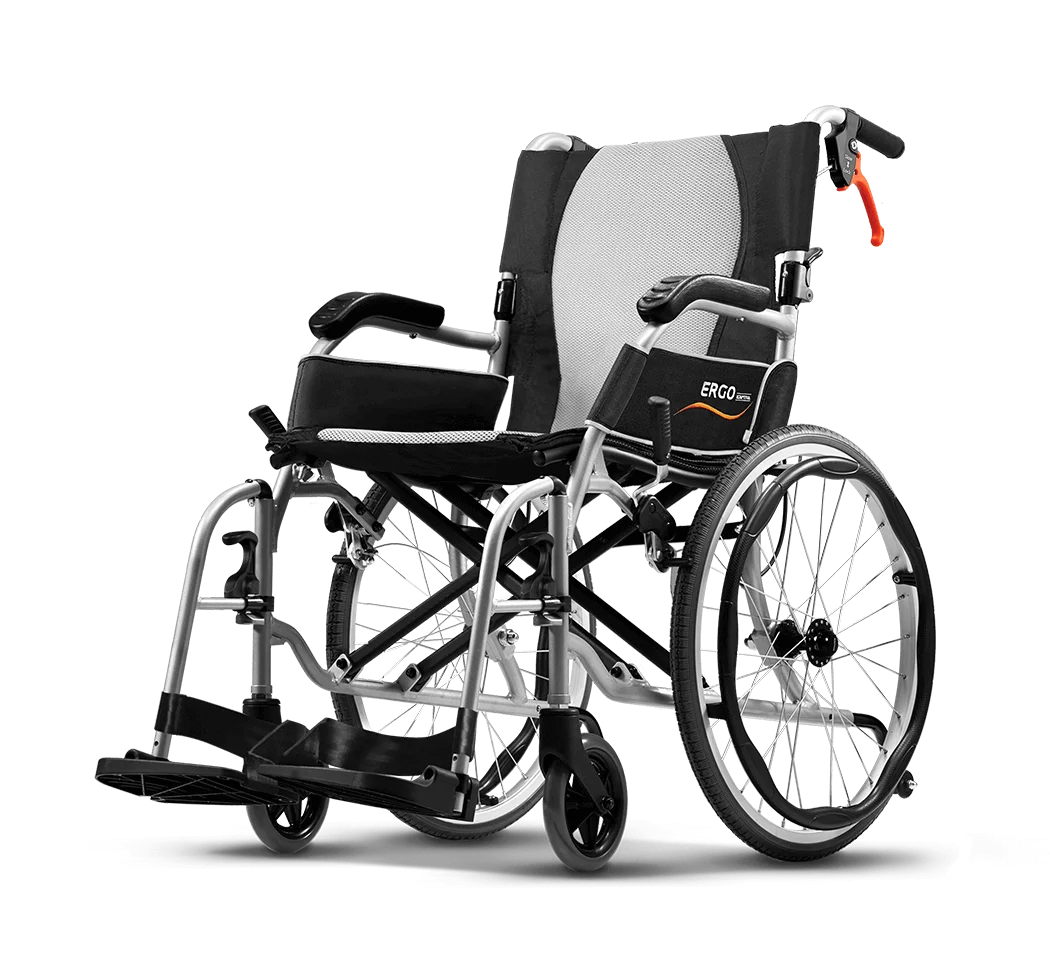

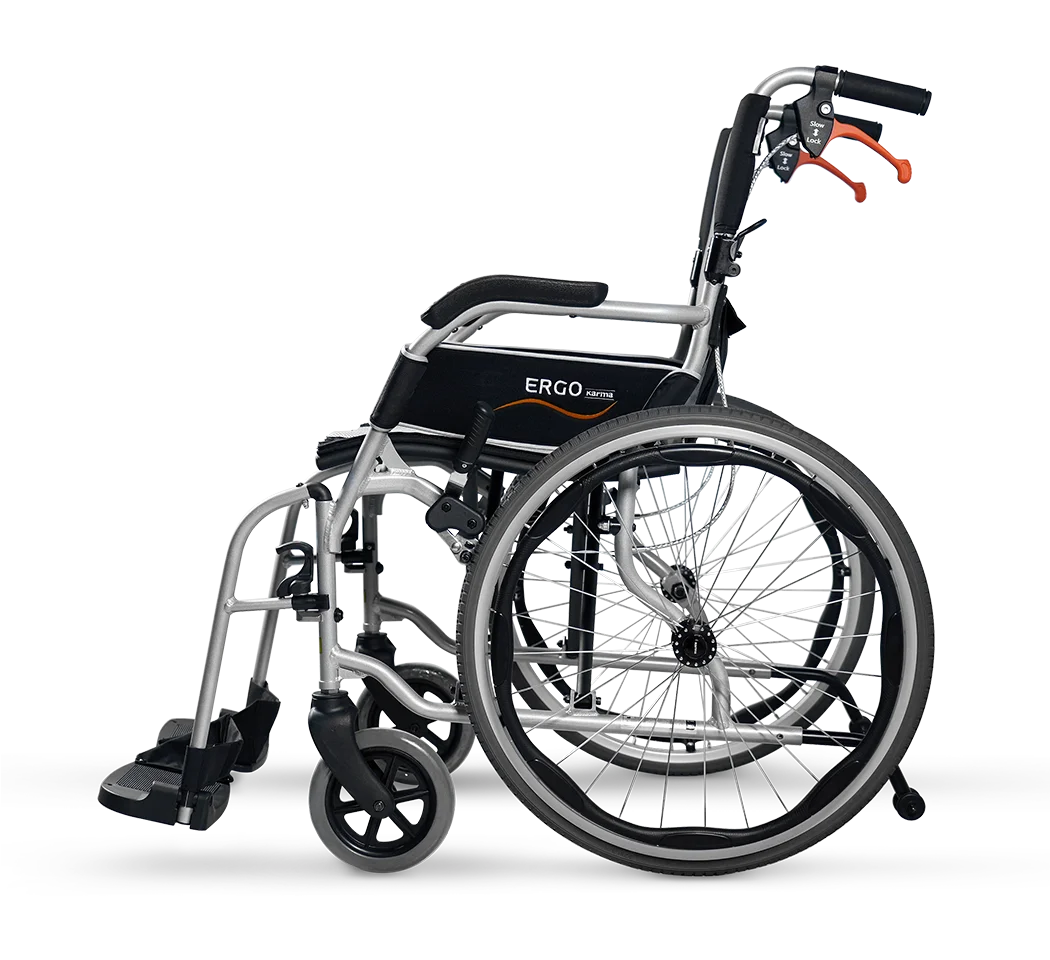

Choose between the attendant-propelled wheelchair with 14″ rear wheels or the self-propelled wheelchair with 20″ rear wheels.
Specification_____
For when a wheelchair user can walk but not far, Ergo Lite’s S-Ergo seating system is comfortable to sit even after a long time.
For the carer who cannot carry a lot, lighten the load by using a lightweight wheelchair during day to day activities.
Ergo Lite is the perfect travel companion. Just fold the lightweight wheelchair and put it in the trunk of your car!
| Product Model | Ergo Lite 2 (KM-2512TL) | |||||
| Nominal seat width (mm/in)* | 410/16 | 410/16 | 460/18 | 460/18 | 510 / 20 | 510 / 20 |
| Nominal seat depth (mm/in)** | 435/17 | 435/17 | 435/17 | 435/17 | 435 / 17 | 435 / 17 |
| Front caster / Rear wheel size (in) | 7/14 | 7/22 | 7/14 | 7/22 | 7 / 14 | 7 / 22 |
| Backrest height (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| Headrest height above seat (mm) | N/A | N/A | N/A | N/A | N/A | N/A |
| Armrest to seat distance (mm) | 210 | 210 | 210 | 210 | 210 | 210 |
| Front location of armrest structure (mm) | 325 | 325 | 325 | 325 | 325 | 325 |
| Seat surface height at front edge (mm) | 510 | 510 | 510 | 510 | 510 | 510 |
| Footrest to seat distance (mm) | 410-460 | 410-460 | 410-460 | 410-460 | 410-460 | 410-460 |
| Effective seat width (mm) | 370 | 370 | 420 | 420 | 470 | 470 |
| Effective seat depth (mm) | 435 | 435 | 435 | 435 | 435 | 435 |
| Seat plane angle (X°) | 6 | 6 | 6 | 6 | 6 | 6 |
| Backrest angle (X°) | 15 | 15 | 15 | 15 | 15 | 15 |
| Seat to backrest angle (X°) | 98 | 98 | 98 | 98 | 98 | 98 |
| Leg to seat angle (X°) | 100 | 100 | 100 | 100 | 100 | 100 |
| Overall length with legrest (mm) | 990–1005 | 990–1005 | 1015–1030 | 1015–1030 | 1015–1030 | 1015–1030 |
| Overall width (mm) | 565 | 575 | 615 | 625 | 665 | 700 |
| Overall height (mm) | 950 | 950 | 950 | 950 | 950 | 950 |
| Folded length (mm) | 720 (Q)*** 647 (F)**** | 720 (Q) 755 (F) | 720 (Q) 647 (F) | 720 (Q) 755 (F) | 720 (Q) 647 (F) | 720 (Q) 755 (F) |
| Folded width (mm) | 230 (Q) 240 (F) | 260 (Q) 280 (F) | 230 (Q) 240 (F) | 260 (Q) 280 (F) | 260 (Q) 270 (F) | 260 (Q) 280 (F) |
| Folded height (mm) | 690 (Q) 745 (F) | 690 (Q) 745 (F) | 725 (Q) 745 (F) | 725 (Q) 745 (F) | 760 (Q) 785 (F) | 760 (Q) 785 (F) |
| Total mass (kg) | 9.9 (Q) 9.8 (F) | 11.2 (Q) 11.1 (F) | 10.1 (Q) 9.9 (F) | 11.4 (Q) 11.3 (F) | 10.4 (Q) 10.3 (F) | 11.9 (Q) 11.8 (F) |
| Mass of the heaviest part (kg) | 6.9 (Q) 8.7 (F) | 7.1 (Q) 10.1 (F) | 7.1 (Q) 8.8 (F) | 7.2 (Q) 10.2 (F) | 7.4 (Q) 9.2 (F) | 7.7 (Q) 10.7 (F) |
| Maximum user weight (kg) | 115 | 115 | 115 | 115 | 115 | 115 |
| Minimum turning radius (mm) | 915 | 915 | 930 | 930 | 930 | 930 |
| Minimum turning radius without user (mm) | 740 | 740 | 780 | 780 | 800 | 800 |
| Pivot width (mm) | 1050 | 1050 | 1120 | 1120 | 1160 | 1160 |
| Static stability downhill (X°) | 12 | 12 | 12 | 12 | 12 | 12 |
| Static stability uphill (X°) | 14 | 14 | 14 | 14 | 14 | 14 |
| Static stability sideways (X°) | 11 | 11 | 11 | 11 | 14 | 14 |
| Handrim diameter (mm) | N/A | 470 | N/A | 470 | N/A | 470 |
| Horizontal location of axle (mm) | 16 | 16 | 16 | 16 | 16 | 16 |
* Nominal seat width is measured the width of seat cushion at 120 mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Q = Quick-release axles
**** F = Fixed axles
– The actual product specifications differ from the data in the table by ±10 mm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice. configurations.
– Karma reserves the right to modify information herein without further notice.
