Frame Colors

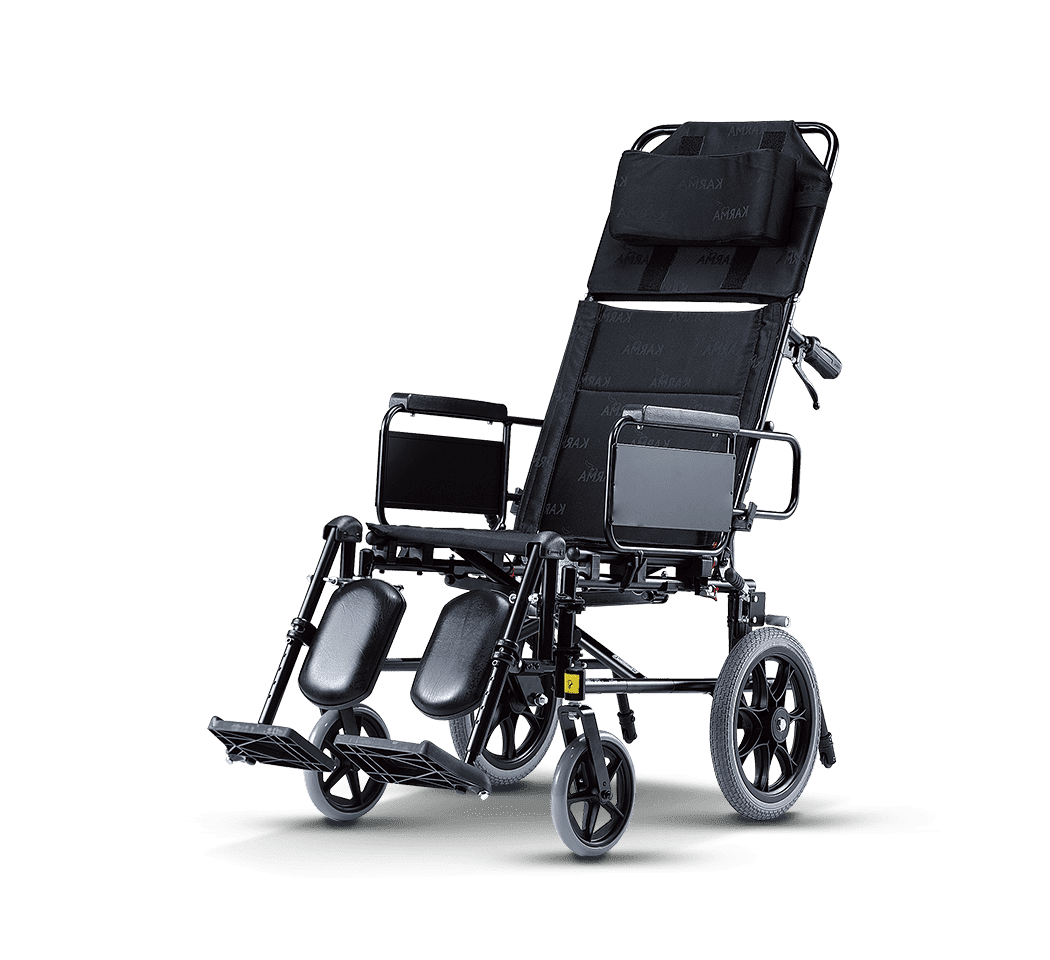

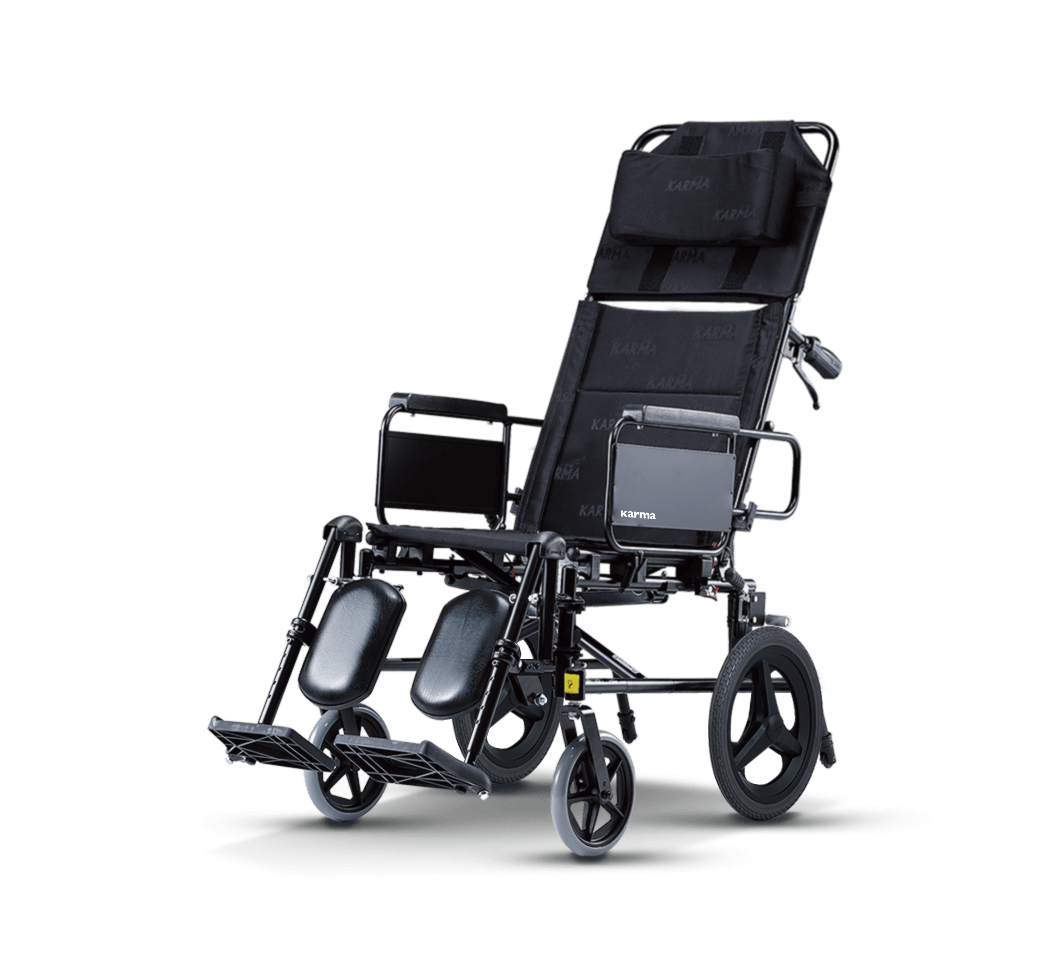

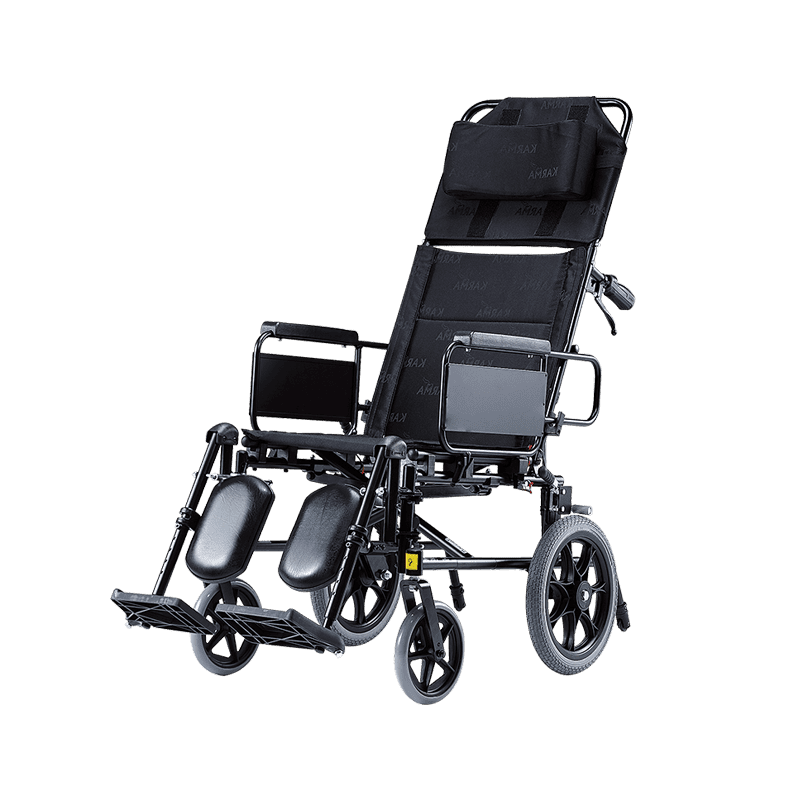

Product ModeKM-5000
Nominal seat width (mm/in)*425 / 17460 / 18 425 / 17460 / 18
Nominal seat depth (mm/in)**420 / 17470 / 18420 / 17470 / 18
Front caster / Rear wheel size (in)8 / 148 / 148 / 24 8 / 24
Backrest height (mm)450450450450
Headrest height above seat (mm)630 ~ 825630 ~ 825650 ~ 770650 ~ 770
Armrest to seat distance (mm) 235 235230230
Front location of armrest structure
(mm)
400400380380
Seat surface height at front edge (mm)500500500500

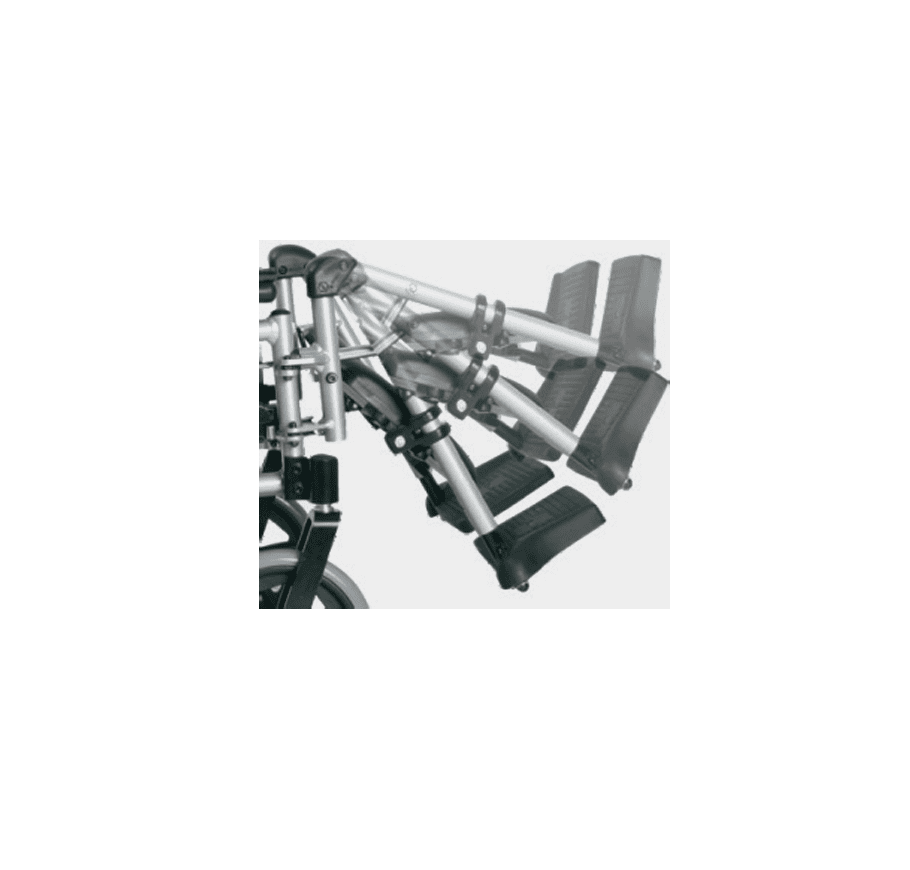

Footrest to seat distance (mm)450 ~ 550450 ~ 550375 ~ 425375 ~ 425
Effective seat width (mm)490500
490500
Effective seat depth (mm)430520430520
Seat plane angle (X°)7777
Backrest angle (X°)7 ~ 767 ~ 765 ~ 765 ~ 76
Seat to backrest angle (X°)90 ~ 15890 ~ 15888 ~ 15888 ~ 158
Leg to seat angle (X°)114 ~ 180114 ~ 180110 ~ 177110 ~ 177
Overall length with legrest (mm)1215 126512401290
Overall width (mm) 660660660660
Overall height (mm)1295129512951295
Folded length (mm) 745795910960
Folded width (mm) 330 330 400400
Folded height (mm)935935930930
Total mass (kg)18.719.0 21.321.6
Mass of the heaviest part (kg) 13.213.515.716.0
Maximum user weight (kg)115115115115
Minimum turning radius (mm)10001000965965
Minimum turning radius without user
(mm)
925925925925
Pivot width (mm)1400140013801380
Static stability downhill (X°)18.818.818.818.8
Static stability uphill (X°)13 13 13 13
Static stability sideways (X°)12121212
Handrim diameter (mm)N/AN/A530530
Horizontal location of axle (mm)50507070
Manual ver.17


Remark :

* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.
