Specification

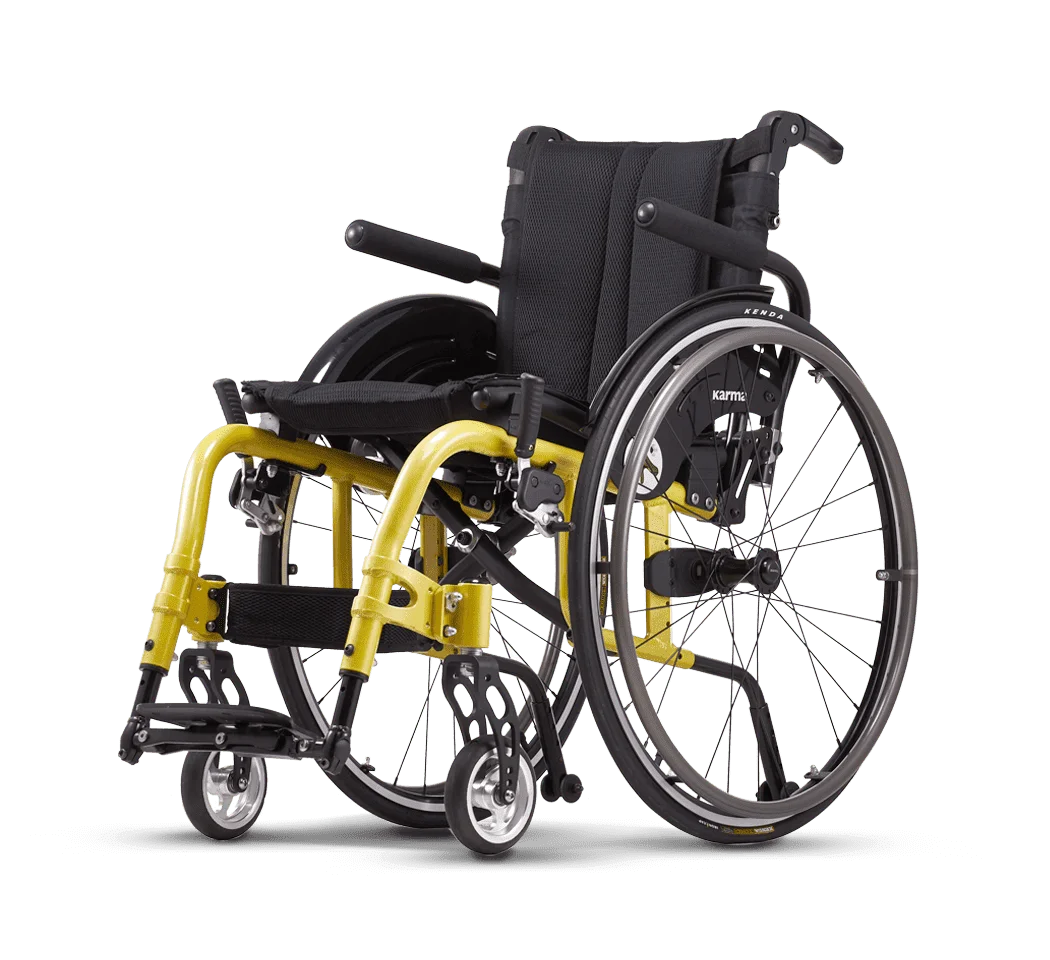

Product ModelErgo Live (KM-9000)
Nominal seat width (mm/in)*340 / 14340 / 14390 / 16390 / 16440 / 18440 / 18
Nominal seat depth (mm/in)**390 / 15415 / 16415 / 16465 / 18415 / 16465 / 18
Front caster / Rear wheel size (in)5 / 245 / 245 / 245 / 245 / 245 / 24
Backrest height (mm) 360 ~ 455360 ~ 455360 ~ 455360 ~ 455360 ~ 455360 ~ 455
Headrest height above seat (mm)N/AN/AN/AN/AN/AN/A
Armrest to seat distance (mm)225 / 250225 / 250225 / 250225 / 250225 / 250225 / 250
Front location of armrest structure
(mm)
0 ~ 2300 ~ 2300 ~ 2300 ~ 2300 ~ 2300 ~ 230
Seat surface height at front edge (mm)465465465465465465
Footrest to seat distance (mm)375 ~ 435375 ~ 435375 ~ 435375 ~ 435375 ~ 435375 ~ 435
Effective seat width (mm)385385435435485485
Effective seat depth (mm)390415415465415465
Seat plane angle (X°)555555
Backrest angle (X°)7 / 12 / 177 / 12 / 177 / 12 / 177 / 12 / 177 / 12 / 177 / 12 / 17
Seat to backrest angle (X°)92 / 97 / 10292 / 97 / 10292 / 97 / 102
Leg to seat angle (X°)979797979797
Overall length with legrest (mm)895 ~ 910920 ~ 935920 ~ 935970 ~ 985920 ~ 935970 ~ 985
Overall width (mm)580580630630680680
Overall height (mm)810 ~ 885810 ~ 885810 ~ 885810 ~ 885810 ~ 885810 ~ 885
Folded length (mm) 855870870900870900
Folded width (mm)290290310310330330
Folded height (mm)550550585585620 620
Total mass (kg)13.113.213.313.5 13.513.7
Mass of the heaviest part (kg)9.09.19.19.29.29.3
Maximum user weight (kg)125125125125125125
Minimum turning radius (mm)650650665665685685
Minimum turning radius without user
(mm)
580580590590605605
Pivot width (mm)103510351060106010601060
Static stability downhill (X°)141414
Static stability uphill (X°)12.5 (with anti-tippers)12.5 (with anti-tippers)12.5 (with anti-tippers)
Static stability sideways (X°)131313
Handrim diameter (mm)530530530530530530
Horizontal location of axle (mm)101010101010

Remark:
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– If the wheelchair is equipped with two-piece footplates, the maximum user weight is only 90 kg.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.
