Specification
Power Wheelchair Measurement Method
| Model | KP-12T |
| Seat Width | 12.5"~15" |

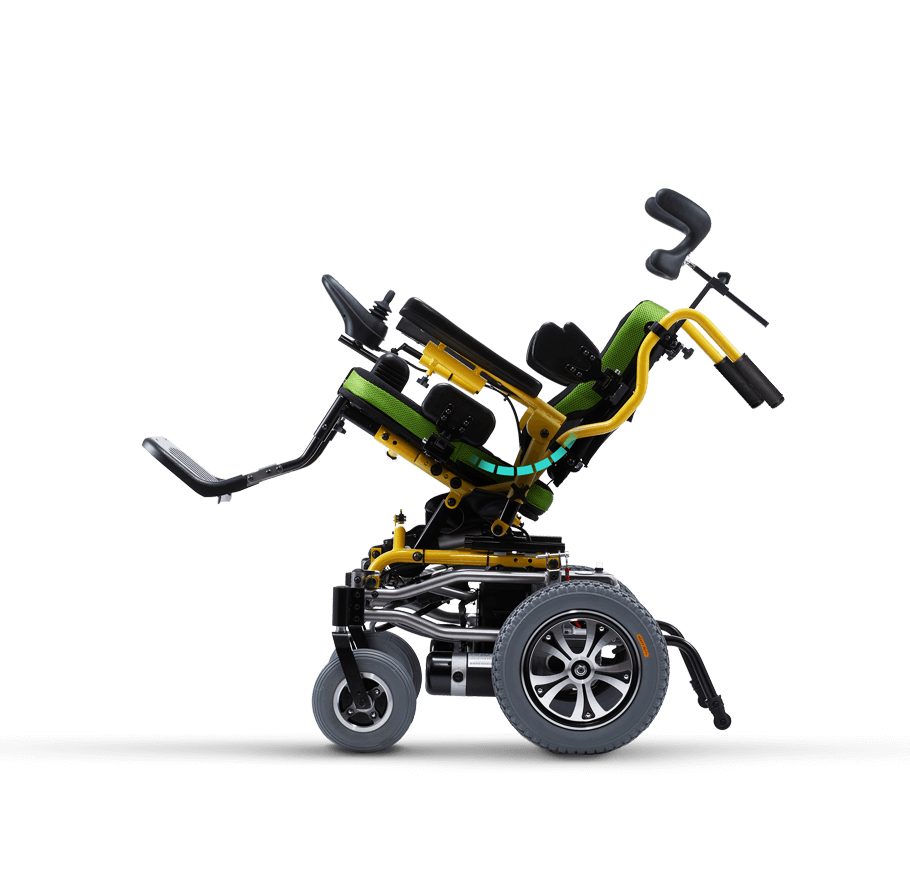

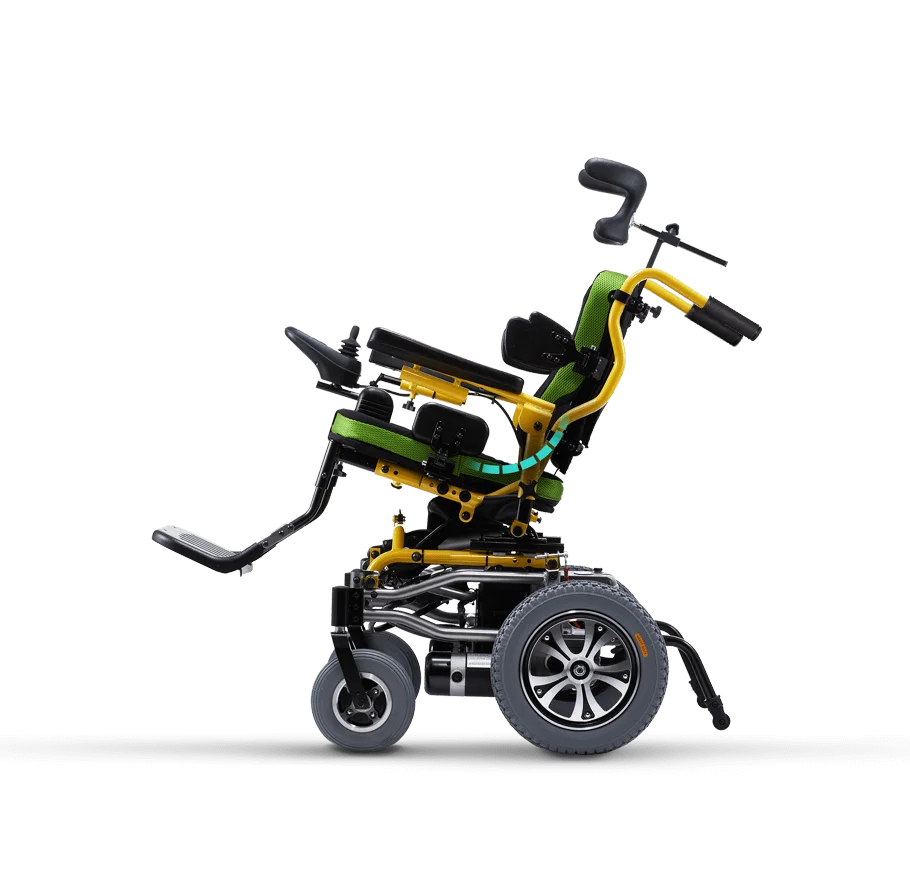

| Power Tilt (X°) | 30 |
| Overall Length (mm) | 1000 |
| Overall Width (mm) | 620 |
| Overall Height (mm) | 1110 |
| Turning Radius (mm) | 830 |
| Weight W/O Batteries (kg) | 42 |
| Total Weight (kg) | 58 |
| User weight (kg) | 60 |
| Drive range (km) | 13~16 |
| Max. Speed (km) | 6 |
| Max. Safe Slope (X°) | 8 |
| Battery (Ah) | 22Ah x2pcs |
| Electrical System | VR2 |
Manual ver.04
Remark :
Range (the maximum driving distance per complete charge) is estimated based on the following conditions: 20° C (68° F) an 6 0kg (176lbs) driver brand new fully charged batteries and a constant driving speed of 6km/hr.
Download
User Manual_KP-12 Series_Ver.04
2.94 MB 1 file(s)
