Frame Colors

Product ModelKP-20 Series
Nominal seat width
(mm/in)*
410 / 16460 / 18515 / 20
Nominal seat depth (mm/in)**430 / 16480 / 18480 / 18
Front caster / Drive wheel size (in) 8 / 128 / 128 / 12
Backrest height (mm)450 ~ 525450 ~ 525450 ~ 525
Headrest height above seat (mm)N/AN/AN/A

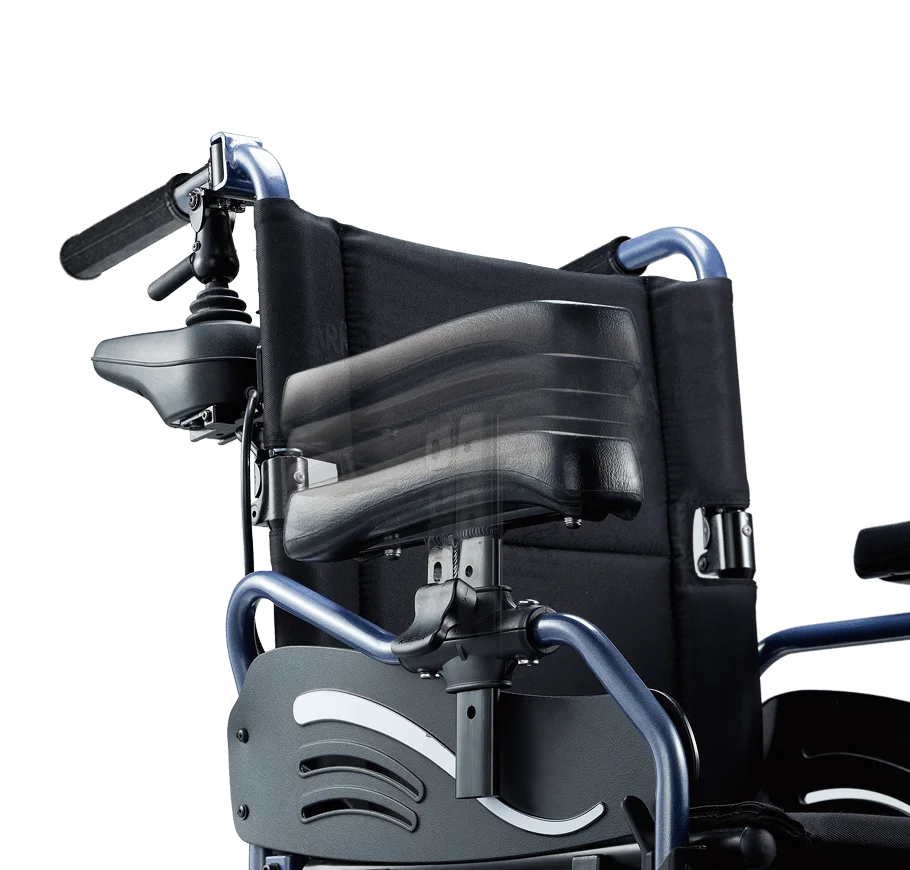

Armrest to seat distance (mm)225 ~ 285225 ~ 285225 ~ 285
Front location of armrest structure (mm)
245 ~ 500245 ~ 500245 ~ 500
Seat surface height at front edge
(mm)
525525525
Footrest to seat distance (mm)360 ~ 445350 ~ 435350 ~ 435
Effective seat width (mm)430480530
Effective seat depth (mm) 470515515
Seat plane angle (X°)666
Backrest angle (X°)111111
Seat to backrest angle (X°)959595
Leg to seat angle (X°)110110110
Overall length with legrest (mm) 985 ~ 1115985 ~ 1115985 ~ 1115
Overall width (mm)590640690
Overall height (mm) 960 ~ 1035960 ~ 1035960 ~ 1035
Folded length (mm) 755755755
Folded width (mm)
380395395
Folded height (mm) 910910910
Total mass (kg)
67.067.667.6
Total mass without batteries (kg)
35.736.336.3
Mass of the heaviest part (kg)
30.030.630.6
Maximum user weight (kg)115 / 135 (pneumatic tires)
Motor power (W)200200200
Battery capacity (Ah)50*250*250*2
Charger output current
(A)
666
Drive range (km) ***323232
Battery Compartment (L x W x H)
(mm)
220 x 170 x 175 (Single Compartment)
Maximum speed forward (km)666
Minimum braking distance from
max speed (mm)
100010001000
Obstacle climbing (mm)505050
Ground clearance (mm)606060
Minimum turning radius (mm)7809551130
Minimum turning radius without
user (mm)
6508251000
Reversing width (mm)118012201260
Static stability downhill
(X°)
161616
Static stability uphill
(X°)
141414
Static stability sideways
(X°)
161616
Dynamic stability uphill
(X°)
666
Ability to climb rated slope (X°)121212
Electric ver.20


Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20℃~35℃, 115kg occupant, brand new fully charged batteries and driving on the flat road.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.
