Specification

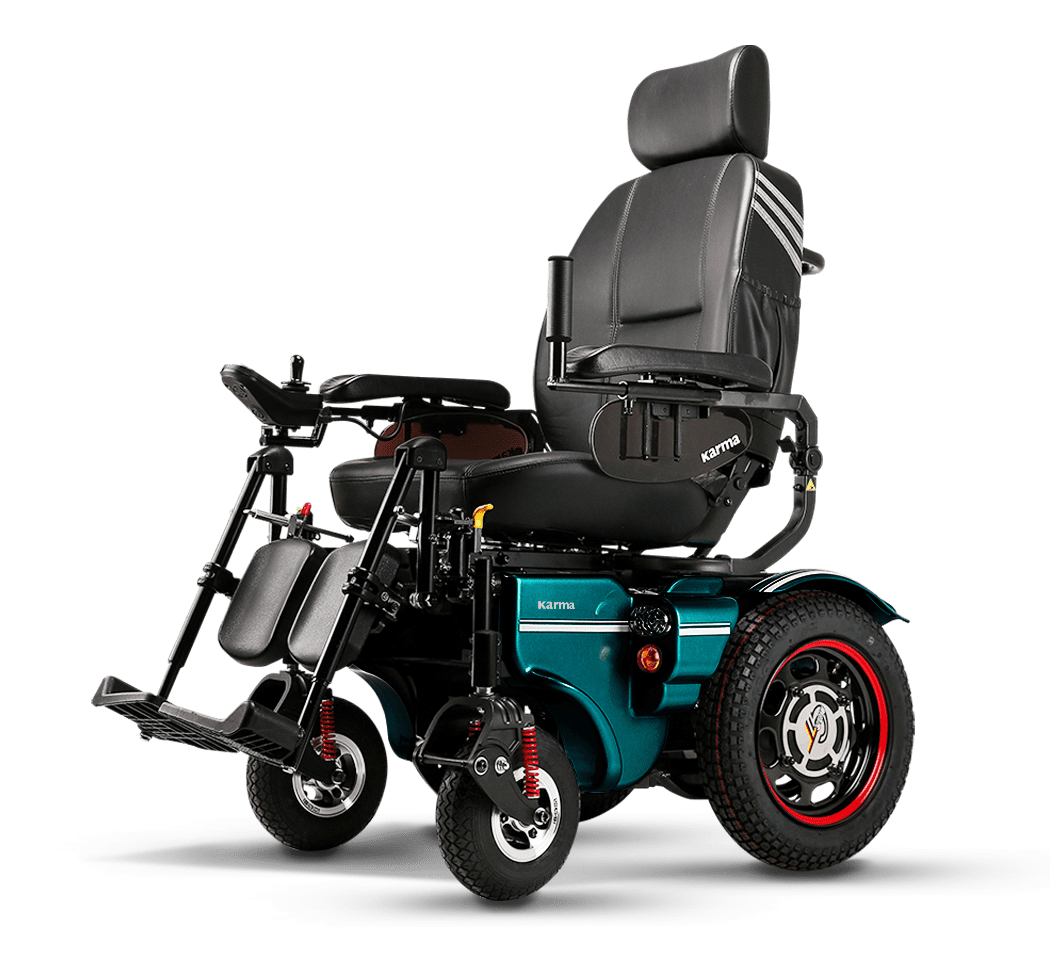

Prodcut NameKP-45.6KP-45.6TKP-45.6TR
Nominal seat width (mm)*460 / 18 510 / 20510 / 20
Nominal seat depth (mm)**425 / 16 490 / 20490 / 20

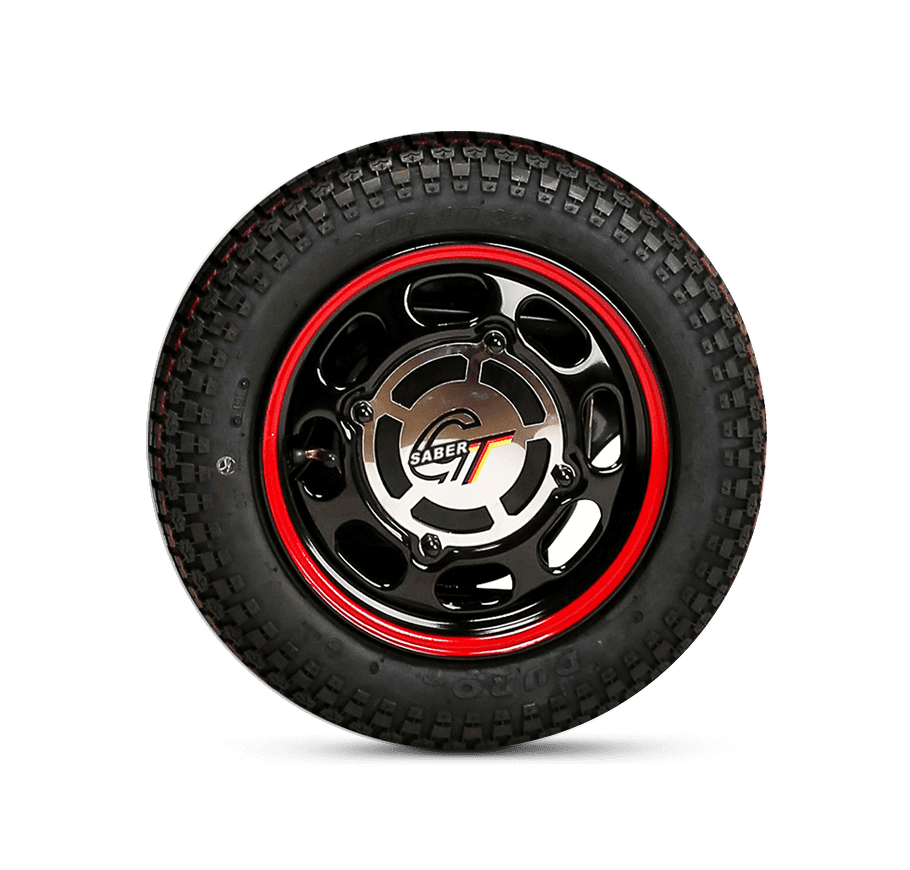

Front caster / Drive wheel size
in
9 x 169 x 169 x 16

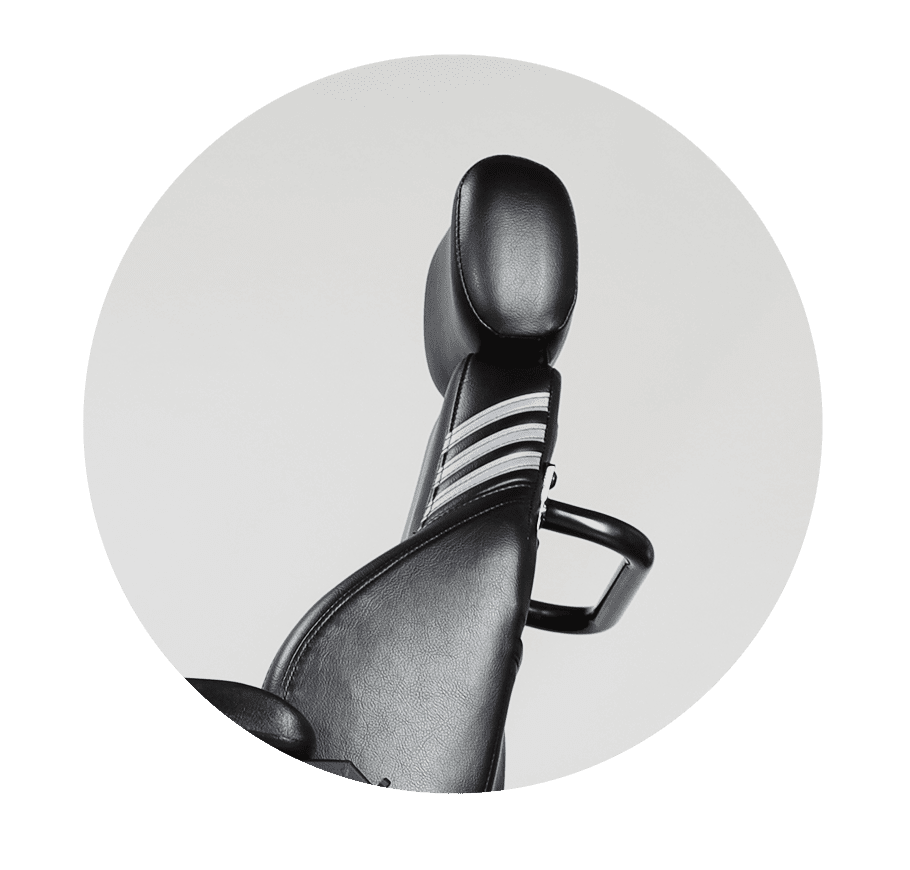

Backrest height (mm)535550550
Headrest height above seat (mm)635 ~ 680675 ~ 720675 ~ 720
Armrest to seat distance (mm)175 ~ 245175 ~ 245175 ~ 245
Front location of armrest structure (mm)60 ~ 560255 ~ 600255 ~ 600
Seat surface height at front edge (mm)580600600
Footrest to seat distance (mm)410 ~ 455410 ~ 455410 ~ 455
Effective seat width (mm)460 ~ 530525 ~ 545525 ~ 545
Effective seat depth (mm)485510510
Seat plane angle (X°)106 ~ 457 ~ 46
Backrest angle (X°)0 ~ 675 ~ 267 ~ 36
Seat to backrest angle (X°)0 ~ 14788 ~ 11090 ~ 119
Leg to seat angle (X°)107 ~ 179102 ~ 179106 ~ 176
Overall length with legrest (mm)1125 ~ 15951150 ~ 14701150 ~ 1600
Overall width (mm)645 ~ 685650 ~ 695650 ~ 695
Overall height (mm)865 ~ 12301000 ~ 1340990 ~ 1360
Folded length (mm)895950900
Folded width (mm)650650650
Folded height (mm)87010901095
Total mass (kg)104.2 (50Ah PbAc)
127.6 (80Ah PbAc)
88.6 (50Ah LFP)
117.4 (50Ah PbAc)
140.8 (80Ah PbAc)
101.8 (50Ah LFP)
133.9 (50Ah PbAc)
157.3 (80Ah PbAc)
118.3 (50Ah LFP)
Total mass without batteries (kg)73.086.8103.3
Mass of the heaviest part (kg)70.080.096.0
Maximum user weight (kg)135135135
Motor power (W)320320320
Battery capacity (Ah)50*2 (PbAc)
80*2 (PbAc)
51.2*1 (LFP)
50*2 (PbAc)
80*2 (PbAc)
51.2*1 (LFP)
50*2 (PbAc)
80*2 (PbAc)
51.2*1 (LFP)
Charger output current (A)6 (PbAc) / 10 (LFP)6 (PbAc) / 10 (LFP)6 (PbAc) / 10 (LFP)
Drive range (km)41.7 (50Ah PbAc)
64.0 (80Ah PbAc)
45.7 (50Ah LFP)
41.7 (50Ah PbAc)
64.0 (80Ah PbAc)
45.7 (50Ah LFP)
41.7 (50Ah PbAc)
64.0 (80Ah PbAc)
45.7 (50Ah LFP)
Battery Compartment (L x W x H) (mm)340 x 200 x 160340 x 200 x 160340 x 200 x 160
Maximum speed forward (km)131313
Minimum braking distance from max speed (mm)310031003100
Obstacle climbing (mm)505050
Ground clearance (mm)555555
Minimum turning radius (mm)103510651050
Minimum turning radius without user (mm)905935920
Reversing width (mm)130013601340
Static stability downhill (X°)161616
Static stability uphill (X°)191919
Static stability sideways (X°)15.515.515.5
Dynamic stability uphill (X°)666
Ability to climb rated slope (X°)121212

Remark :
*Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front e nd of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20 ℃~35 ℃, 135kg occupant, brand new fully charged batterie s and driving on the flat road.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information he rein without further notice.
