Casing Colors

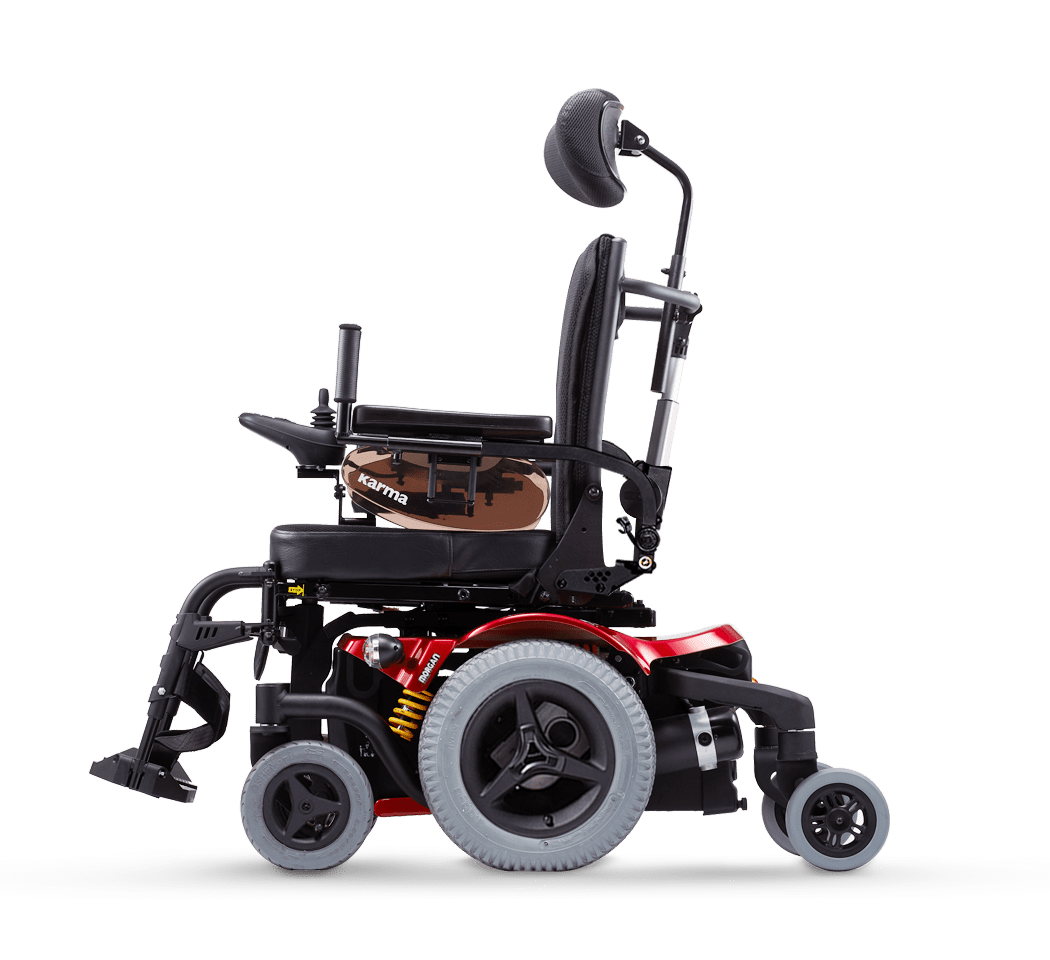

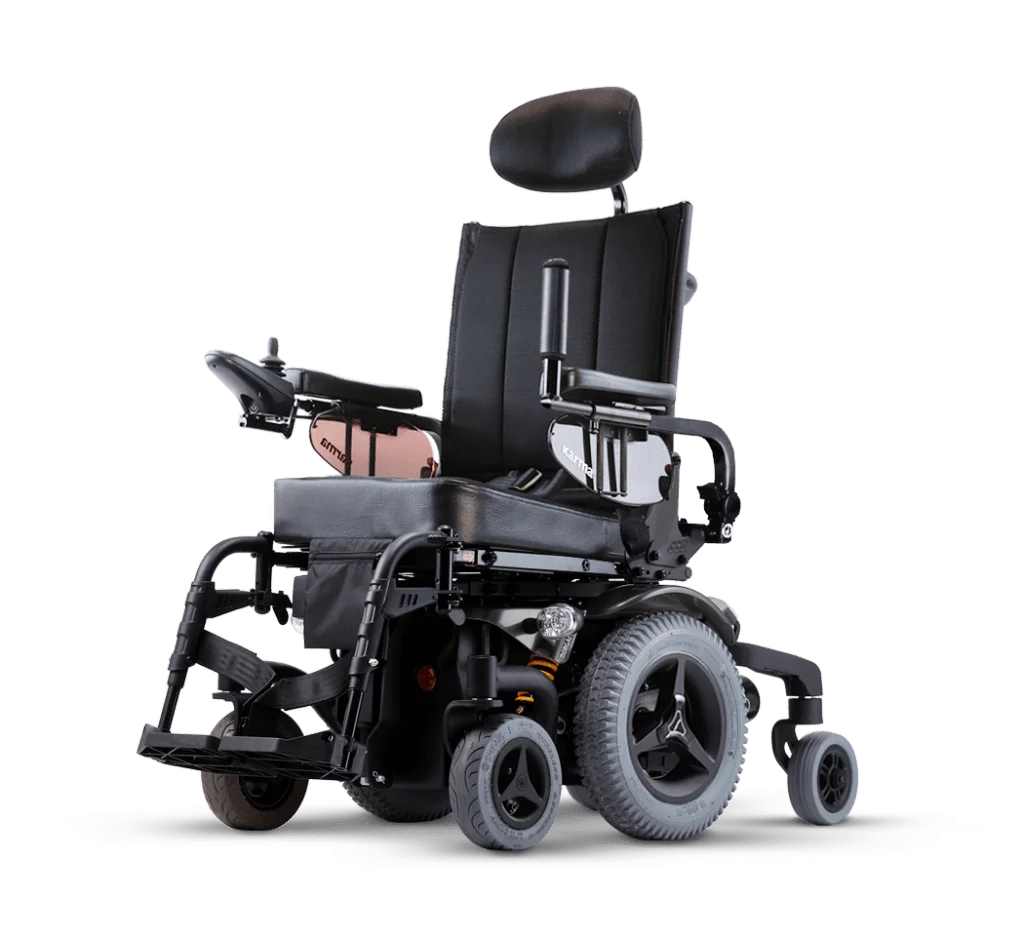

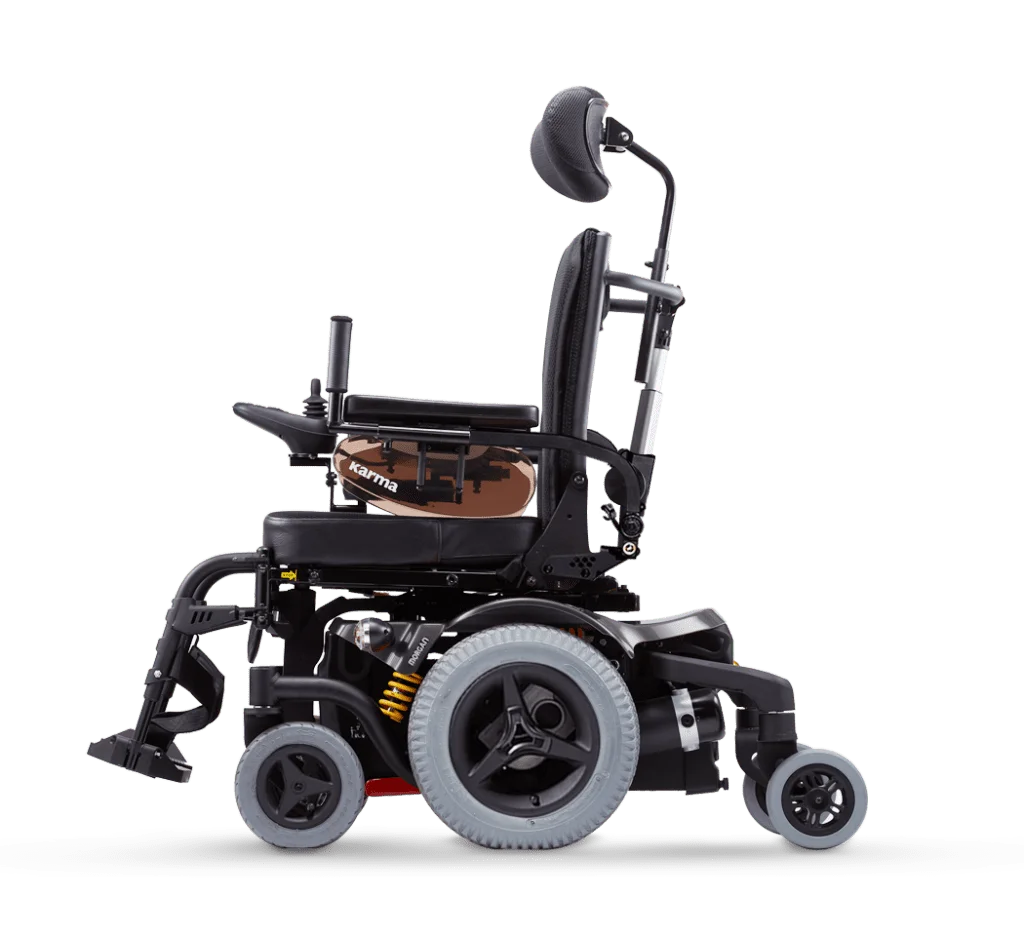

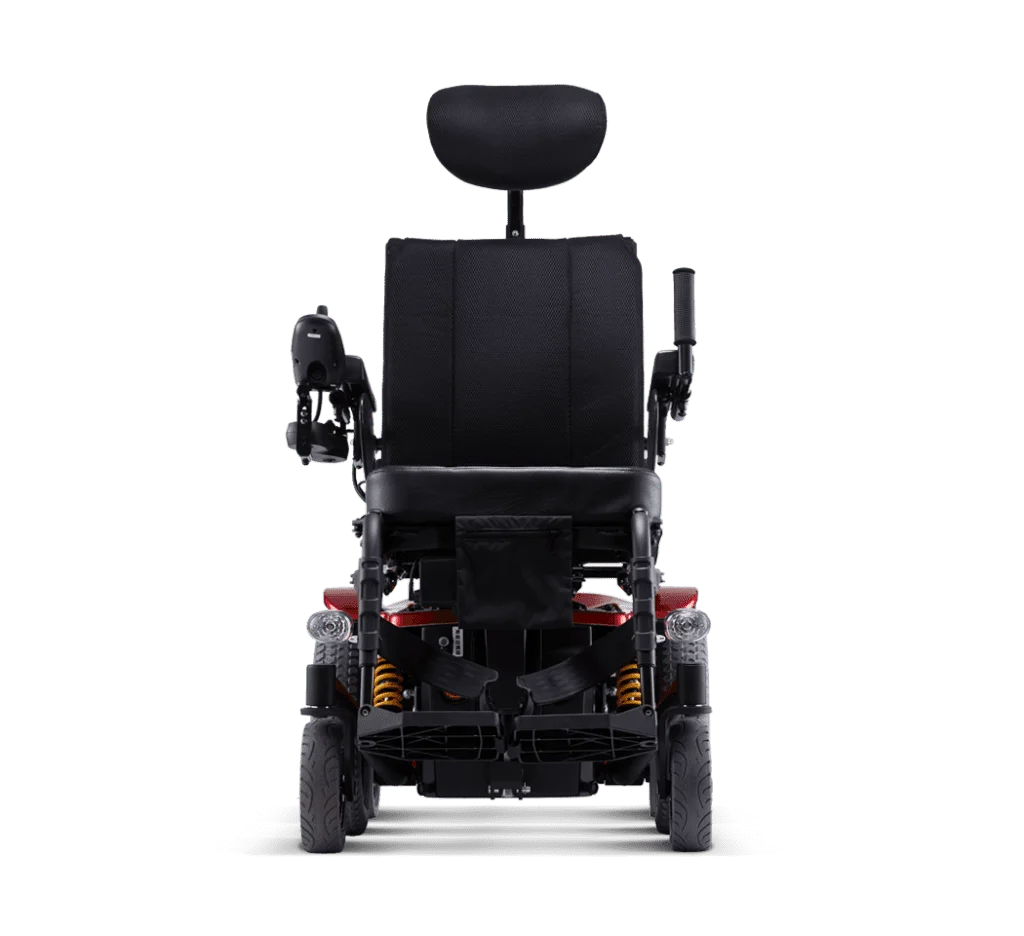

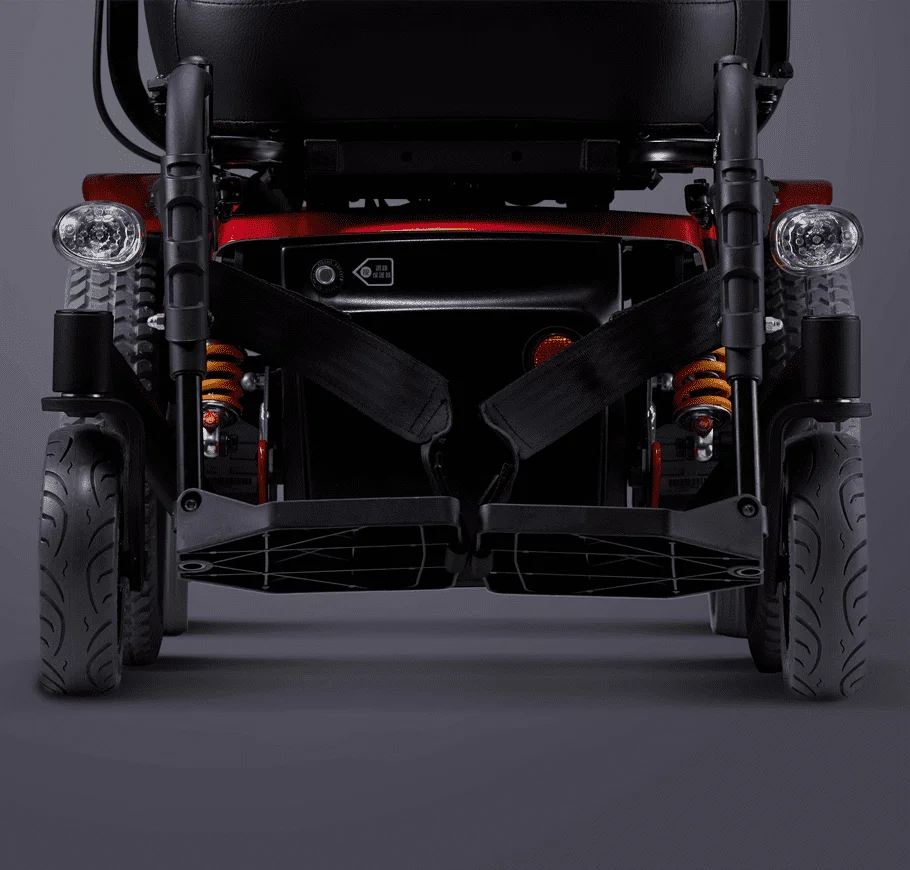

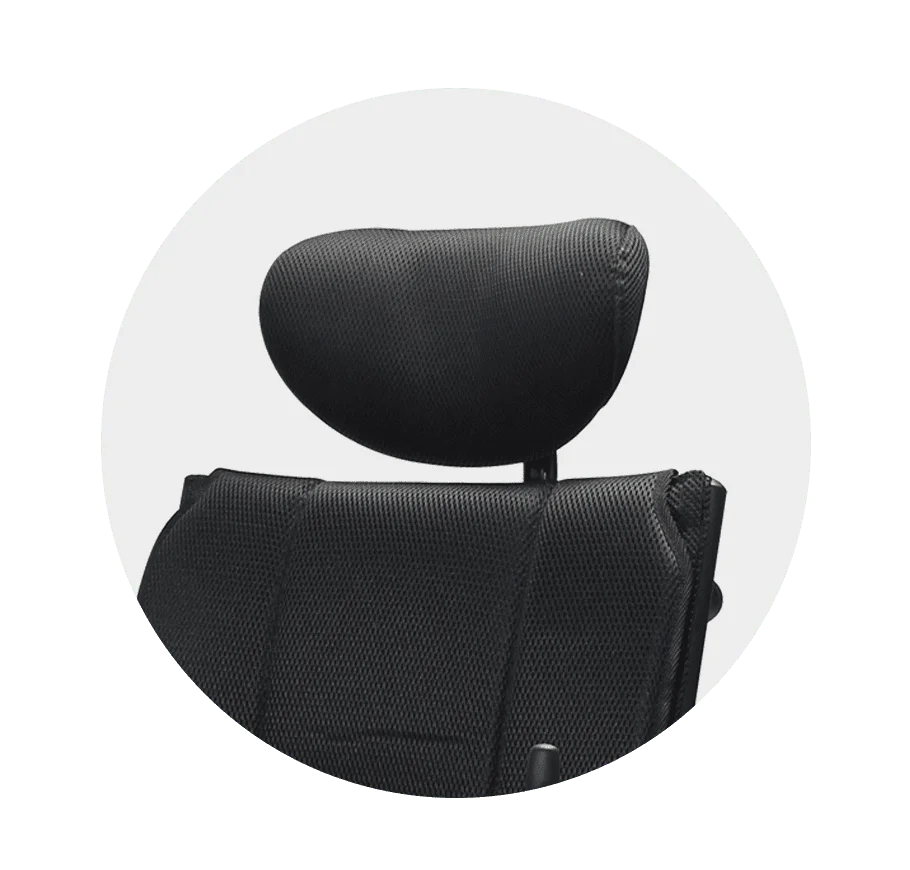

Product ModelMORGAN Sling Seat(with pelvicy belt)
Nominal seat width (mm)*430480
Nominal seat depth (mm)**390 ~ 515
in 25 mm increments
Front caster size (in)8
Drive wheel size (in)14
Rear caster size (in)6
Backrest height without cushion (mm)545
Backrest height with cushion (mm)465
Armrest to seat distance without cushion
(mm)
260 ~ 350
Armrest to seat distance with cushion (mm)180 ~ 270
Front location of armrest structure (mm)400~425440~465
Seat surface height at front edge without
cushion (mm)
445
Seat surface height at front edge with
cushion (mm)
525
Footrest to seat distance with cushion (mm)380 ~ 485
Effective seat width (mm)440 ~ 520490 ~ 520
Effective seat depth (mm)410 ~ 535
25 mm increments
Seat plane angle (X°)2°~20° / 5°~23°
Backrest angle (X°)-1 ~ 11
Seat to backrest angle (X°) (tool adjustable)91/94/97/100/103/106
Seat to backrest angle (X°) (manual stepless)0 ~ 119
Seat to backrest angle (X°) (power recline)90 ~ 122
Leg to seat angle (X°)105
Overall length with legrest (mm)1200
Overall width (mm)600
Overall height (mm)960
Folded length (mm)850
Folded width (mm)600614
Folded height (mm)700
Total mass (kg)137
Total mass without batteries (kg)106
Mass of the heaviest part (kg)101
Maximum user weight (kg)136
ControllerVR2/LiNX (optional)
Motor power (W)450
Battery capacity (Ah)50* 2
Charger output current (A)6/8
Drive range (km)***25
Battery Compartment (L x W x H) (mm)Front 238 x 170 x 215
Rear 238 x 170 x 190
Maximum speed forward (km)6/10/12(VR2), 10(LiNX)
Minimum braking distance from max speed
(mm)
2100
Obstacle climbing (mm)50
Ground clearance (mm)100
Minimum turning radius (mm)955
Minimum turning radius without user (mm)805
Reversing width (mm)1260
Static stability downhill (X°)9
Static stability uphill (X°)9
Static stability sideways (X°)9
Dynamic stability (X°)8
Ability to climb rated slope (X°)****8
Electric ver.11


Remark :
* Nominal seat width is known by measuring the width of seat cushion. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product
ordering process.
*** Drive range are estimated based on the following conditions: 20℃~35℃, 136 kg occupant, brand new fully charged batteries and driving
on the flat road.
**** Ability to climb rated slope are estimated based on the following conditions: 20℃~35℃, 136 kg occupant, brand new fully charged batteries.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.
