Chassis

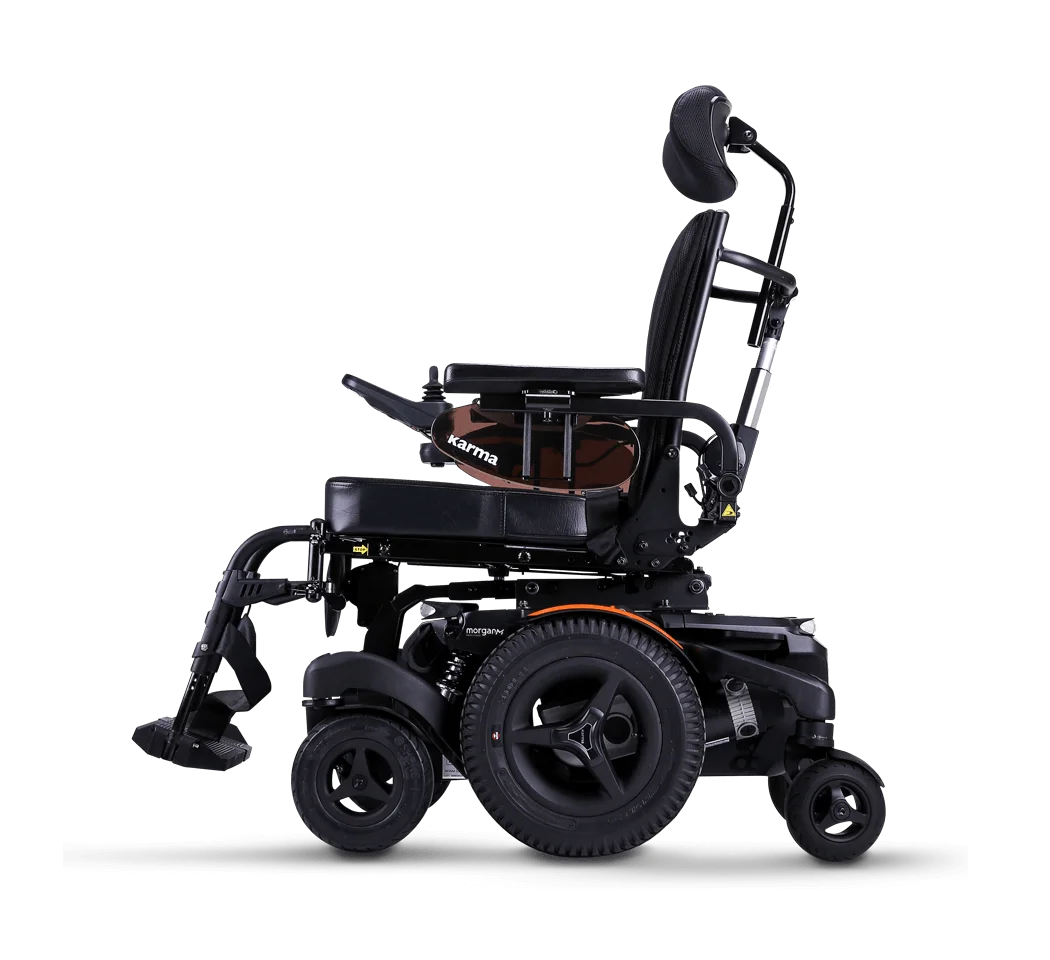

Morgan M Chassis
Mid-Wheel Drive Performance


Best in Class Driving Performance

Silent but powerful high-performance motors deliver incredible outdoor performance, with a 51 km(AMT German motor) driving range and 12 km/h maximum speed. When it comes to indoor use, the narrow 600 mm total width and 700 mm turning radius make Morgan M a nimble navigator.

Maintenance Friendly​

We designed Morgan M for the long term, with after-sales service and adaptations in mind. For example, technicians can replace the batteries while the user remains seated comfortably in the wheelchair or install a lighting system onto the pre-wired chassis.​

Six-Wheel Independent Suspension System

The suspension system evenly distributes and absorbs shocks from driving over uneven surfaces and obstacles up to 75 mm for a smooth ride.

Seating System

Standard Seat Sling

Karma designed its Sling seat for users with low-to-medium clinical needs. The adjustable seat frame and optional power positioning functions provide moderate support, while flip-back armrests simplify the transfer process.

Wide Range of Options and Accessories

Headrests

Contoured Headrest​

Legrests

Elevating Legrests with Calf Support
Amputee Legrests

Controls

R-net / CJSM
VR2

Supports

Calf Supports

Other Accessories

Tray Table
Parallel Swing Away Controller Bracket
Gyro
Handle Bar

Side Frame Colors

Specification
Product Model
Morgan M (MGNM) Sling
Nominal seat width (mm)*430480
Nominal seat depth (mm)**390~515, 25mm increment
Front caster size2.50/2.00 -4 (8")2.50/2.00 -4 (8")
Drive wheel size3.00 -8 (14")3.00 -8 (14")
Rear caster size2.00/1.00 -4 (6")2.00/1.00 -4 (6")
Backrest height without cushion (mm)545545
Backrest height with cushion (mm)465465
Headrest height above seat (mm)N/AN/A
Armrest to seat distance without cushion (mm)270 ~ 370270 ~ 370
Armrest to seat distance with cushion (mm)190 ~ 290190 ~ 290
Front location of armrest structure (mm)190 ~ 470240 ~ 520
Seat surface height at front edge without cushion (mm)420420
Seat surface height at front edge with cushion (mm)500500
Footrest to seat distance without cushion (mm)300 ~ 405300 ~ 405
Footrest to seat distance with cushion (mm)380 ~ 485380 ~ 485
Effective seat width (mm)450 ~ 535495 ~ 535
Effective seat depth (mm)410 ~ 535, 25mm increment
Seat plane angle (X°)2~ 202 ~ 20
Backrest angle (X°)2 ~ 302 ~ 30
Seat to backrest angle (X°)90 ~ 12090 ~ 120
Leg to seat angle (X°)105105
Overall length with legrest (mm)1090 ~ 11201090 ~ 1120
Overall width (mm)630 ~ 690630 ~ 690
Overall height (mm)855~960855~960
Folded length (mm)800800
Folded width (mm)630630
Folded height (mm)920920
Total mass (kg)128.5 (50Ah)
151.0 (80Ah)
128.5 (50Ah)
151.0 (80Ah)
Total mass without batteries (kg)9797
Mass of the heaviest part (kg)94.594.5
Maximum user weight (kg)136136
Motor power (W)400400
Battery capacity (Ah)6 / 86 / 8
Charger output current (A)6 / 86 / 8
Drive range (km)***27 (50Ah) / 49 (80Ah)27 (50Ah) / 49 (80Ah)
Battery Compartment (L x W x H) (mm)(Front) 238 x 170 x 215
(Rear) 238 x 170 x 190
(Front) 238 x 170 x 215
(Rear) 238 x 170 x 190
Maximum speed forward (km)1212
Minimum braking distance from max speed (mm)19001900
Obstacle climbing (mm)7575
Ground clearance (mm)100100
Minimum turning radius (mm)790790
Minimum turning radius without user (mm)700700
Reversing width (mm)12601260
Static stability downhill (X°)1717
Static stability uphill (X°)1212
Static stability sideways (X°)2020
Dynamic stability uphill (X°)66
Ability to climb rated slope (X°)***1212

Manual Ver.01


Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20℃~35℃, 136 kg occupant, brand new fully charged batteries and driving on the flat road.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.

POWER WHEELCHAIR MEASUREMENT METHOD
