Specification

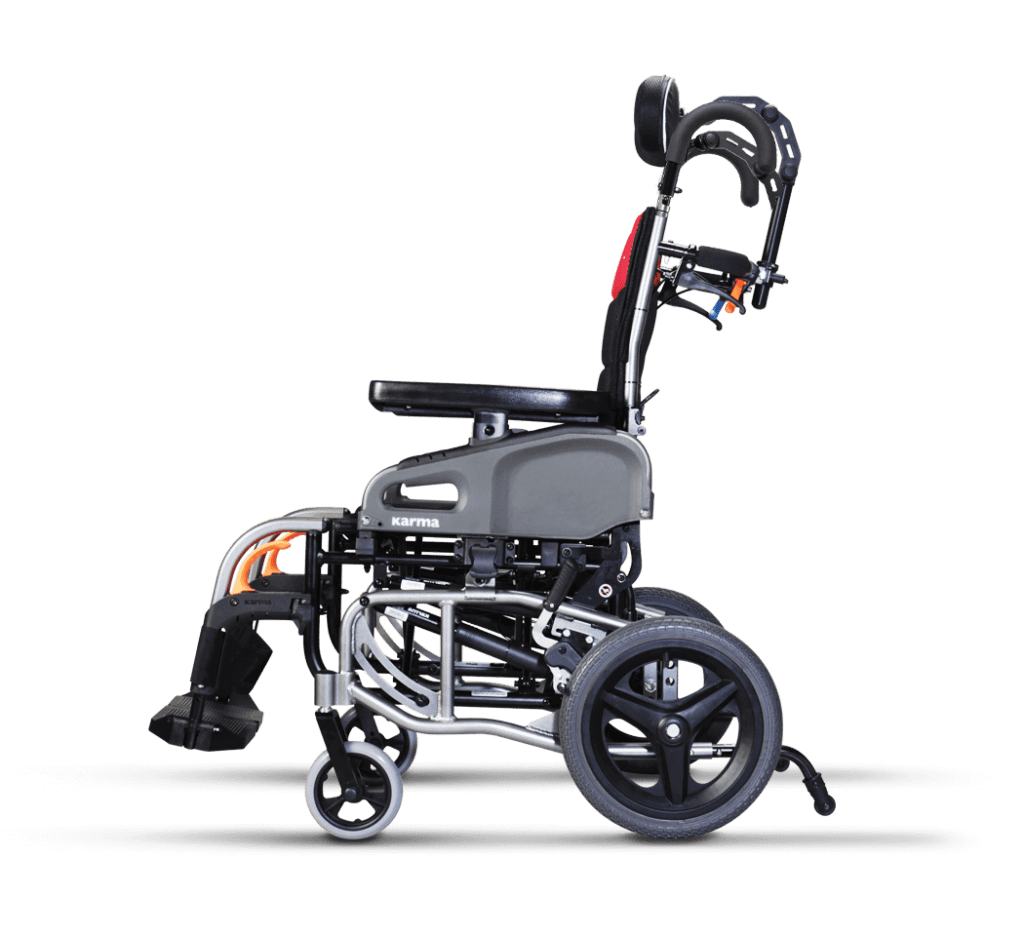

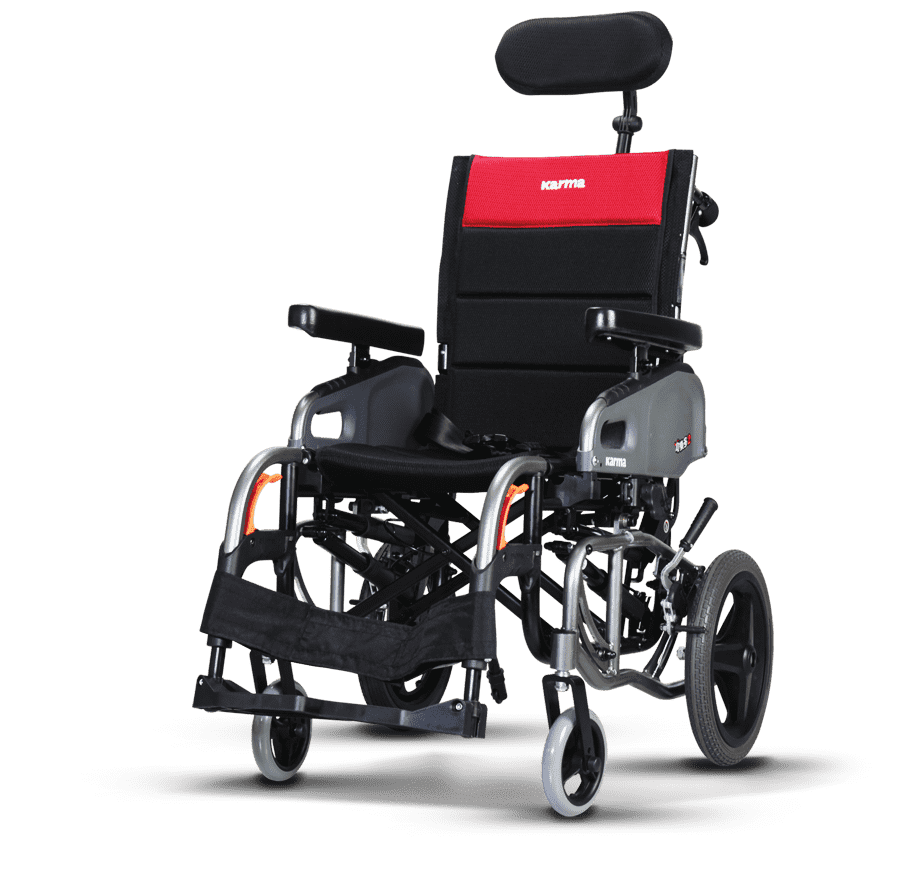

Product ModelVIP2 (VIP2-TR)
Nominal seat width (mm/in)*400 / 16400 / 16450 / 18450 / 18
Nominal seat depth (mm/in)**415 / 16465 / 18415 / 16465 / 18
Front caster / Rear wheel size (in)6 / 14、7 / 146 / 14、7 / 146 / 14、7 / 146 / 14、7 / 14
Backrest height (mm)510 / 560510 / 560510 / 560510 / 560

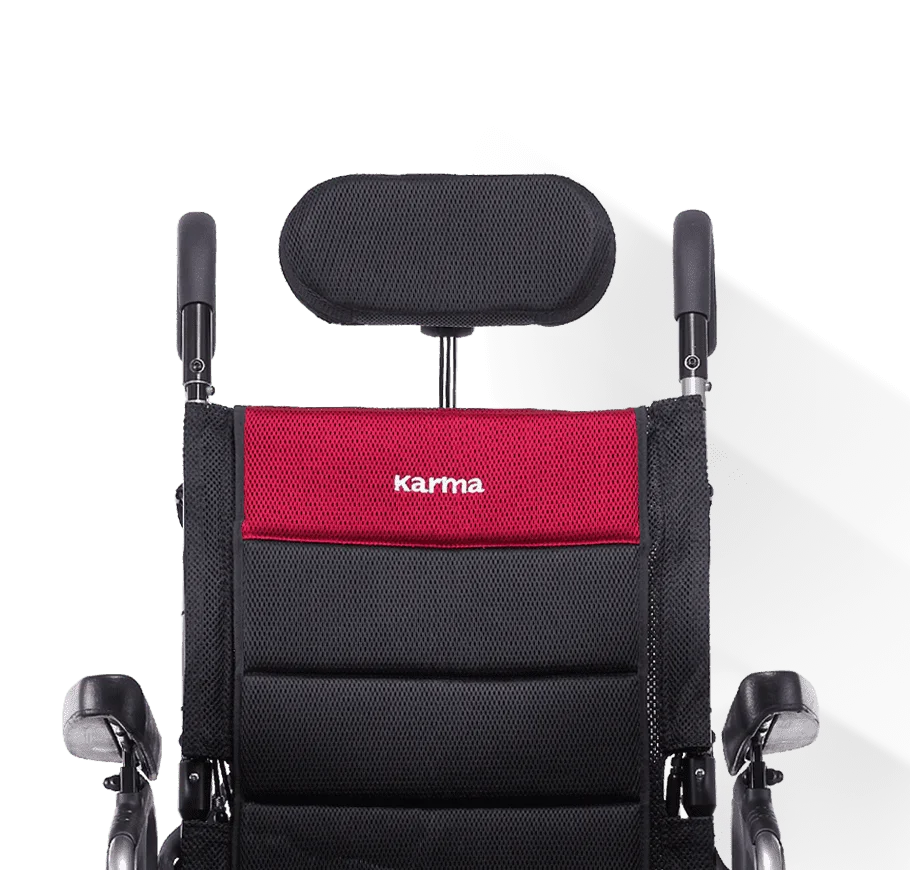

Headrest height above seat (mm)630 ~ 860630 ~ 860630 ~ 860630 ~ 860

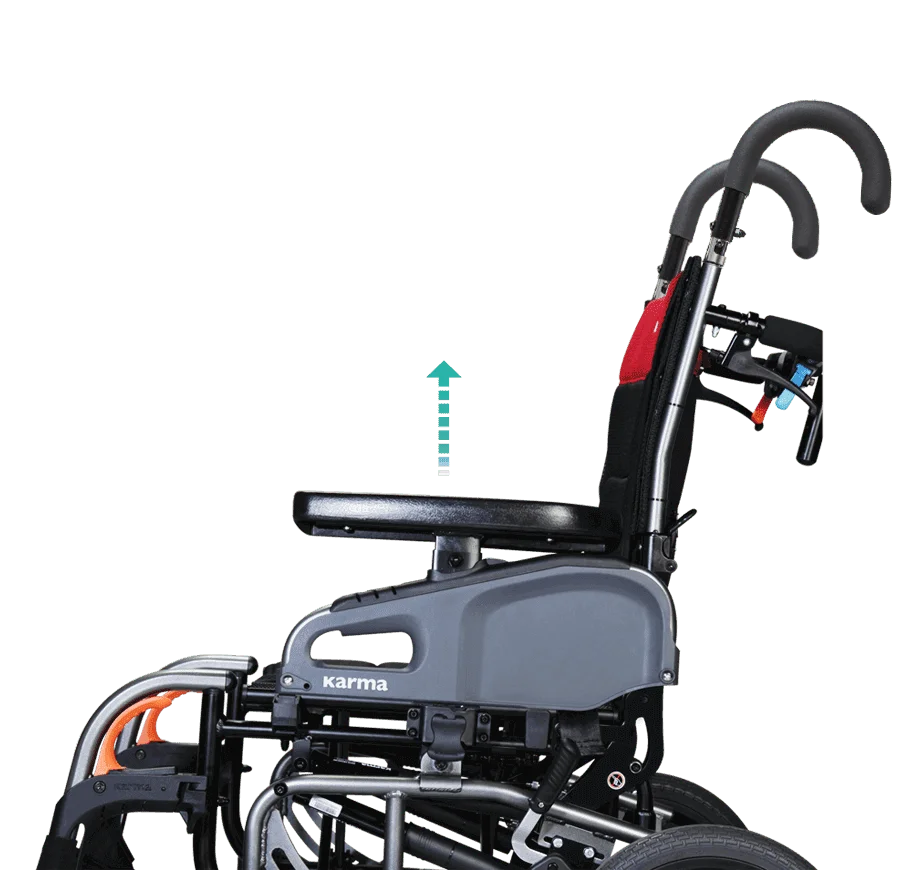

Armrest to seat distance (mm)220 ~ 280220 ~ 280220 ~ 280220 ~ 280
Front location of armrest structure
(mm)
385410385410
Seat surface height at front edge
(mm)
470 / 490470 / 490470 / 490470 / 490
Footrest to seat distance (mm)320 ~ 420320 ~ 420320 ~ 420320 ~ 420
Effective seat width (mm)460460510510
Effective seat depth (mm)430470430470
Seat plane angle (X°)1 ~ 361 ~ 361 ~ 361 ~ 36
Backrest angle (X°)13 ~ 4313 ~ 4313 ~ 4313 ~ 43
Seat to backrest angle (X°)102 ~ 132102 ~ 132102 ~ 132102 ~ 132
Leg to seat angle (X°)100100100100
Overall length with legrest (mm)1070112010701120
Overall width (mm)630630680680
Overall height (mm)1380138013801380
Folded length (mm)775825775825
Folded width (mm)355355355355
Folded height (mm)680680680680
Total mass (kg)24.424.724.925.2
Mass of the heaviest part (kg)17.818.018.118.3
Maximum user weight (kg)115115115115
Minimum turning radius (mm)905975905975
Minimum turning radius without
user(mm)
830890830890
Pivot width (mm)1210128012101280
Static stability downhill (X°)10101010
Static stability uphill (X°)16 (with anti-tippers)16 (with anti-tippers)16 (with anti-tippers)16 (with anti-tippers)
Static stability sideways (X°)10101010
Handrim diameter (mm)N/AN/AN/AN/A
Horizontal location of axle (mm)90909090

Product ModelVIP2 (VIP2-TR)
Nominal seat width (mm/in)*400 / 16400 / 16450 / 18450 / 18
Nominal seat depth (mm/in)**415 / 16465 / 18415 / 16465 / 18
Front caster / Rear wheel size (in)6 / 20、7 / 206 / 20、7 / 206 / 20、7 / 20146 / 20、7 / 20
Backrest height (mm)510 / 560510 / 560510 / 560510 / 560
Headrest height above seat (mm)630 ~ 860630 ~ 860630 ~ 860630 ~ 860
Armrest to seat distance (mm)220 ~ 280220 ~ 280220 ~ 280220 ~ 280
Front location of armrest structure
(mm)
385410385410
Seat surface height at front edge (mm)470 / 490470 / 490470 / 490470 / 490
Footrest to seat distance (mm)320 ~ 420320 ~ 420320 ~ 420320 ~ 420
Effective seat width (mm)460460510510
Effective seat depth (mm)430470430470
Seat plane angle (X°)1 ~ 361 ~ 361 ~ 361 ~ 36
Backrest angle (X°)13 ~ 4313 ~ 4313 ~ 4313 ~ 43
Seat to backrest angle (X°)102 ~ 132102 ~ 132102 ~ 132102 ~ 132
Leg to seat angle (X°)100100100100
Overall length with legrest (mm)1070112010701120
Overall width (mm)660660710710
Overall height (mm)1380138013801380
Folded length (mm)840890840890
Folded width (mm)380380380380
Folded height (mm)715715715715
Total mass (kg)25.425.625.625.8
Mass of the heaviest part (kg)15.4 (20Q)
19.0 (20F)
15.6 (20Q)
19.2 (20F)
15.6 (20Q)
19.2 (20F)
15.8 (20Q)
19.4 (20F)
Maximum user weight (kg)115115115115
Minimum turning radius (mm)905975905975
Minimum turning radius without
user(mm)
830890830890
Pivot width (mm)1210128012101280
Static stability downhill (X°)10101010
Static stability uphill (X°)16 (with anti-tippers)16 (with anti-tippers)16 (with anti-tippers)16 (with anti-tippers)
Static stability sideways (X°)10101010
Handrim diameter (mm)430430430430
Horizontal location of axle (mm)90909090

Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.
