Power Positioning Functions

Sky-High Power Elevating Seat

Reach new heights with the power elevating seat. The seat is mounted into the chassis and can be raised stepless up to 40 cm. This provides the users with a better view and a better access to their surroundings.

Biomechanical Power Recline and Elevating Legrest

Because it is not always easy to adapt to a new living situation, the EVO Lectus is designed with various biomechanical principles in mind, to help the user with the transition. It includes power recline and power articulating elevating legrests. The seat will traverse with the body as the user reclines, thereby reducing the sheer force. Most importantly, it keeps all the supports in the correct alignment with the body.

50-Degree Center of Gravity Tilt System

The center of gravity tilt system ensures pressure relief and a high degree of comfort. The tilt can also be used when traveling down a slope to compensate for the negative seat angle. This provides a safer and more stable seating position.

Casing Colors

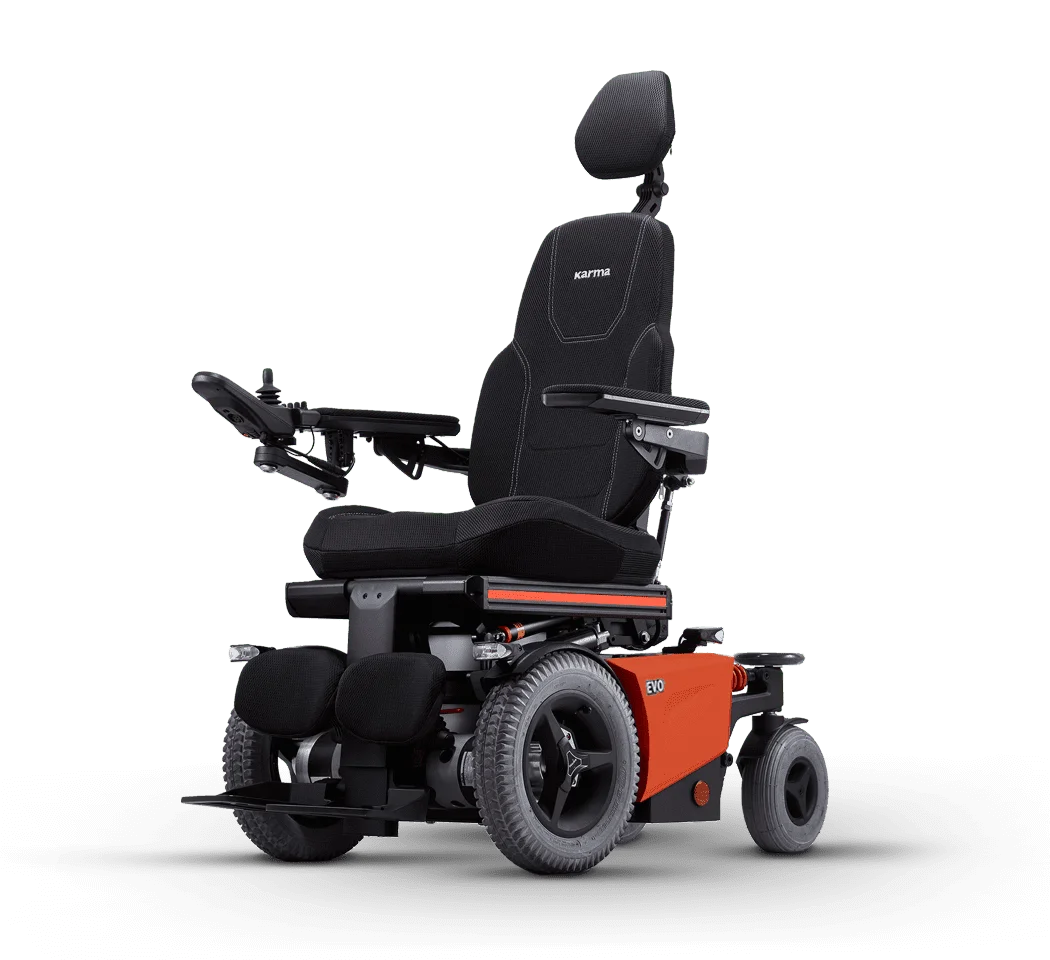

Product Model Evo LectusEvo Lectus
Seating SystemMinimumMaximum
Nominal seat width (mm/in)* 420 / 17 520 / 21
Nominal seat depth (mm/in)** 400 / 16 600 / 24
Backrest height without cushion (mm) 570 730
Backrest height with cushion (mm) 510670
Headrest height above seat (mm) 730 890
Armrest to seat distance without
cushion (mm)
150 380
Armrest to seat distance with cushion (mm)
70 300
Front location of armrest structure (mm)0 435
Seat surface height at front edge without cushion (mm)450 850
Seat surface height at front edge with
cushion (mm)
530930
Footrest to seat distance without
cushion (mm)
145 550
Footrest to seat distance with cushion (mm)225630
Effective seat width (mm) 420 520
Effective seat depth (mm) 400 600
Seat plane angle (X°) 050
Backrest angle (X°) 590
Seat to backrest angle (X°)95180
Leg to seat angle (X°) 85 180
Driving CharacteristicsMinimumMaximum
Drive wheel size 3.00 - 8 (14")
Rear caster size 2.80/2.50 - 4 (9")
Overall length with legrest (mm) - 1200
Overall width (mm)610660
Overall height (mm) 1115-
Folded length (mm) 935-
Folded width (mm) 610-
Folded height (mm) 770 1115
Total mass (kg) - 165
Total mass without batteries (kg) -123
Mass of the heaviest part (kg) - 120
Maximum user weight (kg)-136
Drive range (km)*** -35.8
Maximum speed forward (km) - 12
Minimum braking distance from max
speed (mm)
1900 -
Obstacle climbing (mm) - 70
Ground clearance (mm) 70-
Minimum turning radius (mm) 750 -
Minimum turning radius without user
(mm)
750 -
Reversing width (mm) 750 -
Static stability downhill (X°) 9
Static stability uphill (X°)9
Static stability sideways (X°) 9
Dynamic stability uphill (X°) 6
Ability to climb rated slope (X°)*** 12
Electrical System
Motor power (W)320
Battery capacity (Ah) 80*2
Charger output current (A) 8
Battery Compartment (L x W x H) (mm) 265 x 175 x 235 (Single Compartment)
Electric ver.09

Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest.
This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20℃~35℃, 136 kg occupant, brand new fully charged batteries and driving on the flat road.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further
notice.
