2-in-1 Pressure Relief

Combining the Tilt and Recline functions allow the user to achieve a nearly horizontal trunk position to redistribute pressure, facilitate transfers, perform postural adjustments, and undergo daily care (e.g., diaper changes).

Tilting increases the child’s comfort, promotes relaxation and pressure relief, and improves sitting tolerance. Tilting reduces the long-term gravitational impact on a child’s joints and increases their independence, encouraging them to participate in daily activities and engage with their peers.

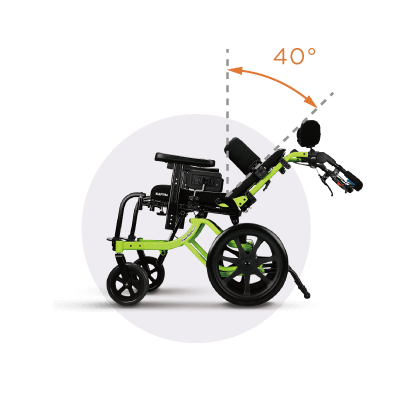

The recline function relieves hip pressure, manages postural hypotension, allows the child to rest in the chair, extends sitting endurance, and is easy for parents and caregivers to provide daily care assistance. The reclining mechanism is designed to minimize the effect of shearing force, ensure sitting stability, and prevent sliding out of the wheelchair.

An innovative spring system reduces sudden movements when operating the tilt and recline functions, significantly improving the user’s comfort and sense of security during postural changes.

Tilting increases the child’s comfort, promotes relaxation and pressure relief, and improves sitting tolerance. Tilting reduces the long-term gravitational impact on a child’s joints and increases their independence, encouraging them to participate in daily activities and engage with their peers.

The recline function relieves hip pressure, manages postural hypotension, allows the child to rest in the chair, extends sitting endurance, and is easy for parents and caregivers to provide daily care assistance. The reclining mechanism is designed to minimize the effect of shearing force, ensure sitting stability, and prevent sliding out of the wheelchair.

The recline function relieves hip pressure, manages postural hypotension, allows the child to rest in the chair, extends sitting endurance, and is easy for parents and caregivers to provide daily care assistance. The reclining mechanism is designed to minimize the effect of shearing force, ensure sitting stability, and prevent sliding out of the wheelchair.

The adaptive seating system allows a wide range of accessory options for the ultimate personalization. The back panel’s slide-slot design and side rail technology facilitate the addition of different headrests, armrests, and supports.

Armrests

Ergo Armpad​
PU Wide Armpad
PU Short Armpad​

Supports

Head Supports
Curved Headrest
Adjustable Headrest


Trunk Supports System
Vertical Adjustable Lateral Trunk Supports​
Multi-adjustable Lateral Trunk Supports​


Hip/Thigh Supports
Multi-adjustable Single Pad Hip/Thigh Supports​
Multi-adjustable Dual Pad Hip/Thigh Supports​


Medial Knee Supports


Lower Body Supports​
90° Footrests​
80° Footrests
Articulating Elevating Legrests
4D Adjustable Plastic Footplates​
4D Adjustable Aluminum Footplates​
Calf Pads​

Straps

Chest Strap
Harness​
2-point Pelvic Positioning Belt​
4-point Pelvic Positioning Belt​
Pelvic Belt (Metal Buckle)​
Pelvic Belt (Velcro)​
Shoulder Strap Guides
Thigh Strap
Calf Strap
Foot Straps​
Heel Loop

Brakes

Drum Brakes​
Push-to-lock Parking Brakes​

Other Accessories

Backpack Hook​
I.V. Pole
Tray Table​

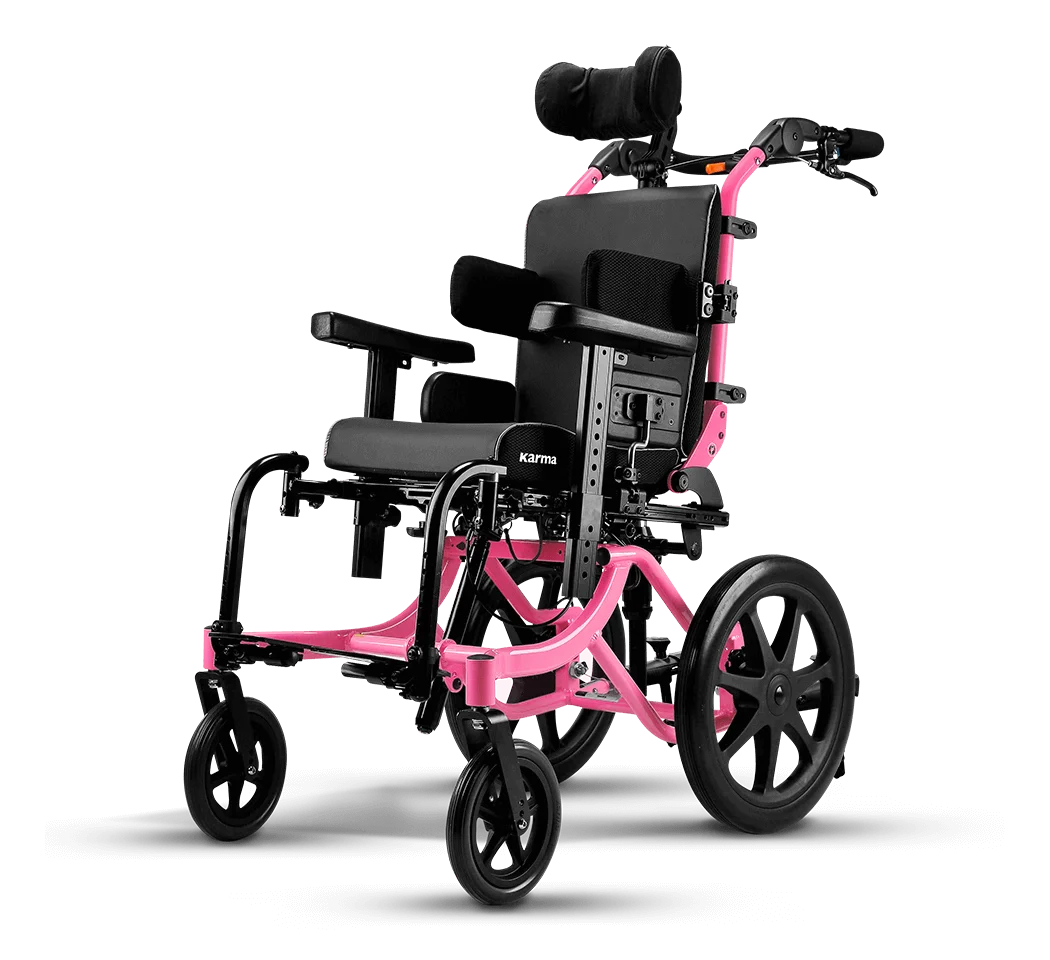

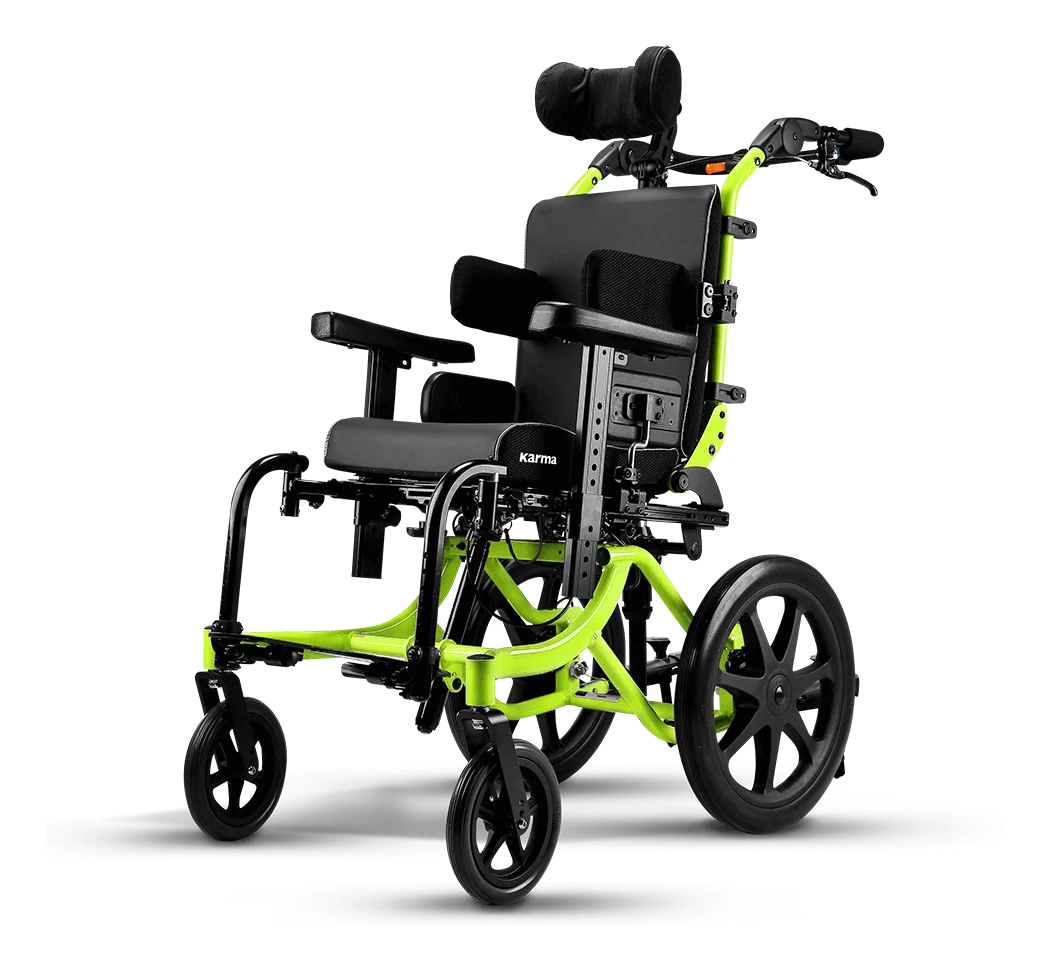

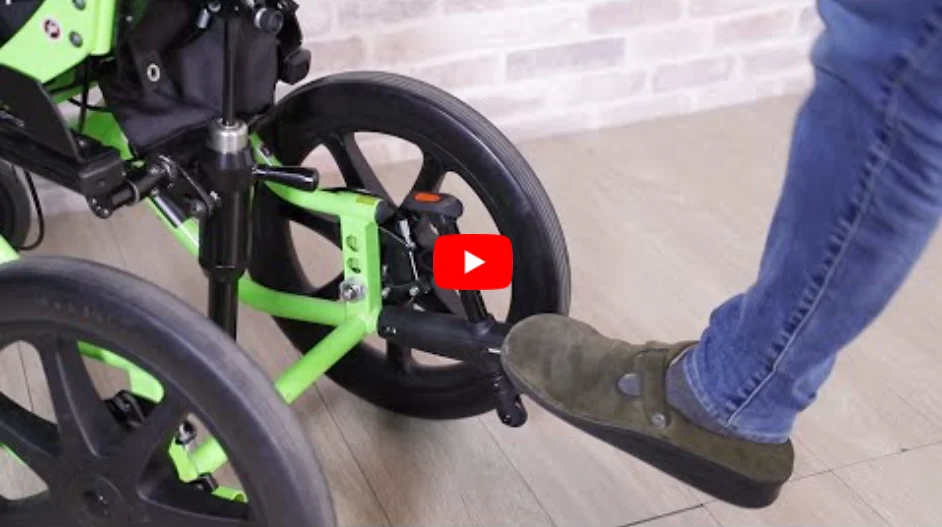

Standard-Anti-tippers

Designed for Caregivers

Stable and Comfortable

Maintaining a good sitting posture is essential for children to develop a neutral pelvis, prevent joint deformity, and participate in daily activities.

The curvature of the cushion matches the shape of the body, stabilizing posture and minimizing sliding.

Precisely adapt to user needs and comfort.

Enable users to comfortably maintain a hip abducted posture.

The curvature of the cushion matches the shape of the body, stabilizing posture and minimizing sliding. Sitting steadily is also less tiring, making participation in classroom activities and social interaction easier.

Precisely adapt to user needs and comfort.

Enable users to comfortably maintain a hip abducted posture. The use of a high-strength footrest encourages a safer sitting experience for children with increased muscle tone.

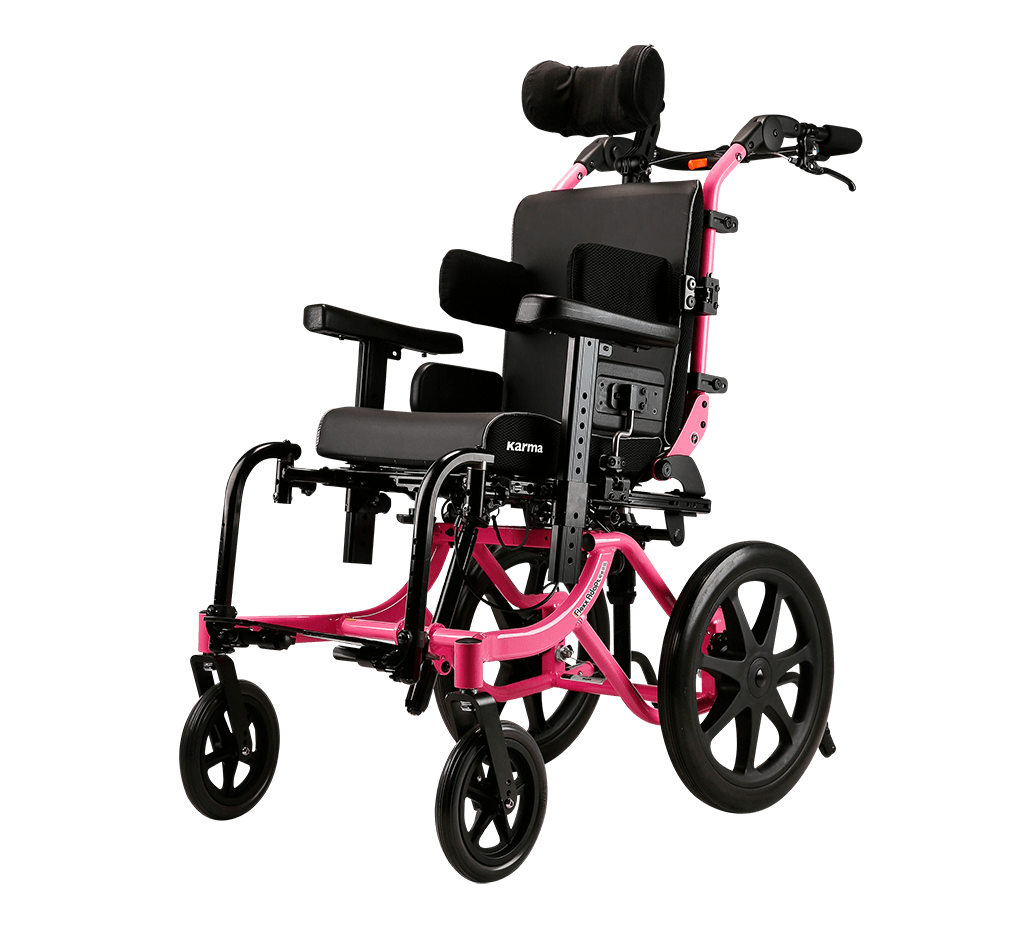

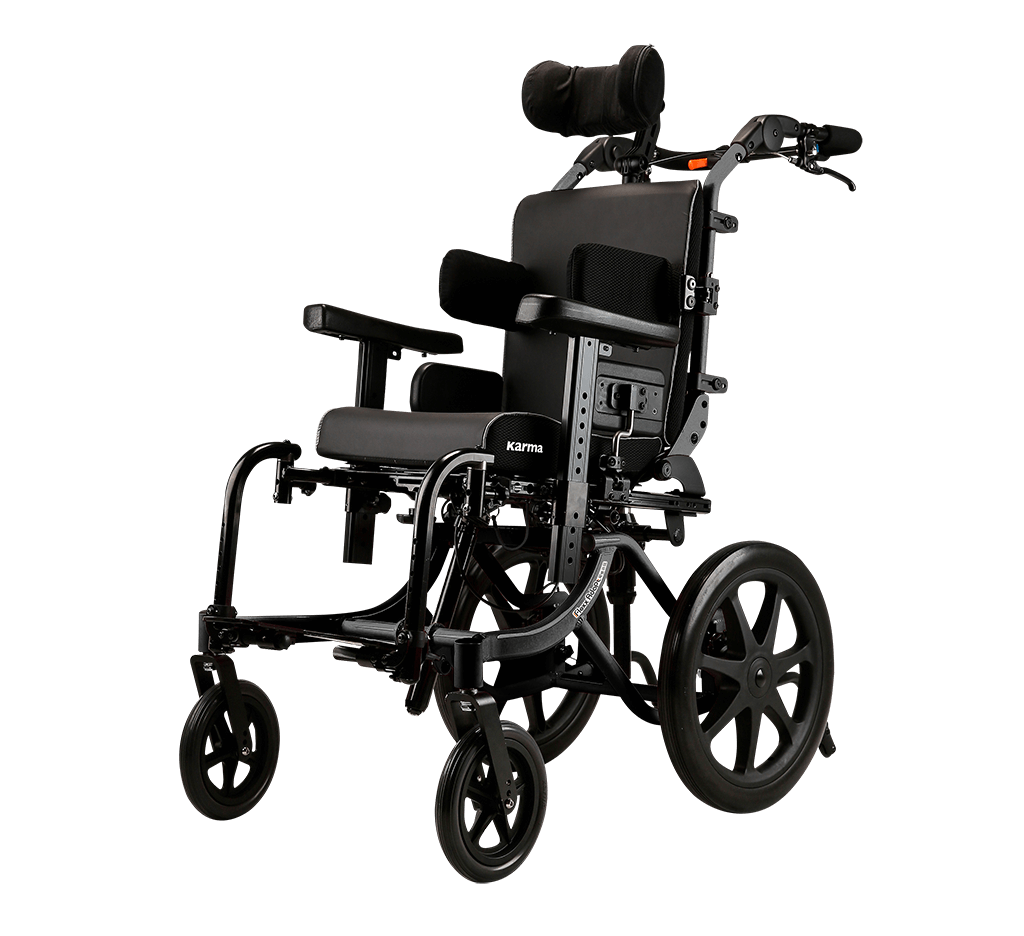

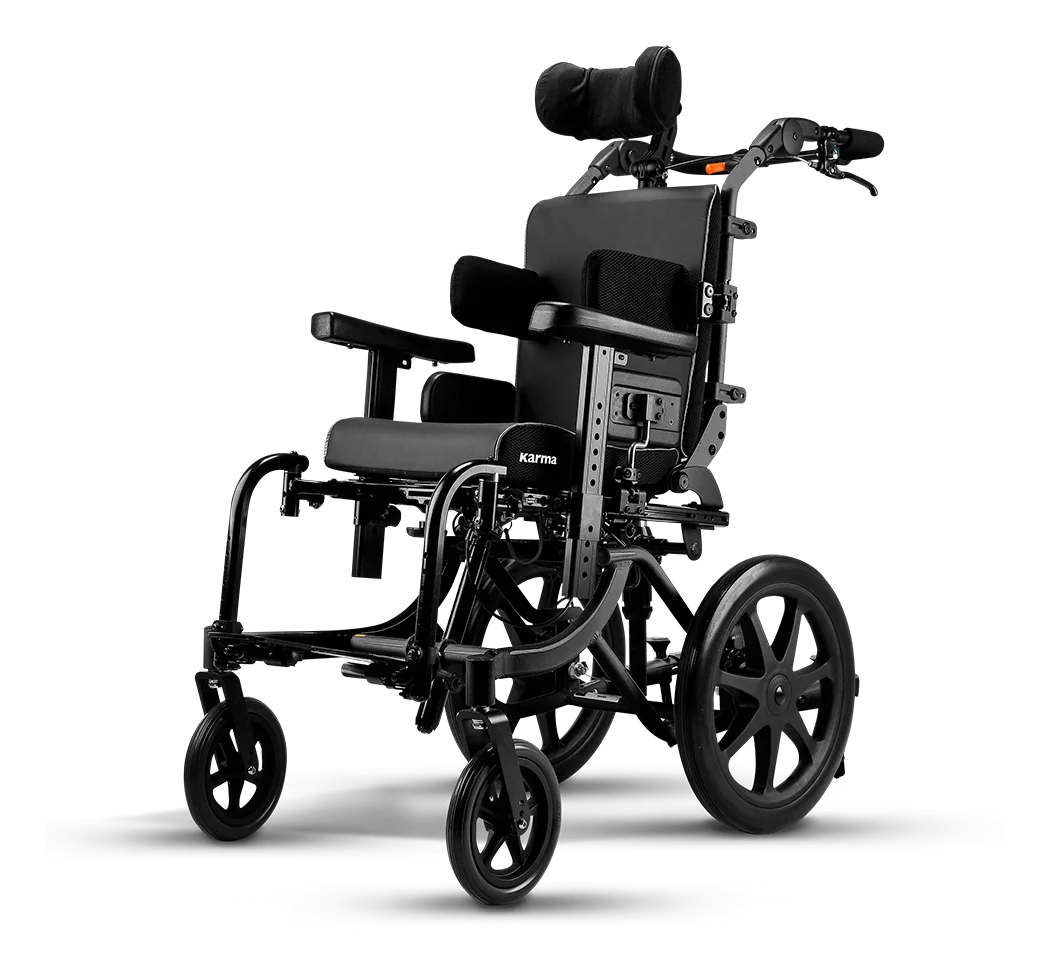

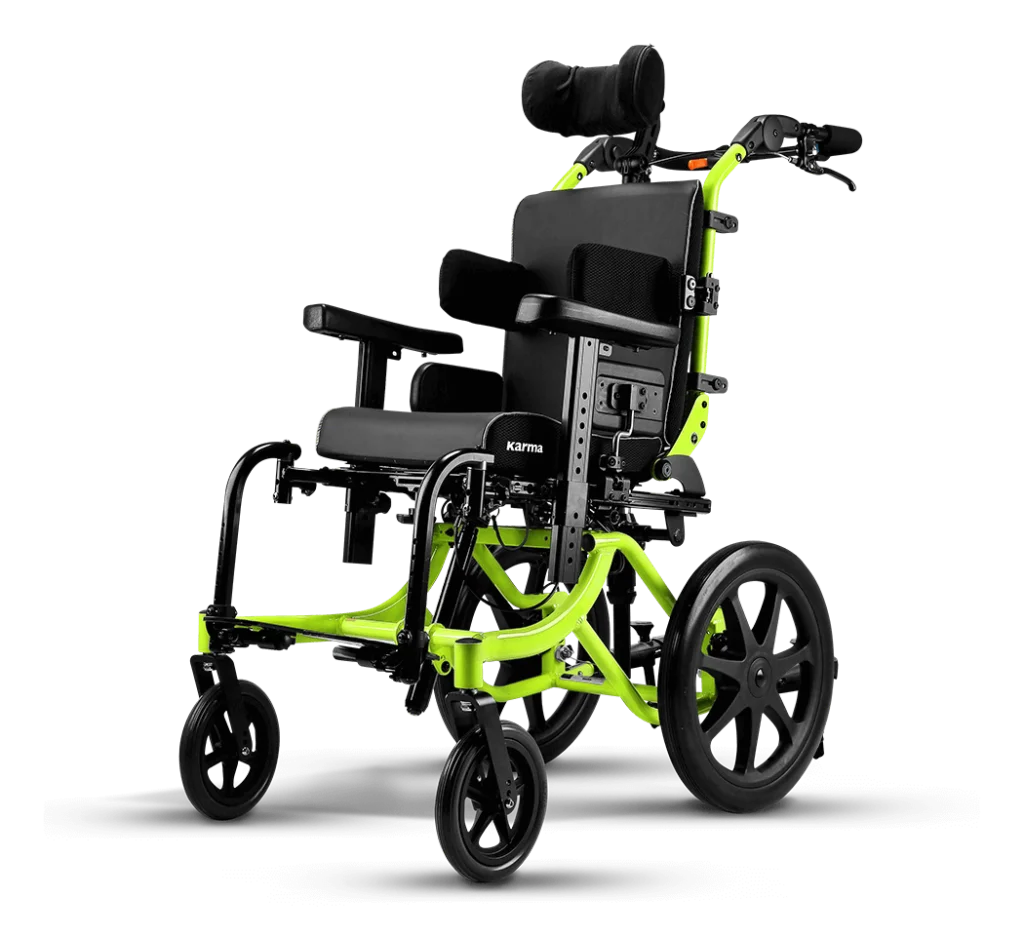

Frame Colors

Product ModelFlexx Adapt
MinimumMaximum
Nominal seat width (mm/in)* 255 / 10 355 / 14
Nominal seat depth (mm/in)** 255 / 9 380 / 15
Front caster / Rear wheel size (in) 6 / 16 8 / 16
Backrest height without cushion (mm) 400 550
Backrest height with cushion (mm) 350 500
Headrest height above seat (mm) 360 690
Armrest to seat distance without cushion (mm) 75 295
Armrest to seat distance with cushion (mm) 10 230
Front location of armrest structure (mm) 0 460
Seat surface height at front edge without cushion (mm)
430 480
Seat surface height at front edge with cushion (mm)
480530
Footrest to seat distance without cushion (mm) 85285
Footrest to seat distance with cushion (mm) 160 360
Effective seat width (mm) 290 390
Effective seat depth (mm) 285 410
Seat plane angle (X°) 0 45
Backrest angle (X°)040
Seat to backrest angle (X°) 90 135
Leg to seat angle (X°) 100 -
Overall length with legrest (mm) 1070 1385
Overall width (mm) 570 -
Overall height (mm) 1060 1190
Folded length (mm) 770-
Folded width (mm) 570-
Folded height (mm) 530-
Total mass (kg) 29.8-
Mass of the heaviest part (kg) 18.6-
Maximum user weight (kg) - 75
Minimum turning radius (mm) 940 -
Minimum turning radius without user (mm) 850-
Pivot width (mm) 1100 1500
Static stability downhill (X°) 13-
Static stability uphill (X°)18-
Static stability sideways (X°) 14-
Horizontal location of axle (mm) 90 235
Manual ver.00

* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.
