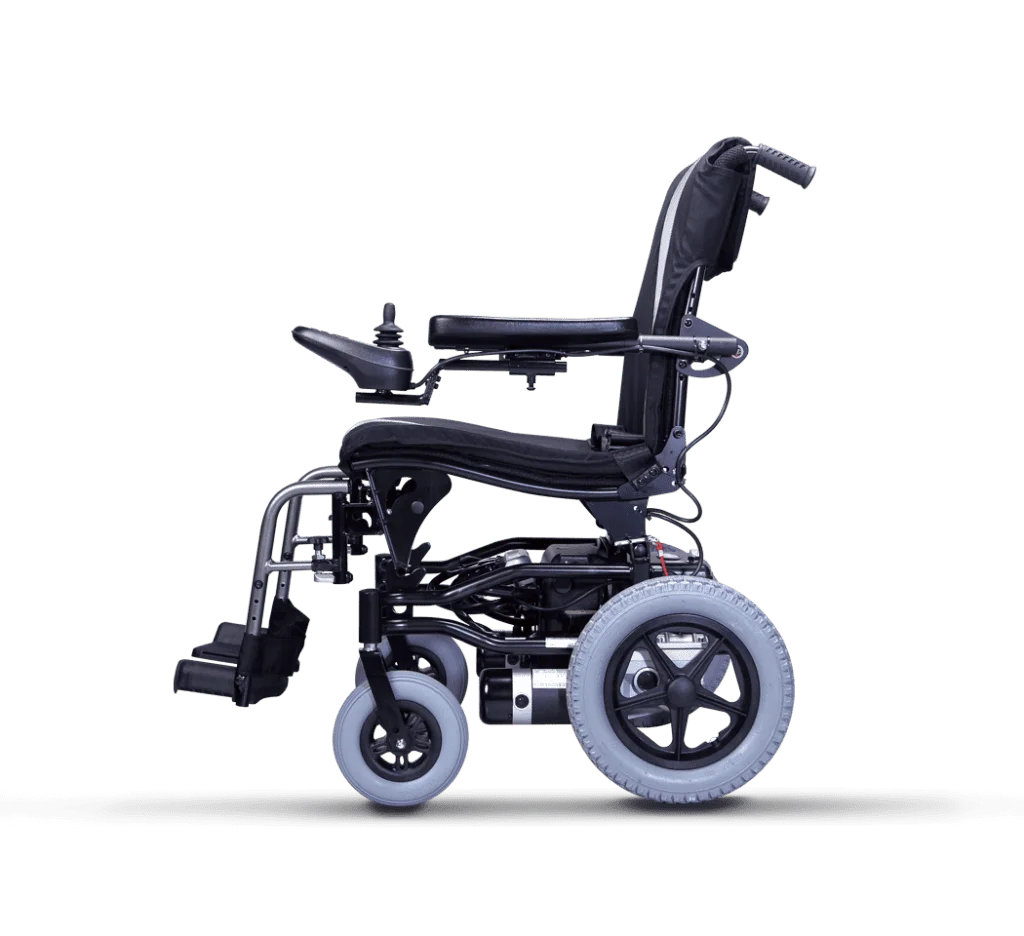

Product ModelKP-10.3S
Nominal seat width (in)18
Front x Rear wheel size (in)8 x 12
Maximum user weight (kg)120
Overall length with legrest (mm)1030 ~ 1075
Overall width (mm)620
Overall height (mm)905 ~ 935
Folded length (mm)660
Folded width (mm)620
Folded height (mm)155
Total mass (kg)51.3(22 Ah) / 54.9(36 Ah)
Total mass without batteries (kg)33.5(22 Ah) / 37.8(36 Ah)
Mass of the heaviest part (kg) 16.5(22 Ah) / 20.6(36 Ah)
Maximum speed forward (km)6
Drive range (km)14.9(22 Ah) / 18.7(36 Ah)
Minimum turning radius (mm) 885
Minimum turning radius without
user (mm)
755
Reversing width (mm)1050
Ground clearance (mm)100
Obstacle climbing (mm) 50
Static stability downhill (X°)25.5
Static stability uphill (X°)11
Static stability sideways (X°)20.5
Dynamic stability uphill (X°)6
Ability to climb rated slope (X°)6
Braking methodElectromagnetic Brake
Minimum braking distance from
max speed (mm)
1000
Motor power (W)200
Battery capacity (Ah) 22*2 / 36*2
Charger output current (A)4
Battery Compartment (L x W x H)
(mm)
180 x 80 x 165 (22 Ah) (Single Compartment)
200 x 135 x 155 (36 Ah) (Single Compartment)
Seat plane angle (X°) 12
Effective seat depth (mm) 475
Nominal seat depth (mm)460
Effective seat width (mm)450
Seat surface height at front edge
(mm)
540
Backrest angle (X°) 10 ~ 24
Seat to backrest angle (X°)88 ~ 102
Backrest height (mm)500
Headrest height above seat (mm)-
Leg to seat angle (X°) 90
Footrest to seat distance (mm)390 ~ 465
Armrest to seat distance (mm)200
Front location of armrest structure
(mm)
400 ~ 540
Electric ver.19


Remark :
* All the specifications specified in this section are estimated based on the following conditions: 20℃
~35℃, an 80 kg occupant, brand new fully charged batteries and driving on the flat road.
* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* Karma reserves the right to modify information herein without further notice.
