*The color of the wheelchair in this video may differ from the products supplied locally.

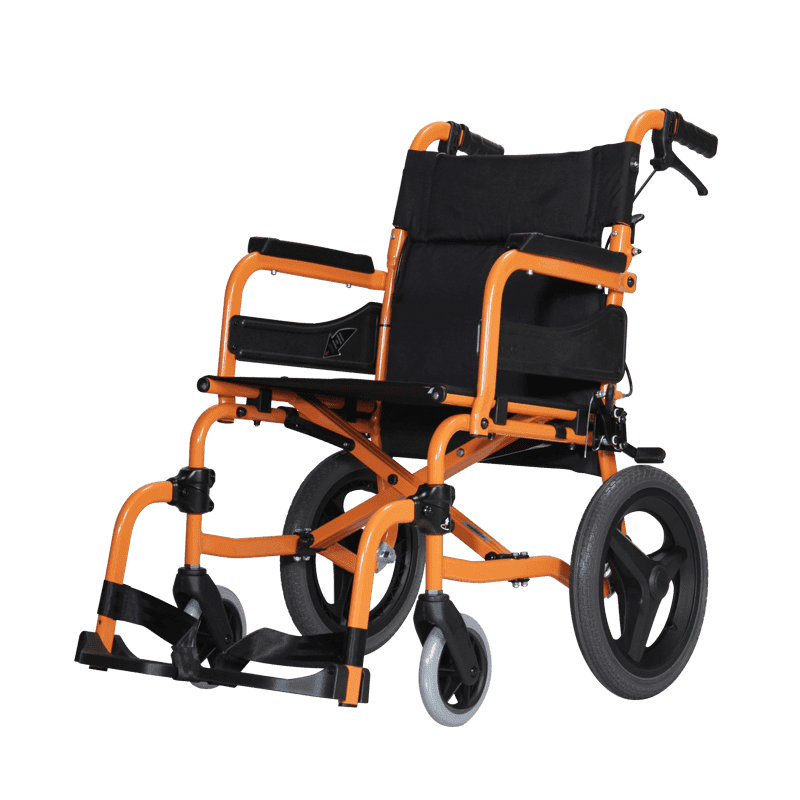

Frame Colors

Specification
Product Model SOMA 215 (SM-250.5)
Nominal seat width(mm) 425 425
Caster x Rear wheel size(in) 6 x 14 6 x 20
Maximum user weight(kg) 100
Overall length with legrest(mm) 905 ~ 910935 ~ 940
Overall width(mm) 605 595
Overall height(mm) 860860
Folded length(mm) 640710
Folded width(mm) 295265
Folded height(mm) 690 700
Total mass(kg)
10.2 11.2
Mass of the heaviest part (kg) 10.2 11.2
Handrim diameter(mm) N/A 420
Horizontal location of axle (mm)00
Minimum turning radius(mm) 475475
Minimum turning radius without user
(mm)
450450
Pivot width(mm)970 1030
Static stability downhill(X°) 15.216.2
Static stability uphill(X°) 11 13
Static stability sideways(X°) 14.5 14.4
Seat plane angle (X°) 88
Effective seat depth (mm) 460 460
Nominal seat depth(mm) 395395
Effective seat width(mm) 445445
Seat surface height at front edge (mm)
450450
Backrest angle (X°) 13 13
Seat to backrest angle(X°) 9696
Backrest height (mm) 410410
Leg to seat angle(X°) 9292
Footrest to seat distance (mm) 390 ~ 440390 ~ 440
Armrest to seat distance (mm) 220220
Front location of armrest structure
(mm)
290290

Remark :

* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* Karma reserves the right to modify information herein without further notice.
