Lower Seat Height

With 6” casters, Agile Plus offers a minimum seat height of just 41 cm.
From 410 mm (16”) to 435 mm (17”) with 6″ casters.
From 460 mm (18”) to 510 mm (20”) with 8″ casters.

Heel and Calf Strap

Standard separated heel and calf straps provide better leg support and smoother legrest swing-outs during side transfers.

3 Optional Brake Types

Push & Pull Brakes

Allows attendants to park the wheelchair without bending down to reach the wheel locks.

Basic Brakes

Simple, effective braking ensures smooth control and added security for caregivers.

Drum Brakes

Provides stronger stopping power and steady control for improved safety and confidence on slopes and uneven terrain.

Agile Plus
Nominal seat width (mm)410435460510410435460510410435460510410435460510
Nominal Seat Depth (inch)410
435
460
410 ~ 435
435 ~ 460		460
435 ~ 460		410
435
460
410 ~ 435
435 ~ 460		460
435 ~ 460		410
435
460
410 ~ 435
435 ~ 460		460
435 ~ 460		410
435
460
410 ~ 435
435 ~ 460		460
435 ~ 460
Front caster / Rear wheel size (in)6 / 146 / 208 / 148 / 24
Seat Surface Height at Front Edge (mm)410 ~ 435410 ~ 435460 ~ 510460 ~ 510
Backrest Height (mm)435
510
435 ~ 480		435
510
435 ~ 480		435
510
435 ~ 480		435
510
435 ~ 480
Armrest to seat distance (mm)220 ~ 300220 ~ 300220 ~ 300220 ~ 300
Footrest to seat distance (mm)330 ~ 405330 ~ 405380 ~ 480380 ~ 480
Total Mass (kg)12.5 - 13.012.6 - 13. 112.8 - 13.313.0 - 13.513. 1 - 13.613.2 - 13.713.4 - 13.913.6 - 14. 112.5 - 13.012.6 - 13. 112.8 - 13.313.0 - 13.514.2 - 14.714.3 - 14.814.5 - 15.014.7 - 15.2
Max. User Weight (kg)136136136136

Remark :
* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* KARMA reserves the right to modify information herein without furthernotice.

Support
Icon
Agile Series Catalogue
4.21 MB   1 file(s)

Get in Touch with KARMA Medical

The post AGILE PLUS The New Standard for Transferring Wheelchair first appeared on KARMA Medical.]]> SABER Sling Outdoor Explorer Power Wheelchair https://www.karmamedical.com/featured_item/sbr-sln/ Thu, 26 Jun 2025 05:36:07 +0000 https://www.karmamedical.com/?post_type=featured_item&p=56316

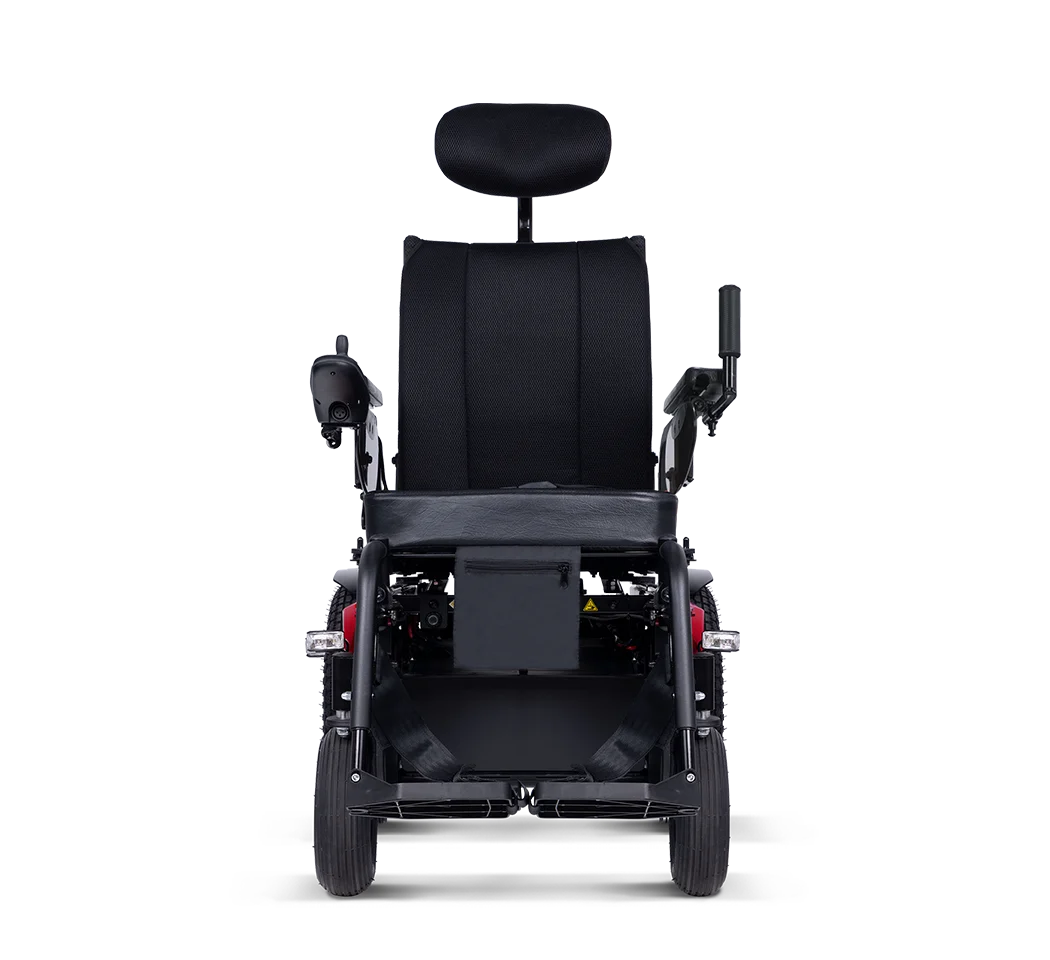

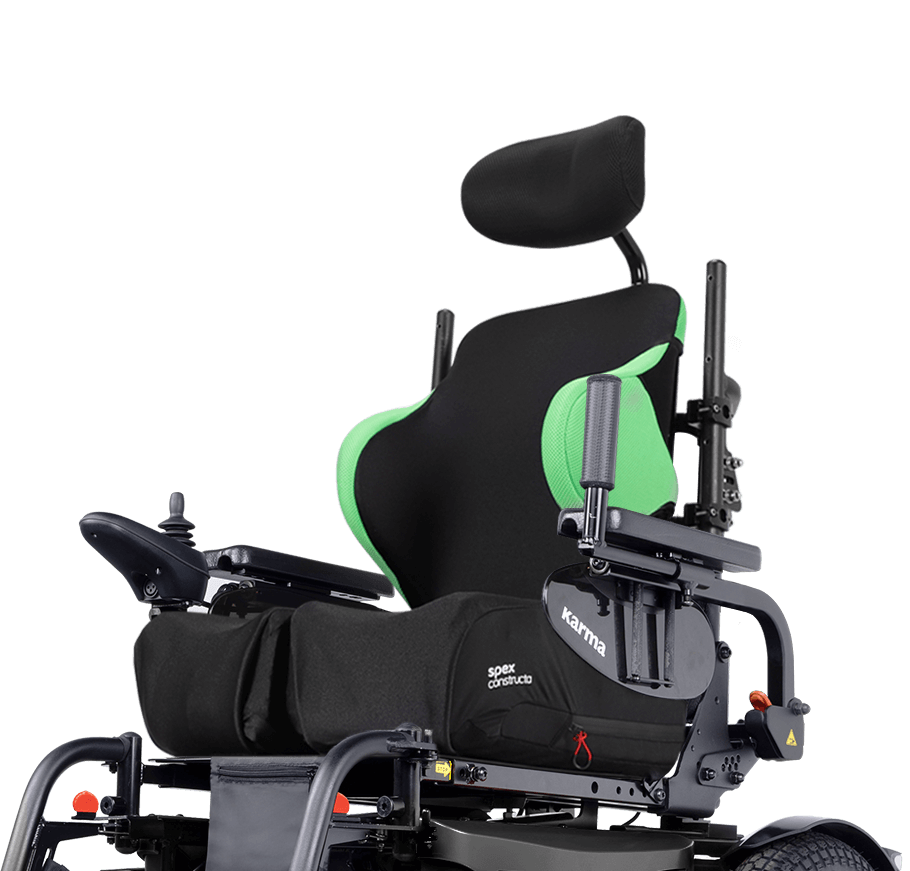

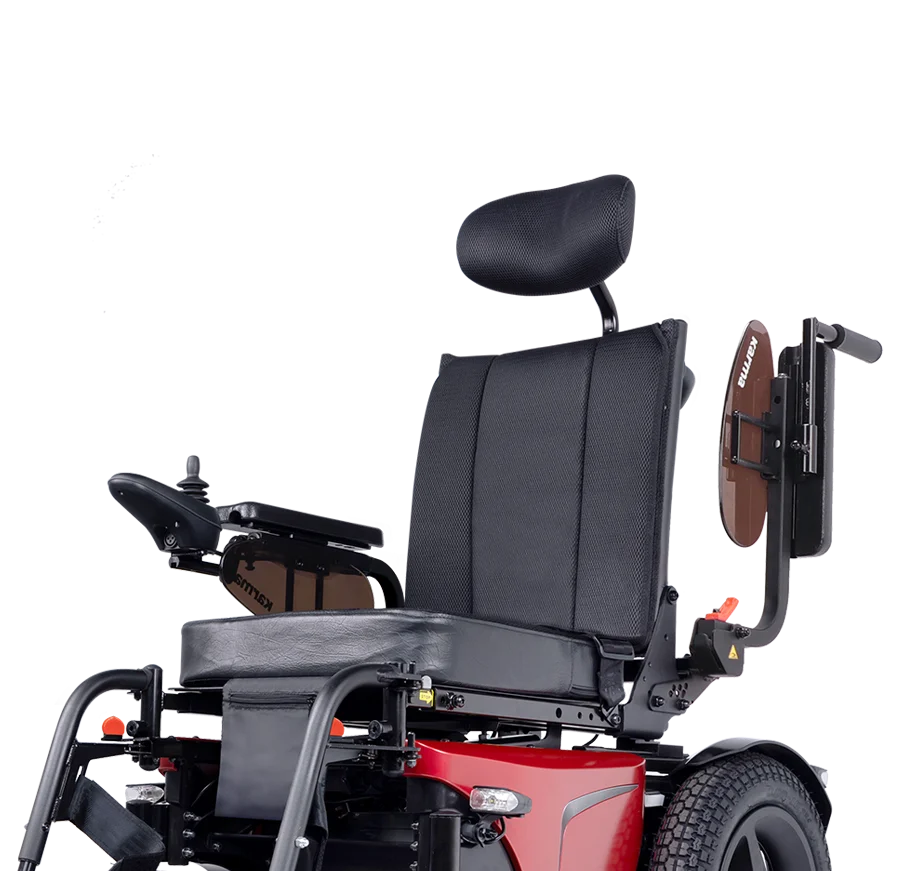

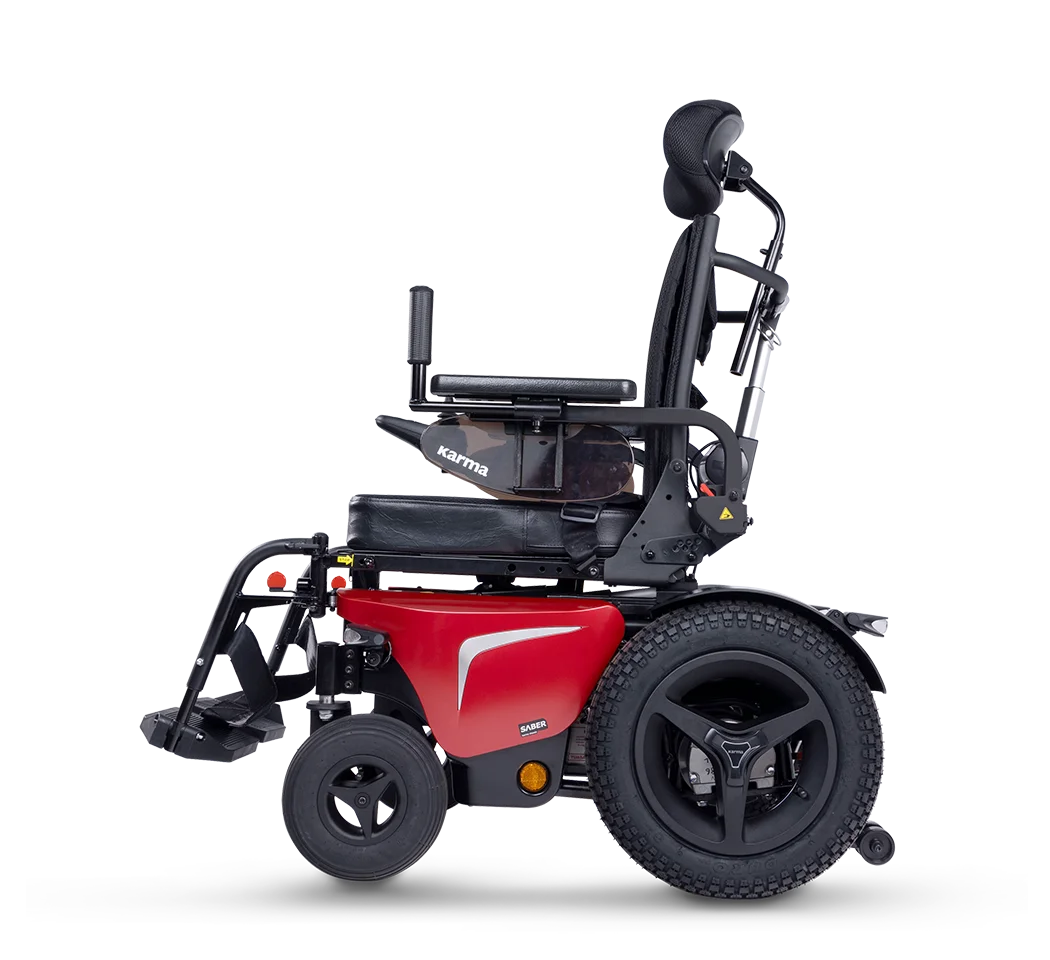

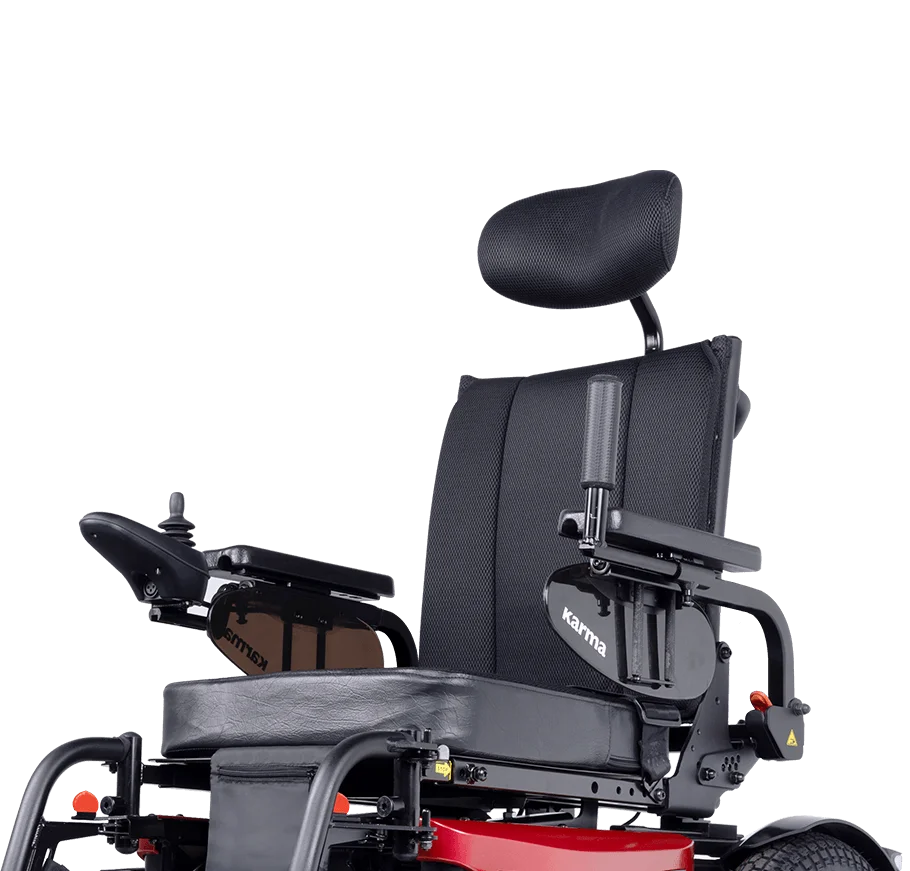

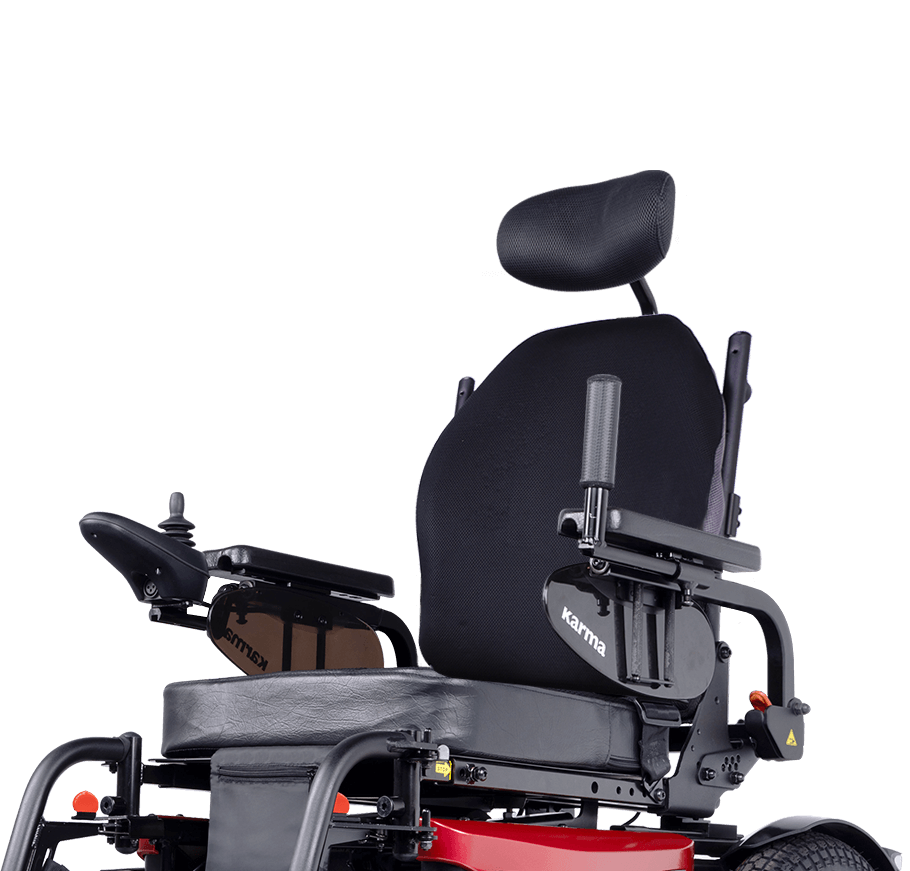

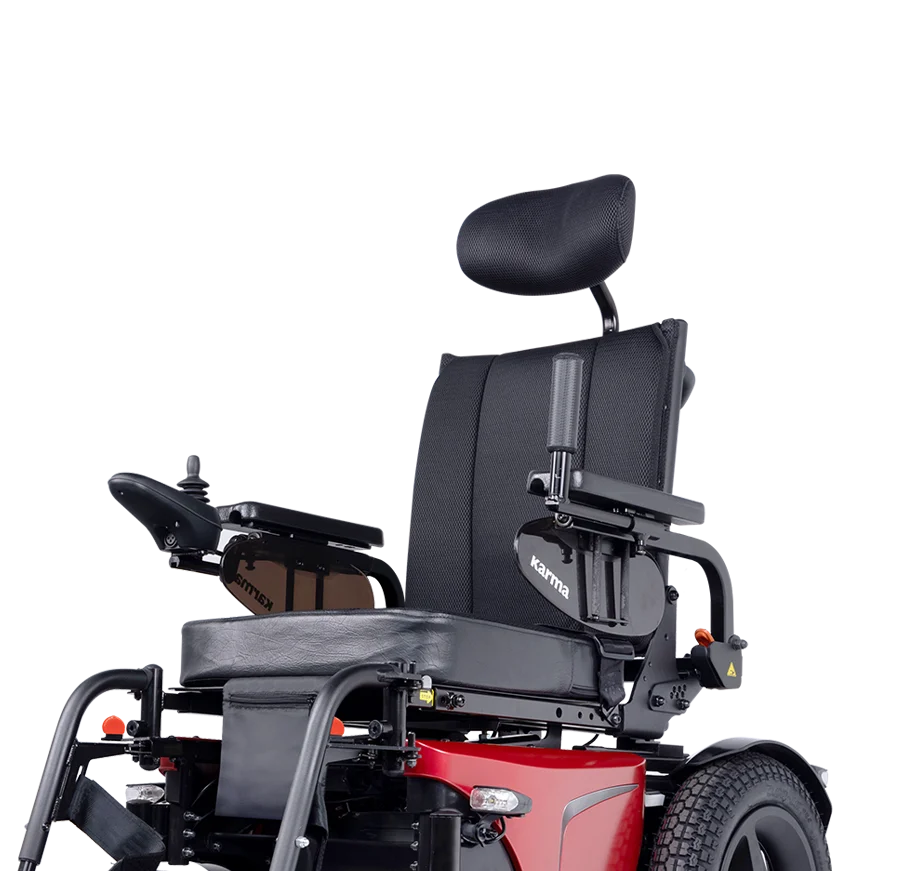

Born for the Outdoors
Saber Chassis

Friendly Design

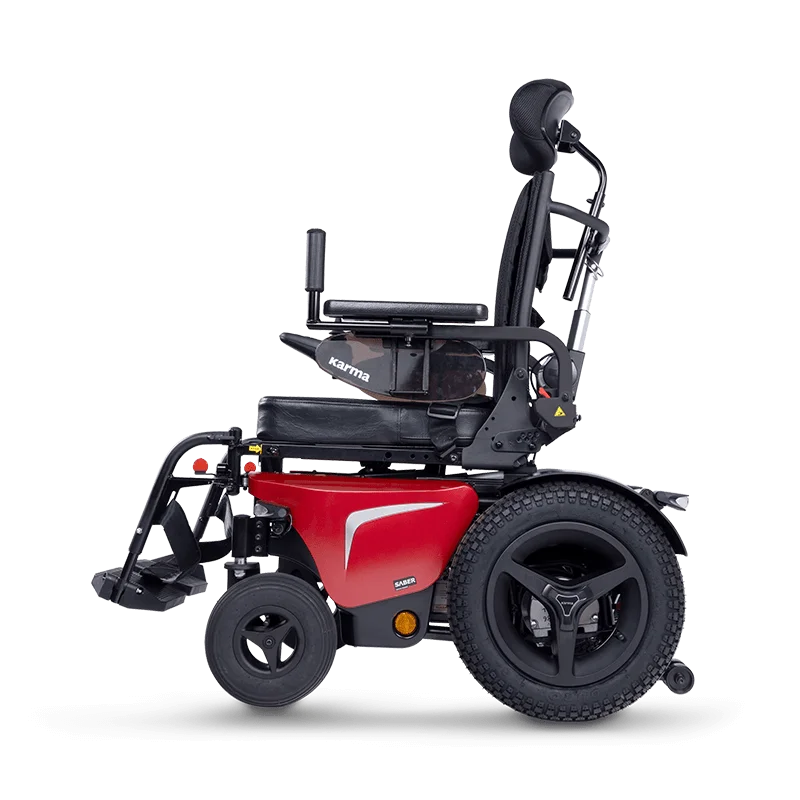

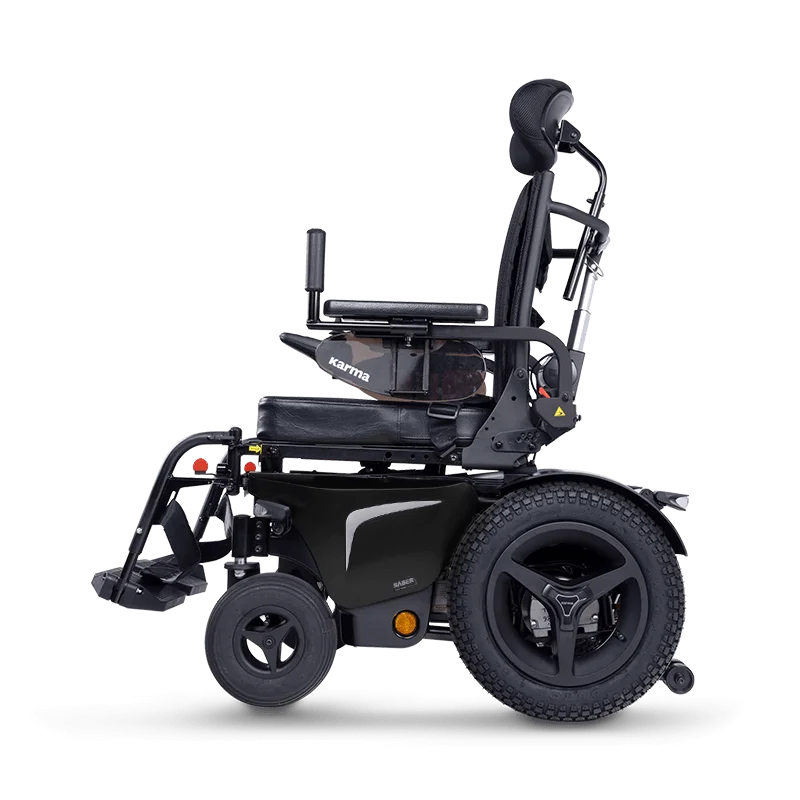

Casing Colors

Product NameSBR-SLN
Nominal seat width (mm)430480
Nominal seat depth (mm)400 ~ 475475 ~ 500
Backrest height without cushion (mm)525600
Backrest height with cushion (mm)455520
Headrest height above seat without cushion (mm)675 ~ 750
Headrest height above seat with cushion(mm)600 ~ 675
Armrest to seat distance without cushion (mm)270 ~ 370
Armrest to seat distance with cushion (mm)190 ~ 290
Front location of armrest structure (mm)0 ~ 380
Seat surface height at front edge without cushion (mm)465
Seat surface height at front edge with cushion (mm) (drive only)515
Footrest to seat distance without cushion (mm)346 ~ 446
Footrest to seat distance with cushion (mm)420 ~ 520
Effective seat width (mm)450 ~ 535485 ~ 535
Effective seat depth (mm)400 ~ 475475 ~ 500

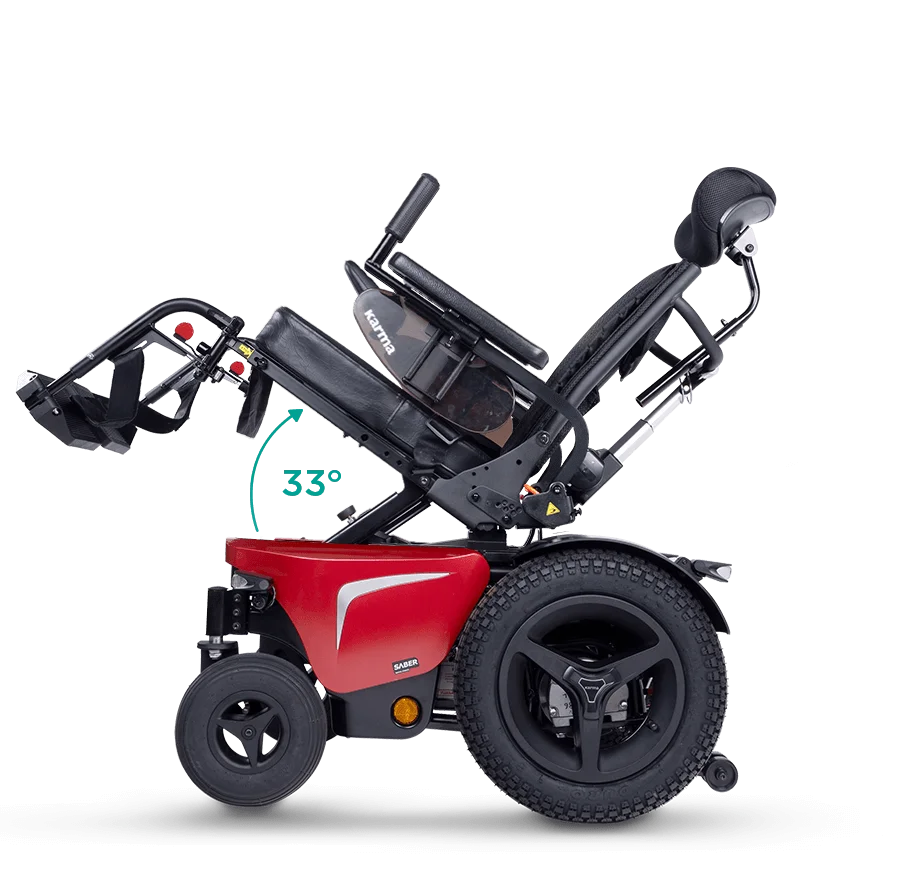

Seat plane angle (X°)3 ~ 36
Backrest angle (X°)0 ~ 32

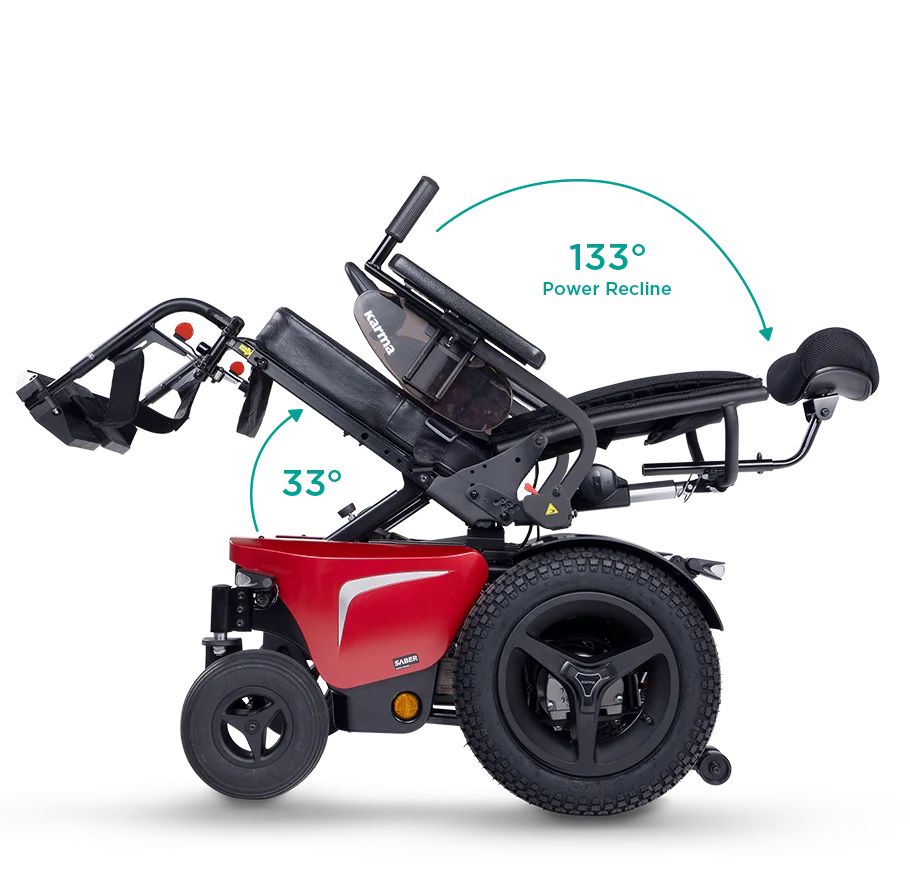

Seat to backrest angle (X°) (without cushion)97 ~ 134
Seat to backrest angle (X°) (with cushion)96 ~ 133
Leg to seat angle (X°)117
Front x Rear wheel size (in)9 x 16
Overall length with legrest (mm)1130 ~ 1185
Overall width (mm)626 ~ 680
Overall height (mm)980 ~ 13101070 ~ 1310
Folded length (mm)890
Folded width (mm)626
Folded height (mm)720
Total mass (kg)102 (Drive only)
105 (TR)
Total mass without batteries (kg)72 (Drive only)
75 (TR)
Mass of the heaviest part (kg)71 (Drive only)
73 (TR)
Maximum user weight (kg)136
Drive range (km)26.5 (50Ah) / 42.4 (80Ah)
Maximum speed forward (km)13
Minimum braking distance from max speed (mm)2000
Obstacle climbing (mm)65
Ground clearance (mm)60
Minimum turning radius (mm)1035
Minimum turning radius without user (mm)905
Reversing width (mm)1190
Static stability downhill (X°)18
Static stability uphill (X°)18
Static stability sideways (X°)10
Dynamic stability uphill (X°)6
Ability to climb rated slope (X°)12
Motor power (W)400/320 (optional)
Battery capacity (Ah)50*2 / 80*2
Charger output current (A)6/8
Battery Compartment (L x W x H) (mm)342 x 264 x 221
Electric ver.00

Remark :
*Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front e nd of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20 ℃~35 ℃, 136kg occupant, brand new fully charged batterie s and driving on the flat road.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information he rein without further notice.

Power Wheelchair Measurement Method Support

Get in Touch with KARMA Medical

The post SABER Sling Outdoor Explorer Power Wheelchair first appeared on KARMA Medical.]]> ERGO LITE 2 Tall Ultra Lightweight Folding Wheelchair for Plus-Size Users https://www.karmamedical.com/featured_item/km-2512-tl/ Thu, 30 Jan 2025 16:13:35 +0000 https://www.karmamedical.com/?post_type=featured_item&p=54648

What is ERGO LITE for?

_____

Optional Accessories

Ergo Anti-tipper

Foldable Headrest

Cup Holder

Net Bag

Harness

Pelvic Belt

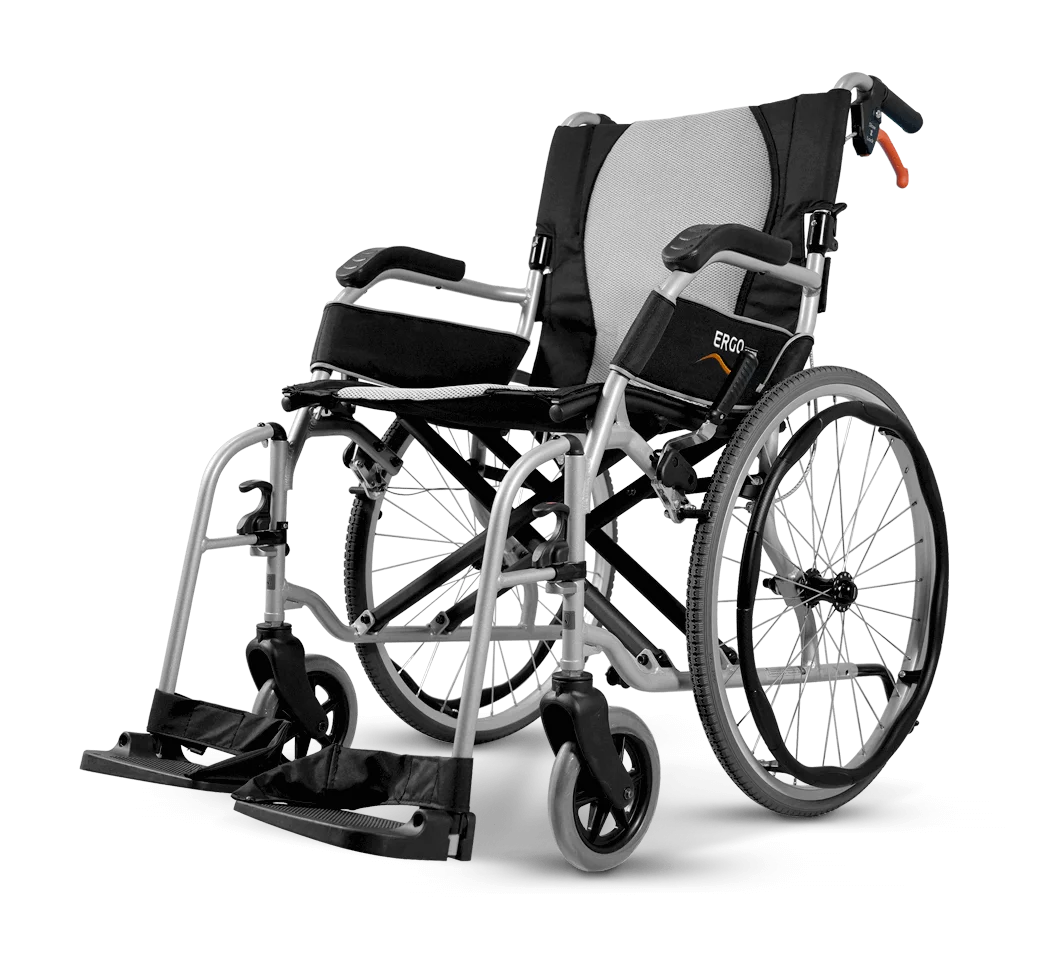

Product ModelErgo Lite 2 (KM-2512TL)
Nominal seat width (mm/in)*410/16410/16460/18460/18510 / 20510 / 20
Nominal seat depth (mm/in)**435/17 435/17 435/17435/17435 / 17435 / 17
Front caster / Rear wheel size (in)7/147/227/147/227 / 147 / 22
Backrest height (mm)435435435435435435
Headrest height above seat (mm)N/AN/AN/AN/AN/AN/A
Armrest to seat distance (mm)210210210210210210
Front location of armrest structure (mm)325325325325325325
Seat surface height at front edge (mm)510510510510510510
Footrest to seat distance (mm)410-460410-460410-460410-460410-460410-460
Effective seat width (mm)370370420420470470
Effective seat depth (mm)435435435435435435
Seat plane angle (X°)666666
Backrest angle (X°)151515151515
Seat to backrest angle (X°)989898989898
Leg to seat angle (X°)100100100100100100
Overall length with legrest (mm)990–1005990–10051015–10301015–10301015–10301015–1030
Overall width (mm)565575615625665700
Overall height (mm)950950950950950950
Folded length (mm)720 (Q)***
647 (F)****		720 (Q)
755 (F)		720 (Q)
647 (F)		720 (Q)
755 (F)		720 (Q)
647 (F)		720 (Q)
755 (F)
Folded width (mm)230 (Q)
240 (F)		260 (Q)
280 (F)		230 (Q)
240 (F)		260 (Q)
280 (F)		260 (Q)
270 (F)		260 (Q)
280 (F)
Folded height (mm)690 (Q)
745 (F)		690 (Q)
745 (F)		725 (Q)
745 (F)		725 (Q)
745 (F)		760 (Q)
785 (F)		760 (Q)
785 (F)
Total mass (kg)9.9 (Q)
9.8 (F)		11.2 (Q)
11.1 (F)		10.1 (Q)
9.9 (F)		11.4 (Q)
11.3 (F)		10.4 (Q)
10.3 (F)		11.9 (Q)
11.8 (F)
Mass of the heaviest part (kg)6.9 (Q)
8.7 (F)		7.1 (Q)
10.1 (F)		7.1 (Q)
8.8 (F)		7.2 (Q)
10.2 (F)		7.4 (Q)
9.2 (F)		7.7 (Q)
10.7 (F)
Maximum user weight (kg)115115115115115115
Minimum turning radius (mm)915915930930930930
Minimum turning radius without user (mm)740740780780800800
Pivot width (mm)105010501120112011601160
Static stability downhill (X°)121212121212
Static stability uphill (X°)141414141414
Static stability sideways (X°)111111111414
Handrim diameter (mm)N/A470N/A470N/A470
Horizontal location of axle (mm)161616161616
Manual Ver.26
Remark :

* Nominal seat width is measured the width of seat cushion at 120 mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Q = Quick-release axles
**** F = Fixed axles
– The actual product specifications differ from the data in the table by ±10 mm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice. configurations.
– Karma reserves the right to modify information herein without further notice.

Manual Wheelchair Measurement Method
Download
Icon
UserManual _EN_Ergo Lite Series-ver.26
1.19 MB   1 file(s)
Icon
Ergo Lite Series Catalogue
1.05 MB   1 file(s)
Icon
Ergo Lite 2 TL Catalogue
1.05 MB   1 file(s)

Get in Touch with KARMA Medical

The post ERGO LITE 2 Tall Ultra Lightweight Folding Wheelchair for Plus-Size Users first appeared on KARMA Medical.]]> MORGAN M LECTUS Best in Class Indoor-Outdoor Performance https://www.karmamedical.com/featured_item/morgan-m-lectus/ Mon, 09 Sep 2024 07:12:21 +0000 https://www.karmamedical.com/?post_type=featured_item&p=52308

Chassis


Morgan M Chassis
Mid-Wheel Drive Performance

Six-Wheel Independent Suspension System

Capable of climbing obstacles up to 75mm and handling smooth slopes of up to 12 degrees, the Morgan M independent suspension system offers exceptional driving performance over uneven surfaces.

Superior Indoor and Outdoor Performance

Morgan M's silent but powerful high-performance motors deliver incredible outdoor performance, offering a 33 km* driving range when paired with the Lectus seat and a maximum speed of 12 km/h. For indoor use, the narrow 600 mm total width and small turning radius make Morgan M a nimble navigator.


*Theoretical maximum driving range, as determined by ISO 7176-4 testing;actual driving range will vary based on battery size, motor selection, user weight, driving habits, environmental conditions, etc.

Various Options

Morgan M's battery box is compatible with up to 80 Ah batteries to maximize daily journeys.


The LED lights ensure safe driving at night.

Power Positioning Functions

45° Tilt-in-Space

The center of gravity tilt system ensures pressure relief and a high degree of comfort. The tilt can also be used when traveling down a slope to compensate for the negative seat angle. This provides a safer and more stable seating position.

177° Biomechanical Recline

Provide a passive range of motion to the hips and increase sitting tolerance.

173° Biomechanical Elevating Legrest

Automatically extend in length as they elevate, easing pressure on the knee to provide comfort and stability.

300 mm Lift

300 mm seat lift empowers users to interact with the world around them.

Product Model
MGNM-LTS
Seating SystemMinimum Maximum
Nominal seat width (mm)* with Lectus cushion420 / 470 / 520
Nominal seat depth (mm)** with Lectus cushion425 – 600
Backrest height without cushion (mm)658688
Backrest height with cushion (mm)570600
Headrest height above seat without cushion (mm)8701000
Headrest height above seat with cushion (mm)790920
Armrest to seat distance without cushion (mm)240360
Armrest to seat distance with cushion (mm)150270
Front location of armrest structure without
cushion (mm)		0460
Front location of armrest structure with
cushion (mm)		0420
Seat surface height at front edge without cushion (mm)485785
Seat surface height at front edge with cushion (mm)590890
Footrest to seat distance without cushion (mm)300595
Footrest to seat distance with cushion (mm)405595
Effective seat width (mm)420520
Effective seat depth (mm)425600
Seat plane angle (X°) (power tilt)348
Backrest angle (X°)-4°93°
Seat to backrest angle (X°) (without cushion)93°180°
Seat to backrest angle (X°) (with cushion)80°177°
Leg to seat angle (X°)98°173°
Driving CharacteristicsMinimum Maximum
Front caster size2.50/2.00 -4 (8")
Drive wheel size3.00 -8 (14")
Rear caster size2.00/1.00 -4 (6")
Overall length with legrest (mm)12402120
Overall width (mm)620700
Overall height (mm)11801480
Folded length (mm)890-
Folded width (mm)620700
Folded height (mm)1115-
Total mass (kg)-209
Total mass without batteries (kg)155
Mass of the heaviest part (kg)152
Maximum user weight (kg)136
Drive range (km)³33
Maximum speed forward (km/h)6 / 10 / 12
Minimum braking distance from max speed (mm)2900-
Obstacle climbing (mm)75
Ground clearance (mm)80-
Minimum turning radius (mm)895-
Minimum turning radius without user (mm)835-
Reversing width (mm)1240-
Static stability downhill (X°)15°
Static stability uphill (X°)11°
Static stability sideways (X°)15°
Dynamic stability uphill (X°)6°
Ability to climb rated slope (X°)⁴12°
Electrical System
ControllerR-net
Motor power (W)AMT, 4-pole, 350 W
Battery capacity (Ah)80 x 2 / 50 x 2 (optional)
Charger output current (A)8
Battery Compartment (L x W x H) (mm)(Front) 238 x 170 x 215 mm

(Rear) 238 x 170 x 190 mm

Remark :

* Nominal seat width is measured the width of seat cushion at 120 mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range is estimated based on the following conditions: 20℃~35℃, 136 kg occupant,
and brand new fully charged batteries and driving on the flat road.
**** Ability to climb rated slope is estimated based on the following conditions: 20℃~35℃, 136 kg occupant, and brand new fully charged batteries.
– The actual product specifications differ from the data in the table by ±10 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.

Power Wheelchair Measurement Method
Download
Icon
User Manual_Morgan M Lectus_Ver.02
14.45 MB   1 file(s)

Get in Touch with KARMA Medical

Crash Test Approved

Morgan M Lectus is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.

→ Learn more about Wheelchair Safety

The post MORGAN M LECTUS Best in Class Indoor-Outdoor Performance first appeared on KARMA Medical.]]> LEON R SLING Outstanding Outdoor Performance https://www.karmamedical.com/featured_item/leon-r-sling/ Mon, 17 Oct 2022 01:58:31 +0000 https://www.karmamedical.com/?post_type=featured_item&p=43550

Chassis


Leon Chassis
Rear-Wheel Drive Performance


Outstanding Outdoor Performance

With a maximum speed of 12 km/h, the powerful motors can overcome rough terrain with incredible control. Optional 80 Ah batteries provide an extended driving range of up to 44 km.

Superior Comfort

Leon chassis is equipped with 4-wheel independent suspension for extra stability when driving over uneven terrain and climbing obstacles.

Universal Parts

The Leon chassis shares 90% of its components between the front- and rear-wheel drive configurations, simplifying maintenance and logistics.

Seating System

Standard Seat Sling

Karma designed its Sling seat for users with low-to-medium clinical needs. The adjustable seat frame and optional power positioning functions provide moderate support, while flip-back armrests simplify the transfer process.

Wide Range of Options and Accessories

Headrests

Contoured Headrest​

Legrests

Elevating Legrests with Calf Support
Amputee Legrests

Controls

R-net / CJSM
VR2
Ergo Attendant Control
Swing Away Controller Bracket

Other Accessories

Angle Sensor
Tray Table
Handle Bar
Gyro

Side Frame Colors

Product Model
LENR1.1-SLN
Seating System17’’19’’
Nominal seat width (mm)*430480
Nominal seat depth (mm/in)**400 – 475 (in 25 mm
increments)		475 – 500 (in 25 mm
increments)
Backrest height without cushion (mm)545/625545/625
Backrest height with cushion (mm)465/545465/545
Headrest height above seat (mm)N/AN/A
Armrest to seat distance without cushion (mm)270 – 370270 – 370
Armrest to seat distance with cushion (mm)190 – 290190 – 290
Front location of armrest structure (mm)190 – 470240 – 520
Seat surface height at front edge without cushion (mm)460460
Seat surface height at front edge with cushion (mm)540540
Footrest to seat distance without cushion (mm)300 – 400300 – 400
Footrest to seat distance with cushion (mm)380 – 480380 – 480
Effective seat width (mm)430 – 520450 – 520
Effective seat depth (mm)400–475 (in 25 mm
increments)		475–500 (in 25 mm
increments)
Seat plane angle (X°) (fixed angle)3/6/93/6/9
Seat plane angle (X°) (power tilt)3-21
5-23
6-24
8–26		3-21
5-23
6-24
8–26
Backrest angle (X°)2 – 302 – 30
Seat to backrest angle (X°) (power recline)90–12290–122
Seat to backrest angle (X°) (manual recline)0 – 1190 – 119
Leg to seat angle (X°)109109
Driving Characteristics17’’19’’
Drive wheel size 3.00 -8 (14")
Front caster size 2.80/2.50 -4 (9")
Overall length with legrest (mm)1140 – 11801140 – 1180
Overall width (mm) 630 – 690630 – 690
Overall height (mm) 890 – 960890 – 960
Folded length (mm)885885
Folded width (mm)630630
Folded height (mm) 890890
Total mass (kg) 146(80Ah)146(80Ah)
Total mass without batteries (kg) 9292
Mass of the heaviest part (kg)89.589.5
Maximum user weight (kg)136136
Drive range (km)³44 (80Ah)44 (80Ah)
Maximum speed forward (km/h)6/10/12
Minimum braking distance from max speed (mm)21002100
Obstacle climbing (mm)5050
Ground clearance (mm)7070
Minimum turning radius (mm)985985
Minimum turning radius without user (mm)895895
Reversing width (mm)13001300
Static stability downhill (X°)1616
Static stability uphill (X°)9.89.8
Static stability sideways (X°)14.514.5
Dynamic stability uphill (X°)66
Ability to climb rated slope (X°)⁴1212
Electrical System
ControllerVR2/R-net (Optional)
Motor power (W)450450
Battery capacity (Ah)80 x 280 x 2
Charger output current (A)6 / 86 / 8
Battery Compartment (L x W x H) (mm)350 x 270 x 240350 x 270 x 240

Manual ver.02


* Nominal seat width is measured the width of seat cushion. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range is estimated based on the following conditions: 20℃~35℃, 136 kg occupant, brand new fully charged batteries and driving on the flat road.
**** Ability to climb rated slope is estimated based on the following conditions: 20℃~35℃, 136 kg occupant, and brand new fully charged batteries.
– The actual product specifications differ from the data in the table by ±10 mm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.

POWER WHEELCHAIR MEASUREMENT METHOD
Download
Icon
User Manual_Leon R Sling_Ver.02
2.25 MB   1 file(s)
Icon
Leon Series Catalogue
1.91 MB   1 file(s)

Get in Touch with KARMA Medical

Crash Test Approved

Leon Sling is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.

→ Learn more about Wheelchair Safety

The post LEON R SLING Outstanding Outdoor Performance first appeared on KARMA Medical.]]> LEON F VERSUS Outstanding Outdoor Performance https://www.karmamedical.com/featured_item/leon-f-versus/ Thu, 22 Sep 2022 05:43:11 +0000 https://www.karmamedical.com/?post_type=featured_item&p=42863

Chassis


Leon F Chassis
Front-Wheel Drive Performance

Outstanding Outdoor Performance

With a maximum speed of 12 km/h, the powerful motors can overcome rough terrain with incredible control. Optional 80 Ah batteries provide an extended driving range of up to 39 km.

Superior Comfort

Leon chassis is equipped with 4-wheel independent suspension for extra stability when driving over uneven terrain and climbing obstacles.

Universal Parts

The Leon chassis shares 90% of its components between the front- and rear-wheel drive configurations, simplifying maintenance and logistics.

Seating System

Rehab Seat Versus

The Versus seating system offers an extensive range of seat dimension adjustability, integration of up to four power positioning functions, and compatibility with after-market backrests. The capacity to easily upgrade or reconfigure Versus to meet specific user needs makes it a practical and sustainable choice.​

Multiple Power Positioning Functions

300 mm seat lift empowers users to interact with the world around them.

Provides optimal pressure relief.

Provide a passive range of motion to the hips and increase sitting tolerance.

Automatically extend in length as they elevate, easing pressure on the knee to provide comfort and stability.

300 mm seat lift empowers users to interact with the world around them.

Provides optimal pressure relief.

Provide a passive range of motion to the hips and increase sitting tolerance.

Automatically extend in length as they elevate, easing pressure on the knee to provide comfort and stability.

Wide Range of Options and Accessories

Headrests

Lectus Headrest​
Contoured Headrest​
Multi-Adjustable Headrest​

Armpads

​Ship-shape Armpad
Contour Armpad
Lectus Armpad

Armrests

T-Bar Armrest
Flip-Up Armrest, Seat Frame Mount
Flip-Up Armrest, Backrest Mount

Pelvic Positioning Belts

Pelvic Belt, Clip
Pelvic Belt, Auto-Retract

Legrests

Swing-Away Power Elevating Legrests
Swing-Away Manual Elevating Legrests
Legrest, Central Mount, Manual Adjustable
Legrest, Central Mount, Powered Adjustable






5-Button Switch Box

Keypad Button
Keypad Paddle

Electronics and Controls

R-net / CJSM
VR2
Tray Table Control, Flip-Up Joystick

Supports

Hip Support
Side Support Wedge
Lateral Support
Lumbar Support
Deep Contour Side Panels
Calf Supports

Other Accessories

Reflector
Backpack Hooks
Tray Table
Parallel Swing Away Controller Bracket

Family Outing Made Easy with Ergo Attendant Control R-net Dual

Side Frame Colors

Product Model
LENF1.1-VRS
Seating SystemMinimumMinimum
Nominal seat width (mm) with Lectus
cushion¹		420 / 470 / 520
Nominal seat depth (mm) with Lectus cushion²450 / 525
Backrest height without cushion (mm)605845
Backrest height with cushion (mm)525765
Headrest height above seat (mm)700930
Armrest to seat distance without cushion (mm)260390
Armrest to seat distance with cushion (mm)160290
Front location of armrest structure (mm)0600
Seat surface height at front edge without cushion (mm)440740
Seat surface height at front edge with cushion (mm)540840
Footrest to seat distance without cushion (mm)230400
Footrest to seat distance with cushion (mm)330500
Effective seat width (mm)340665
Effective seat depth (mm)150550
Seat plane angle (X°)2 / 4.5 / 7 / 9.5 / 12 / 14.5
Seat plane angle (X°)247
Backrest angle (X°)045
Seat to backrest angle (X°)
(power recline)		90135
Seat to backrest angle (X°)
(manual recline)		75115
Leg to seat angle (X°)105185
Driving CharacteristicsMinimumMinimum
Drive wheel size3.00 -8 (14″)
Rear caster size2.80/2.50 -4 (9″)
Overall length with legrest (mm)11301400
Overall width (mm)620825
Overall height (mm)12201755
Folded length (mm)880-
Folded width (mm)620825
Folded height (mm)1025-
Total mass (kg)203 (80AH)
Total mass without batteries (kg)148.4
Mass of the heaviest part (kg)136.4
Maximum user weight (kg)136
Drive range (km)***39 (80Ah)
Maximum speed forward (km)6 / 10 / 1212
Minimum braking distance from max speed (mm)1970-
Obstacle climbing (mm)65
Ground clearance (mm)60-
Minimum turning radius (mm)660-
Minimum turning radius without user (mm)660-
Reversing width (mm)1160-
Static stability downhill (X°)13
Static stability uphill (X°)17
Static stability sideways (X°)16
Dynamic stability uphill (X°)6
Ability to climb rated slope (X°)****12
Electrical System
ControllerVR2/R-net (Optional)
Motor power (W)450
Battery capacity (Ah)80 x 2
Charger output current (A)6 / 8
Battery Compartment (L x W x H) (mm)350 x 270 x 240
Manual Ver.05

Remark :

* Nominal seat width is measured the width of seat cushion at 120 mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range is estimated based on the following conditions: 20℃–35℃, 136 kg occupant, brand new fully charged batteries and driving on the flat road.
**** Ability to climb rated slope is estimated based on the following conditions: 20℃–35℃, 136 kg occupant, and brand new fully charged batteries.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further notice.

POWER WHEELCHAIR MEASUREMENT METHOD
Download
Icon
User Manual__Leon F_Ver.05
2.44 MB   1 file(s)
Icon
Leon Series Catalogue
1.91 MB   1 file(s)

Get in Touch with KARMA Medical

Crash Test Approved

Leon F Versus is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.

→ Learn more about Wheelchair Safety

The post LEON F VERSUS Outstanding Outdoor Performance first appeared on KARMA Medical.]]> FLEXX ADAPT Innovative Pediatric Positioning Wheelchair https://www.karmamedical.com/featured_item/flexx-adapt/ Thu, 25 Aug 2022 07:44:00 +0000 https://www.karmamedical.com/?post_type=featured_item&p=41663

2-in-1 Pressure Relief

Combining the Tilt and Recline functions allow the user to achieve a nearly horizontal trunk position to redistribute pressure, facilitate transfers, perform postural adjustments, and undergo daily care (e.g., diaper changes).

Tilting increases the child’s comfort, promotes relaxation and pressure relief, and improves sitting tolerance. Tilting reduces the long-term gravitational impact on a child’s joints and increases their independence, encouraging them to participate in daily activities and engage with their peers.

The recline function relieves hip pressure, manages postural hypotension, allows the child to rest in the chair, extends sitting endurance, and is easy for parents and caregivers to provide daily care assistance. The reclining mechanism is designed to minimize the effect of shearing force, ensure sitting stability, and prevent sliding out of the wheelchair.

An innovative spring system reduces sudden movements when operating the tilt and recline functions, significantly improving the user’s comfort and sense of security during postural changes.

Tilting increases the child’s comfort, promotes relaxation and pressure relief, and improves sitting tolerance. Tilting reduces the long-term gravitational impact on a child’s joints and increases their independence, encouraging them to participate in daily activities and engage with their peers.

The recline function relieves hip pressure, manages postural hypotension, allows the child to rest in the chair, extends sitting endurance, and is easy for parents and caregivers to provide daily care assistance. The reclining mechanism is designed to minimize the effect of shearing force, ensure sitting stability, and prevent sliding out of the wheelchair.

The recline function relieves hip pressure, manages postural hypotension, allows the child to rest in the chair, extends sitting endurance, and is easy for parents and caregivers to provide daily care assistance. The reclining mechanism is designed to minimize the effect of shearing force, ensure sitting stability, and prevent sliding out of the wheelchair.

The adaptive seating system allows a wide range of accessory options for the ultimate personalization. The back panel’s slide-slot design and side rail technology facilitate the addition of different headrests, armrests, and supports.

Armrests

Ergo Armpad​
PU Wide Armpad
PU Short Armpad​

Supports

Head Supports
Curved Headrest
Adjustable Headrest


Trunk Supports System
Vertical Adjustable Lateral Trunk Supports​
Multi-adjustable Lateral Trunk Supports​


Hip/Thigh Supports
Multi-adjustable Single Pad Hip/Thigh Supports​
Multi-adjustable Dual Pad Hip/Thigh Supports​


Medial Knee Supports


Lower Body Supports​
90° Footrests​
80° Footrests
Articulating Elevating Legrests
4D Adjustable Plastic Footplates​
4D Adjustable Aluminum Footplates​
Calf Pads​

Straps

Chest Strap
Harness​
2-point Pelvic Positioning Belt​
4-point Pelvic Positioning Belt​
Pelvic Belt (Metal Buckle)​
Pelvic Belt (Velcro)​
Shoulder Strap Guides
Thigh Strap
Calf Strap
Foot Straps​
Heel Loop

Brakes

Drum Brakes​
Push-to-lock Parking Brakes​

Other Accessories

Backpack Hook​
I.V. Pole
Tray Table​
Standard-Anti-tippers

Designed for Caregivers

Stable and Comfortable

Maintaining a good sitting posture is essential for children to develop a neutral pelvis, prevent joint deformity, and participate in daily activities.

The curvature of the cushion matches the shape of the body, stabilizing posture and minimizing sliding.

Precisely adapt to user needs and comfort.

Enable users to comfortably maintain a hip abducted posture.

The curvature of the cushion matches the shape of the body, stabilizing posture and minimizing sliding. Sitting steadily is also less tiring, making participation in classroom activities and social interaction easier.

Precisely adapt to user needs and comfort.

Enable users to comfortably maintain a hip abducted posture. The use of a high-strength footrest encourages a safer sitting experience for children with increased muscle tone.

Frame Colors

Product ModelFlexx Adapt
MinimumMaximum
Nominal seat width (mm/in)* 255 / 10 355 / 14
Nominal seat depth (mm/in)** 230 / 9 380 / 15
Front caster / Rear wheel size (in) 6 / 16 8 / 16
Backrest height without cushion (mm) 400 550
Backrest height with cushion (mm) 350 500
Headrest height above seat (mm) 360 690
Armrest to seat distance without cushion (mm) 75 295
Armrest to seat distance with cushion (mm) 10 230
Front location of armrest structure (mm) 0 460
Seat surface height at front edge without cushion (mm)
430 480
Seat surface height at front edge with cushion (mm)
480530
Footrest to seat distance without cushion (mm) 85285
Footrest to seat distance with cushion (mm) 160 360
Effective seat width (mm) 290 390
Effective seat depth (mm) 285 410
Seat plane angle (X°) 0 45
Backrest angle (X°)040
Seat to backrest angle (X°) 90 130
Leg to seat angle (X°) 100 -
Overall length with legrest (mm) 1070 1385
Overall width (mm) 570 -
Overall height (mm) 1060 1190
Folded length (mm) 770-
Folded width (mm) 570-
Folded height (mm) 530-
Total mass (kg) 29.8-
Mass of the heaviest part (kg) 18.6-
Maximum user weight (kg) - 75
Minimum turning radius (mm) 940 -
Minimum turning radius without user (mm) 850-
Pivot width (mm) 1100 1500
Static stability downhill (X°) 13-
Static stability uphill (X°)18 (with anti-tippers)-
Static stability sideways (X°) 14-
Handrim diameter (mm)N/AN/A
Horizontal location of axle (mm)90235
Manual ver.01

* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.

Manual Wheelchair Measurement Method
Download
Icon
User Manual_Flexx Adapt_Ver.01
3.48 MB   1 file(s)
Icon
Flexx Adapt Catalogue
1.05 MB   1 file(s)

Get in Touch with KARMA Medical

Crash Test Approved

Flexx Adapt is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.

→ Learn more about Wheelchair Safety

Medical Grade Dartex® Upholstery

Comfortable four-way stretch fabric is fluidresistant, breathable, and machine washable .

The post FLEXX ADAPT Innovative Pediatric Positioning Wheelchair first appeared on KARMA Medical.]]> EVO ALTUS Top Line Standing Power Wheelchair https://www.karmamedical.com/featured_item/evo-alt/ Tue, 21 Jun 2022 04:14:07 +0000 https://www.karmamedical.com/?post_type=featured_item&p=40955

Product Video

EVO Altus has four standing curves: sit-to-stand, lay-to-stand, and tilt-to-stand. A smooth and efficient standing curve improves user experience and enjoys life with more elegancy and less distortion.

Sit-to-Stand

This function allows the user to go from a sitting position to a standing position. This is the most natural way to stand up and does not take a lot of time and space. Users who have a normal range of joint motion, as well as healthy blood circulation, will find this mode best suits their needs.

Lay-to-Stand

This function allows the user to go from a supine position to a standing position. Standing from the supine position requires minor body and joint movements. This function prevents lateral supports from being mispositioned and gives users with intense postural hypotension the opportunity to stand like everyone else.

Tilt-to-Stand

Offers gravity-assisted positioning for individuals with limited upper-body control, allowing them to maintain their pelvic position, even after standing.

Chassis


EVO Chassis
Front-Wheel Drive Performance

Best in Class Driving Range and Performance

Despite its low seat height, the front-wheel drive EVO chassis is compatible with up to 80Ah batteries, which yield up to 54 km of driving range. The narrow 610 mm width of the EVO chassis allows users to precisely navigate indoor environments.

Maintenance Friendly

The maintenance-friendly battery box design also allows technicians to remove and replace the battery while the user is seated.

Ultra-Low Seat Height

The EVO Altus and EVO Lectus LR feature an ultra-low 415 mm seat-to-floor height, enabling users to comfortably operate wheelchair-accessible motor vehicles and pull up to tables, offering increased comfort and accessibility in daily life.

Fully Adjustable Suspension

The strong and compact EVO chassis is equipped with a fully adjustable 4-wheel suspension system. The stiffness of the suspension can be configured according to the user’s weight, ensuring a smooth ride outdoors.

Seating System

Highly Configurable Rehab Seat
Altus and Lectus

These products feature the best driving performance, biomechanical positioning, highly configurable and adjustable seating systems, and support for most third-party accessories and controllers, allowing users to enjoy a life of independence and unlimited possibilities.

Casing Colors

Product Model
Evo Altus
Seating SystemMinimumMaximum
Nominal seat width (mm/in)* 420 / 17 520 / 21
Nominal seat depth (mm/in)** 400 / 16600 / 24
Backrest height without cushion (mm) 565 725
Backrest height with cushion (mm) 510 670
Headrest height above seat (mm) 730 890
Armrest to seat distance without
cushion (mm)
250 370
Armrest to seat distance with cushion (mm)
180 300
Front location of armrest structure
(mm)
0 410
Seat surface height at front edge
without cushion (mm)
415 865
Seat surface height at front edge with
cushion (mm)		490 940
Footrest to seat distance without
cushion (mm)
255 555
Footrest to seat distance with cushion (mm)
330 630
Effective seat width (mm) 420 520
Effective seat depth (mm) 400600
Seat plane angle (X°) 0 50
Backrest angle (X°) -590
Seat to backrest angle (X°)
85 180
Leg to seat angle (X°) 85 180
Driving Characteristics Minimum Maximum
Drive wheel size 3.00 - 8 (14")
Rear caster size 2.80/2.50 - 4 (9")
Overall length with legrest (mm) - 1200
Overall width (mm) 610 660
Overall height (mm) 1115-
Folded length (mm) 1150 -
Folded width (mm) 610 -
Folded height (mm) 650-
Total mass (kg) -185
Total mass without batteries (kg) - 143
Mass of the heaviest part (kg) -135
Maximum user weight (kg) -136
Drive range (km)*** - 54
Maximum speed forward (km) -12
Minimum braking distance from max
speed (mm)		2000-
Obstacle climbing (mm) - 70
Ground clearance (mm) 70-
Minimum turning radius (mm) 750-
Minimum turning radius without user
(mm)
750 -
Reversing width (mm) 750-
Static stability downhill (X°) 9
Static stability uphill (X°) 9
Static stability sideways (X°) 9
Dynamic stability uphill (X°) 6
Ability to climb rated slope (X°)*** 12
Electrical System
Motor power (W) 320
Battery capacity (Ah) 80*2
Charger output current (A) 8
Battery Compartment (L x W x H) (mm) 265 x 175 x 235 (Single Compartment)
Electric ver.09

Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest.
This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions:
20℃~35℃, 140 kg occupant, brand new fully charged batteries and driving on the flat road.
– Evo Altus satisfies the requirements according to EN 12184 and the maximum occupant mass is 140 kg.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further
notice.

Power Wheelchair Measurement Method
Support
Icon
Evo Altus_User Manual_ver.10
5.13 MB   1 file(s)
Icon
Topline Catalogue
263.31 KB   1 file(s)
Icon
Top Line Karma Medical Power Wheelchair Accessories
1.19 MB   1 file(s)

Log in to get more support →

Dealer Resources

Get in Touch with KARMA Medical

The post EVO ALTUS Top Line Standing Power Wheelchair first appeared on KARMA Medical.]]> EVO Lectus LR Top Line Power Wheelchair Front Drive https://www.karmamedical.com/featured_item/evo-lts-lr/ Thu, 07 May 2020 03:15:46 +0000 https://www.karmamedical.com/?post_type=featured_item&p=22856

Power Positioning Functions

Sky-High Power Elevating Seat

Reach new heights with the power elevating seat. The seat is mounted into the chassis and can be raised stepless up to 40 cm. This provides the users with a better view and better access to their surroundings.

45-Degree Center of Gravity Tilt System

The center of gravity tilt system ensures pressure relief and a high degree of comfort. The tilt can also be used when traveling down a slope to compensate for the negative seat angle. This provides a safer and more stable seating position.

Biomechanical Power Recline and Elevating Legrest

180° power recline together with 180° power elevating legrest, total flat position allows the user to lie down straight. With the biomechanic design, the seat traverses with body movement, minimizing the effect of shearing force, keeping all the supports in the correct alignment with the body, and ensuring sitting stability.

PRO-Motion

Power Reach Out Motion is Karma's latest revolutionary power curve, which seamlessly integrates all four power positioning functions to amplify users' abilities to interact with their surroundings, fostering an empowered and independent lifestyle.

Chassis


EVO Chassis
Front-Wheel Drive Performance

Best in Class Driving Range and Performance

Despite its low seat height, the front-wheel drive EVO chassis is compatible with up to 80Ah batteries, which yield up to 54 km of driving range. The narrow 610 mm width of the EVO chassis allows users to precisely navigate indoor environments.

Maintenance Friendly

The maintenance-friendly battery box design also allows technicians to remove and replace the battery while the user is seated.

Ultra-Low Seat Height

The EVO Altus and EVO Lectus LR feature an ultra-low 415 mm seat-to-floor height, enabling users to comfortably operate wheelchair-accessible motor vehicles and pull up to tables, offering increased comfort and accessibility in daily life.

Fully Adjustable Suspension

The strong and compact EVO chassis is equipped with a fully adjustable 4-wheel suspension system. The stiffness of the suspension can be configured according to the user’s weight, ensuring a smooth ride outdoors.

Seating System

Highly Configurable Rehab SeatAltus and Lectus

These products feature the best driving performance, biomechanical positioning, highly configurable and adjustable seating systems, and support for most third-party accessories and controllers, allowing users to enjoy a life of independence and unlimited possibilities.

Casing Colors

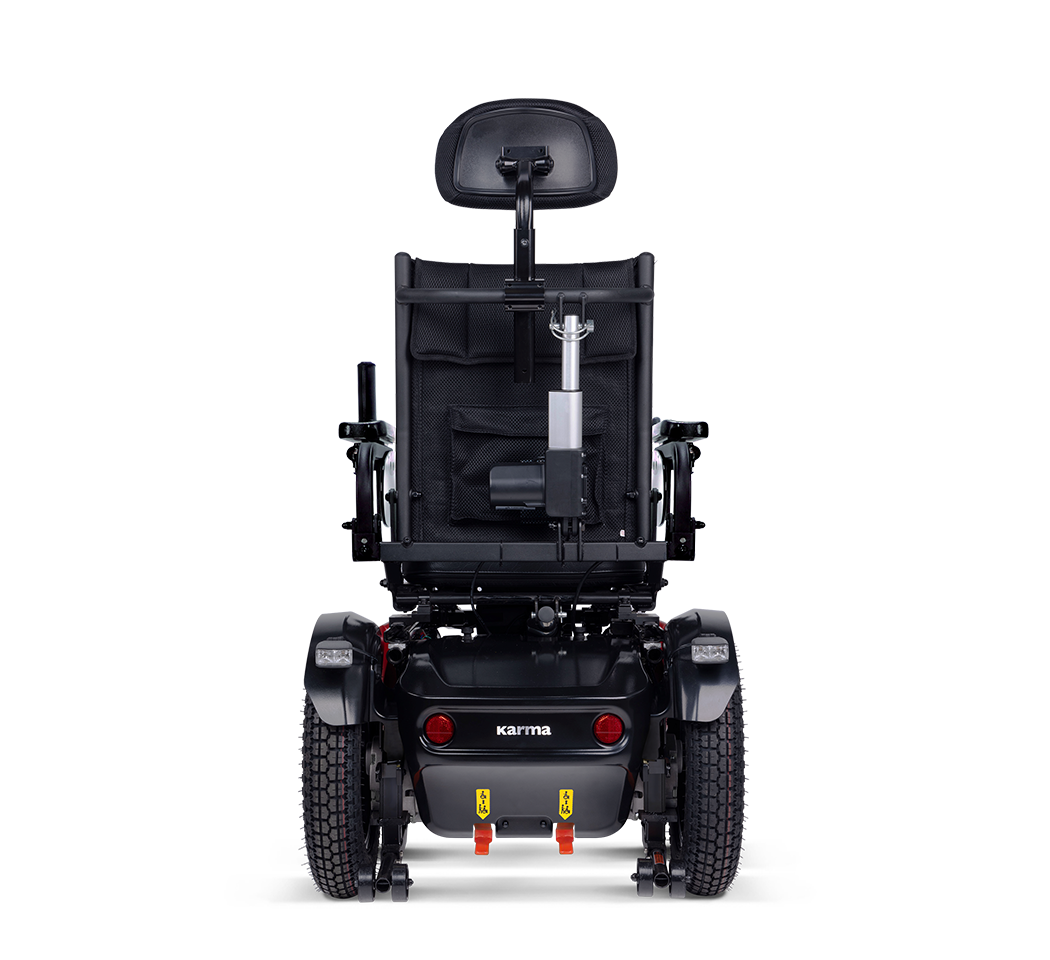

Product Model Evo Lectus LR
Seating System Minimum Maximum
Nominal seat width (mm/in)* 420 / 17 520 / 21
Nominal seat depth (mm/in)** 400 / 16 600 / 24
Backrest height without cushion (mm) 565 725
Backrest height with cushion (mm) 510670
Headrest height above seat (mm) 730 890
Armrest to seat distance without
cushion (mm)
255 375
Armrest to seat distance with cushion (mm)
180 300
Front location of armrest structure (mm)
0 410
Seat surface height at front edge
without cushion (mm)
415 865
Seat surface height at front edge with
cushion (mm)
480930
Footrest to seat distance without
cushion (mm)
180555
Footrest to seat distance with cushion (mm)255 630
Effective seat width (mm) 420 520
Effective seat depth (mm) 400600
Seat plane angle (X°) 0 50
Backrest angle (X°) -590
Seat to backrest angle (X°) 85180
Leg to seat angle (X°) 85 180
Driving CharacteristicsMinimumMaximum
Drive wheel size 3.00 - 8 (14")
Rear caster size 2.80/2.50 - 4 (9")
Overall length with legrest (mm) -1200
Overall width (mm) 610 660
Overall height (mm) 1115 -
Folded length (mm) 1150 -
Folded width (mm) 610 -
Folded height (mm) 745 -
Total mass (kg) -185
Total mass without batteries (kg) -140
Mass of the heaviest part (kg)-135
Maximum user weight (kg) -136
Drive range (km)*** - 54
Maximum speed forward (km) -12
Minimum braking distance from max
speed (mm)
2000 -
Obstacle climbing (mm)- 70
Ground clearance (mm) 70 -
Minimum turning radius (mm) 750-
Minimum turning radius without user
(mm)
750 -
Reversing width (mm) 750-
Static stability downhill (X°) 9
Static stability uphill (X°) 99
Static stability sideways (X°) 9
Dynamic stability uphill (X°) 6
Ability to climb rated slope (X°)*** 12
Electrical System
Motor power (W) 320
Battery capacity (Ah) 80*2
Charger output current (A) 8
Battery Compartment (L x W x H) (mm) 265 x 175 x 235 (Single Compartment)
Electric ver.04

Remark :
* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest.
This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20℃~35℃, 140 kg occupant, brand new fully charged batteries and driving on the flat road.
– Evo Lectus LR satisfies the requirements according to EN 12184 and the maximum occupant mass is 140 kg.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– KARMA reserves the right to modify information herein without further
notice.

Power Wheelchair Measurement Method
Support
Icon
User Manual_Evo Lectus LR-ver.04
3.61 MB   1 file(s)
Icon
Top Line Karma Medical Power Wheelchair Accessories
1.19 MB   1 file(s)
Icon
Topline Catalogue
263.31 KB   1 file(s)

Log in to get more support →

Dealer Resources

Get in Touch with KARMA Medical

The post EVO Lectus LR Top Line Power Wheelchair Front Drive first appeared on KARMA Medical.]]>
