Frame Colors

Specification

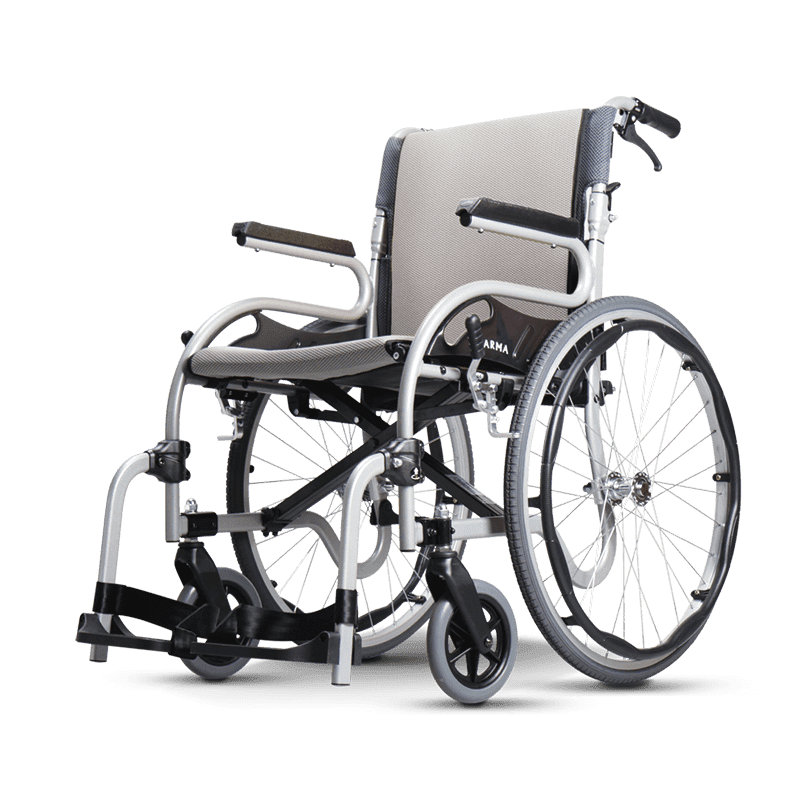

Product ModelSTAR 2 (KM-1514)
Nominal seat width (mm)400450
Caster x Rear wheel size (in)
7 x 24
Maximum user weight (kg) 115
Overall length with legrest (mm)990 ~ 1000990 ~ 1000
Overall width (mm)630680
Overall height (mm)920920
Folded length (mm)790790
Folded width (mm)370370
Folded height (mm)760760
Total mass (kg)13.613.8
Mass of the heaviest part (kg)13.213.4
Handrim diameter (mm)520520
Horizontal location of axle (mm)1010
Minimum turning radius (mm)800810
Minimum turning radius without
user (mm)
710720
Pivot width (mm)11901200
Static stability downhill (X°)17.017.0
Static stability uphill (X°)13.113.1
Static stability uphill with
anti-tippers (X°)
N/AN/A
Static stability sideways (X°)17.017.0
Seat plane angle (X°)55
Effective seat depth (mm)420420
Nominal seat depth (mm)420420
Effective seat width (mm)440490
Seat surface height at front edge (mm)510510
Backrest angle (X°)66
Seat to backrest angle (X°)9191
Backrest height (mm)430430
Headrest height above seat (mm)N/AN/A
Leg to seat angle (X°)100100
Footrest to seat distance (mm)425 ~ 465425 ~ 465
Armrest to seat distance (mm)220220
Front location of armrest structure
(mm)
320320
Manual ver.10


* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* Karma reserves the right to modify information herein without further notice.
