Frame Colors

Specification

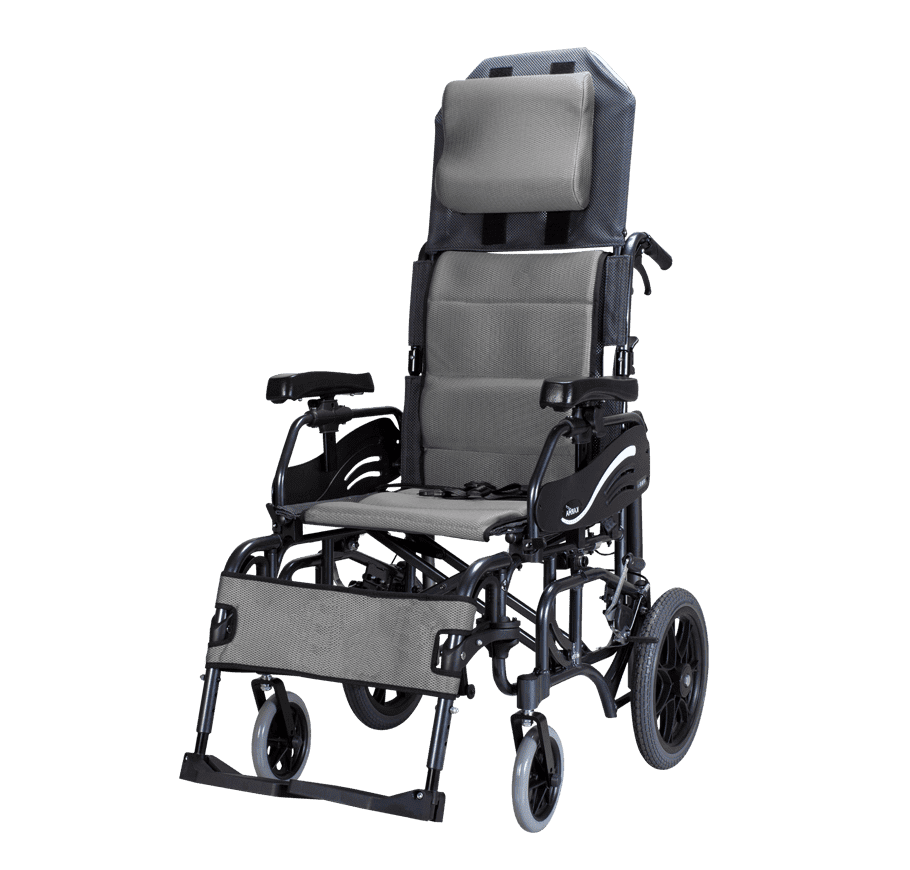

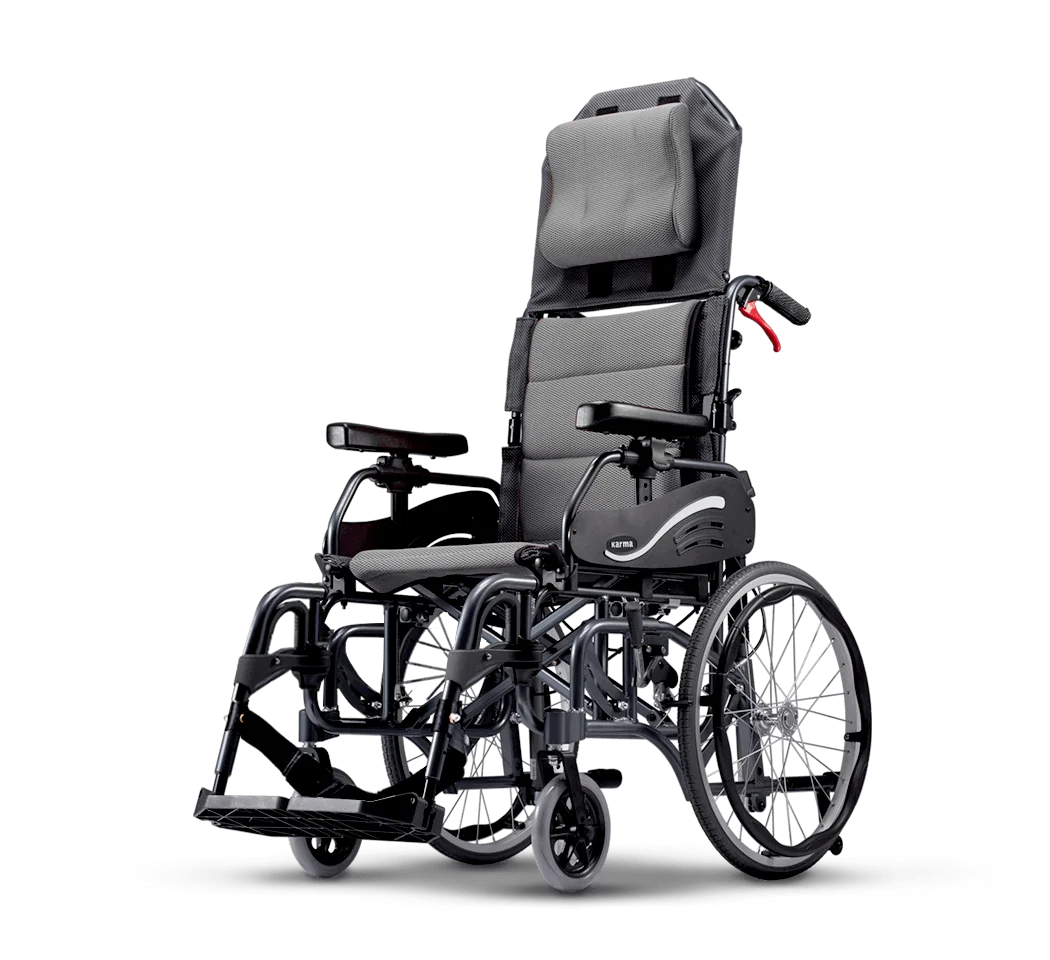

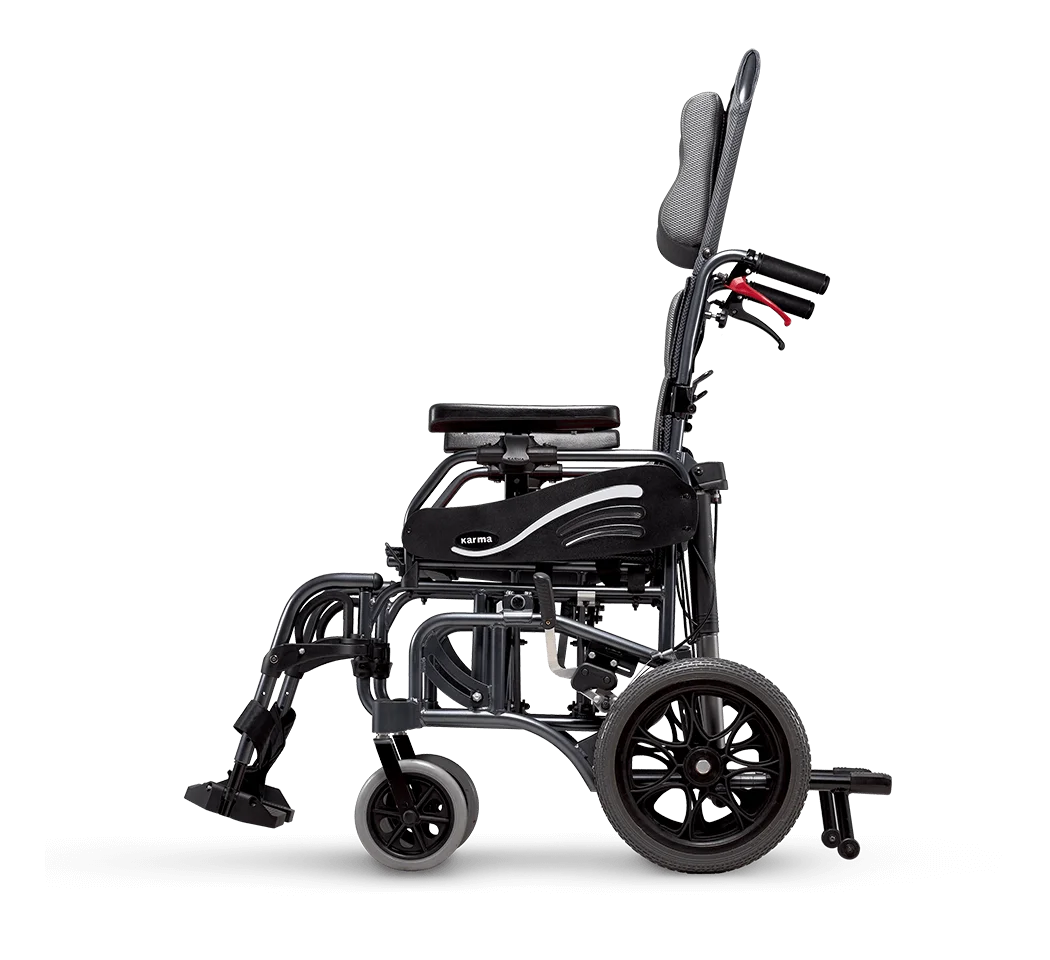

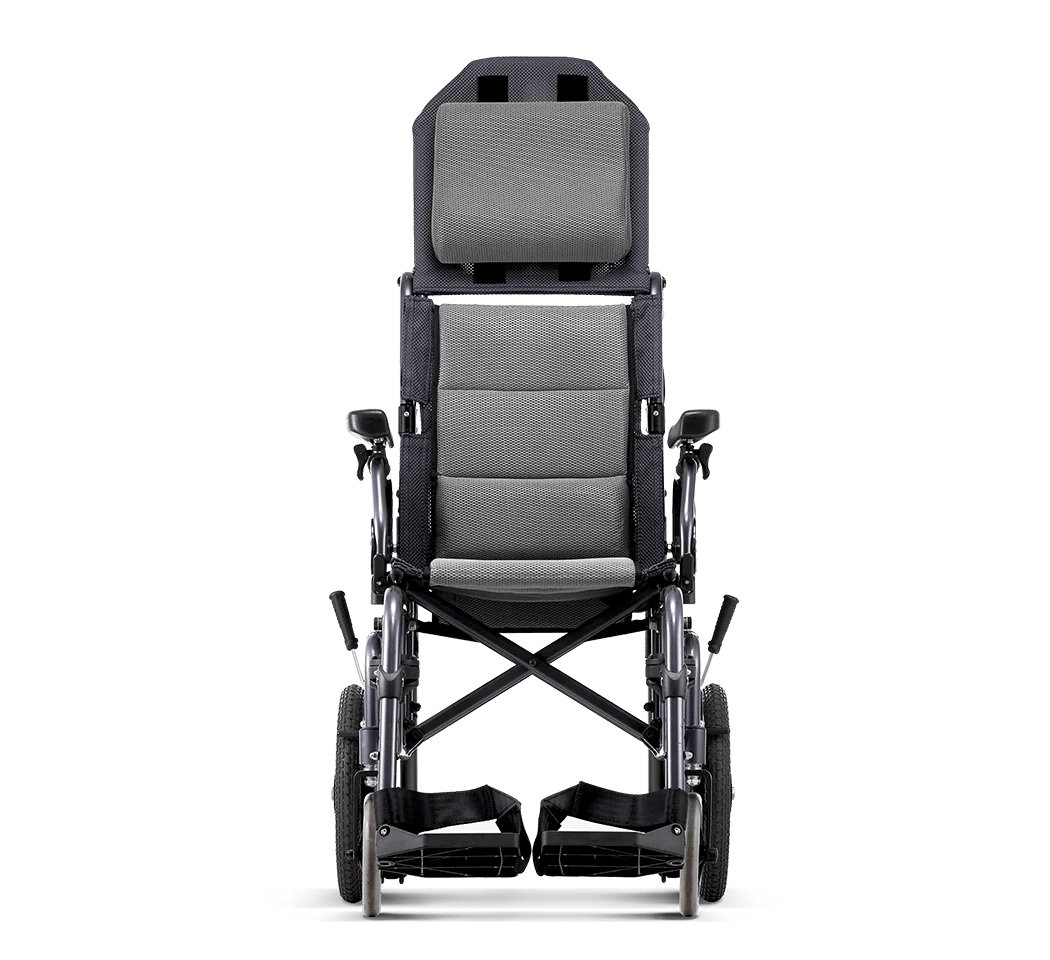

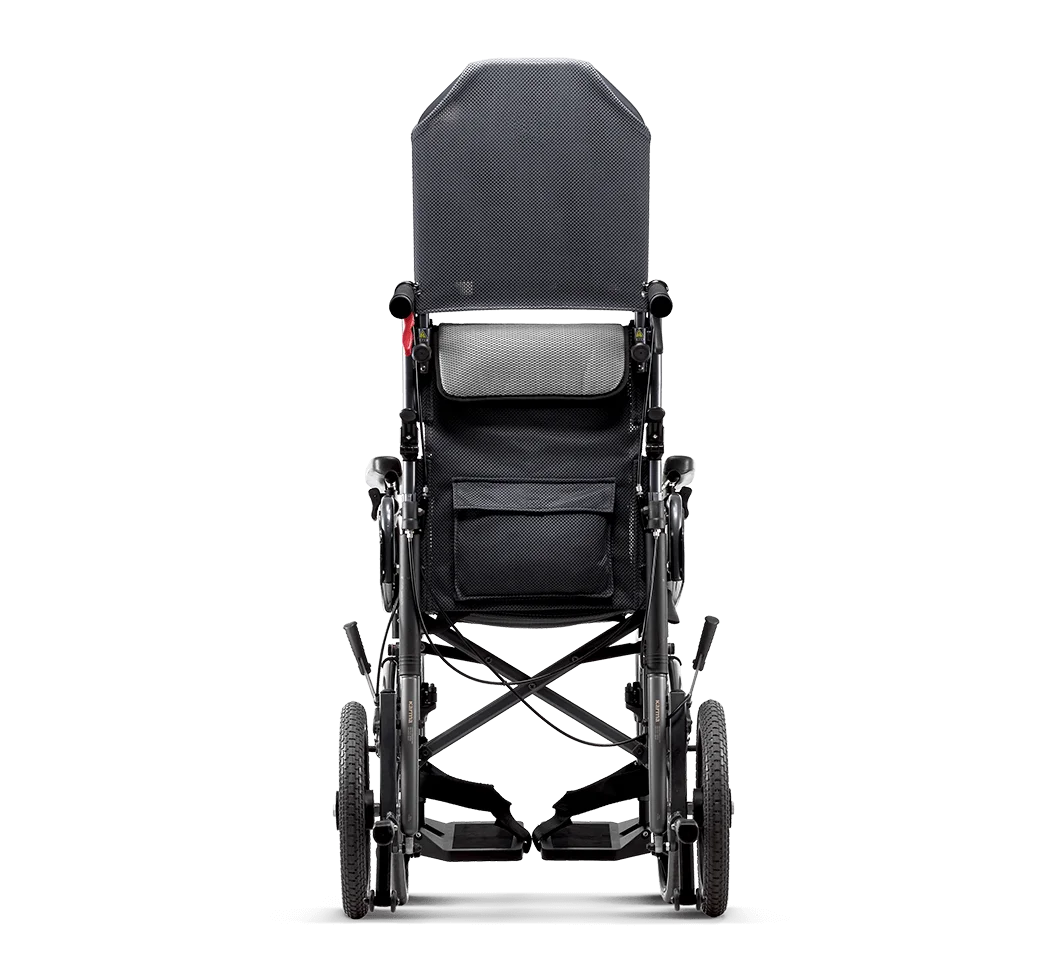

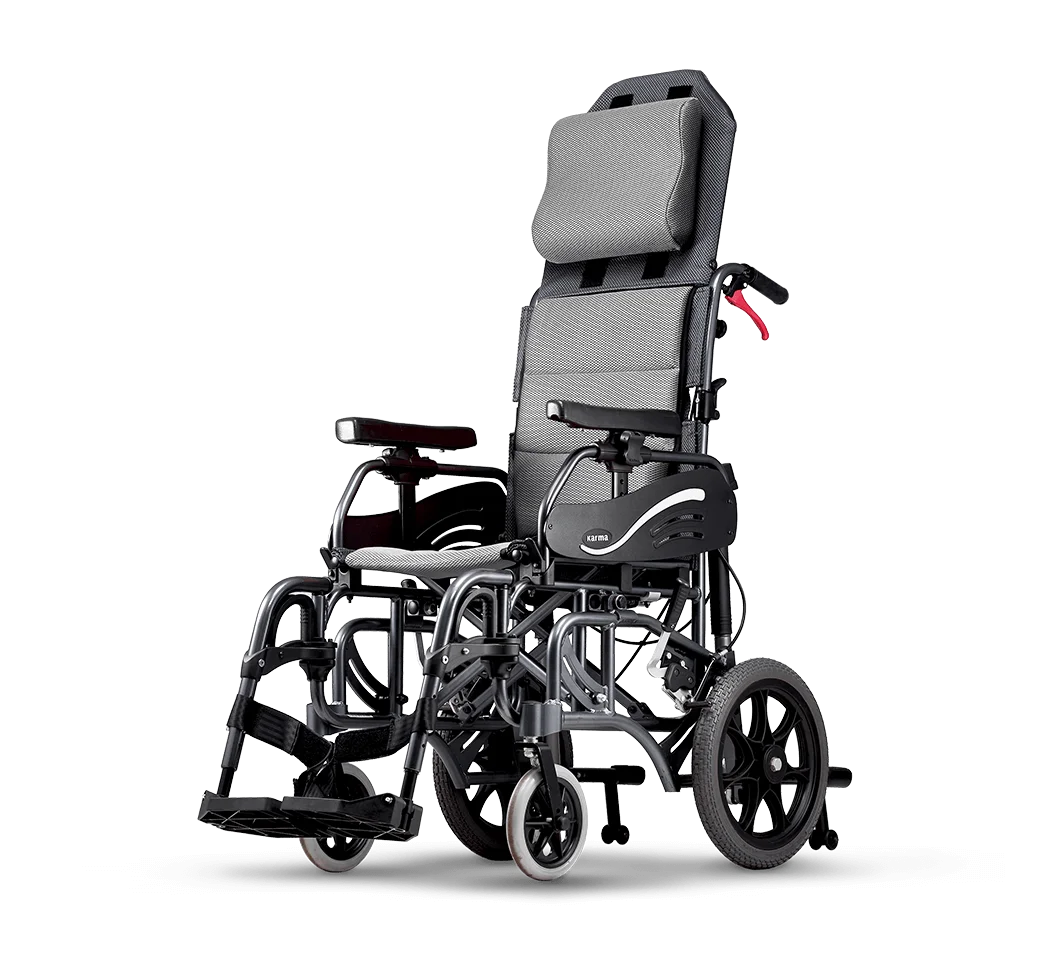

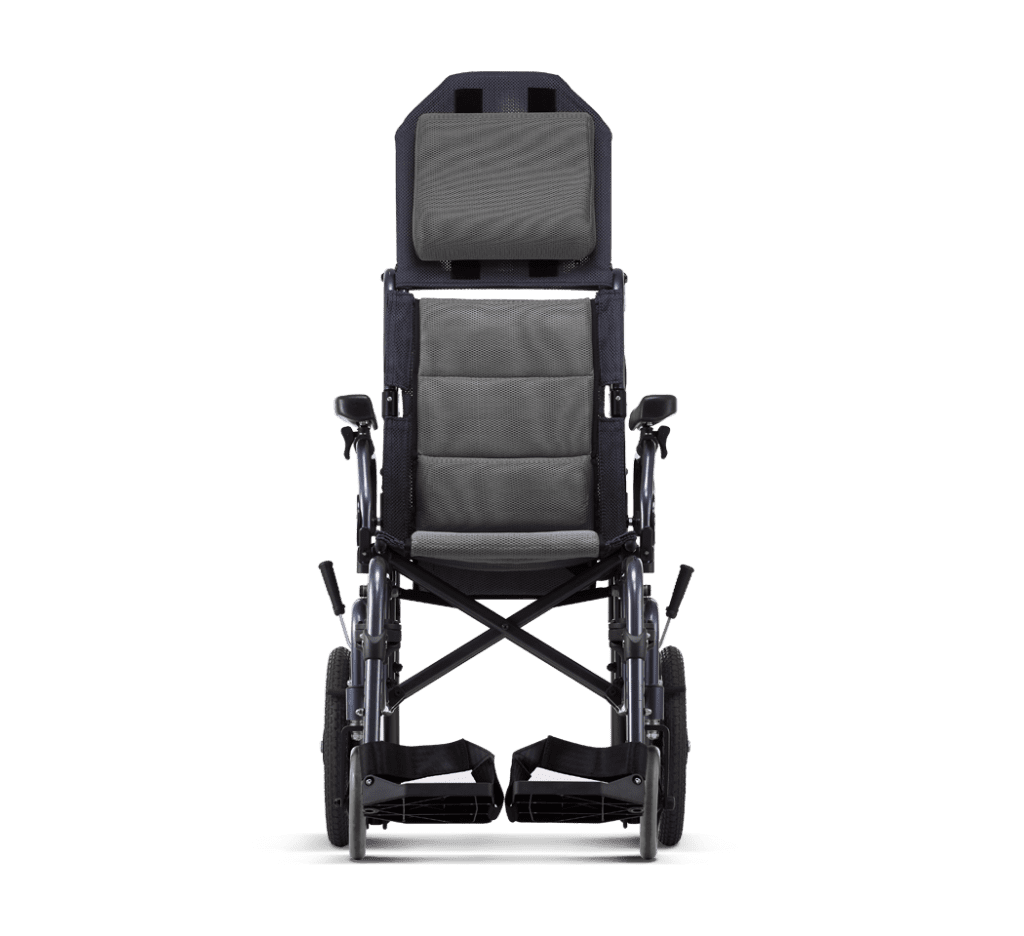

Product Model VIP 515 (KM-1520.3T)
Nominal Seat Width (inch) 16181618
Caster x Rear wheel size (in) 7 x 14 7 x 20
Maximum user weight (kg) 115
Overall length with legrest (mm) 1070107010701070
Overall width (mm) 635680660710
Overall height (mm) 955 / 1325 (with headrest)955 / 1330 (with headrest)

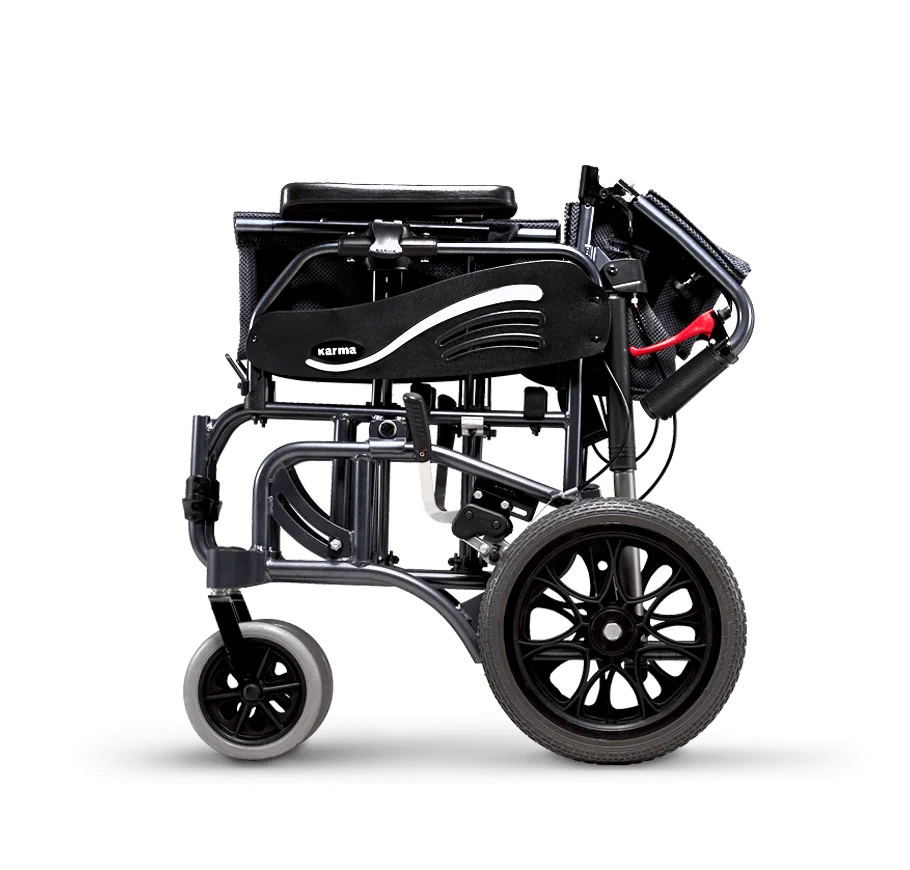

Folded length (mm) 725730790790
Folded width (mm)350 350 375375
Folded height (mm) 760760760760
Total mass (kg) 18.9 19.3 20.0 20.3
Mass of the heaviest part (kg)15.115.316.216.4
Handrim diameter (mm)N/AN/A430430
Horizontal location of axle (mm)6666
Minimum turning radius (mm)835845860870
Minimum turning radius without user (mm)815825820835
Pivot width (mm) 1180120012101230
Static stability downhill (X°)
16N/A
Static stability uphill (X°) 16N/A
Static stability uphill with anti-tippers (X°)20N/A
Static stability sideways (X°) 13N/A

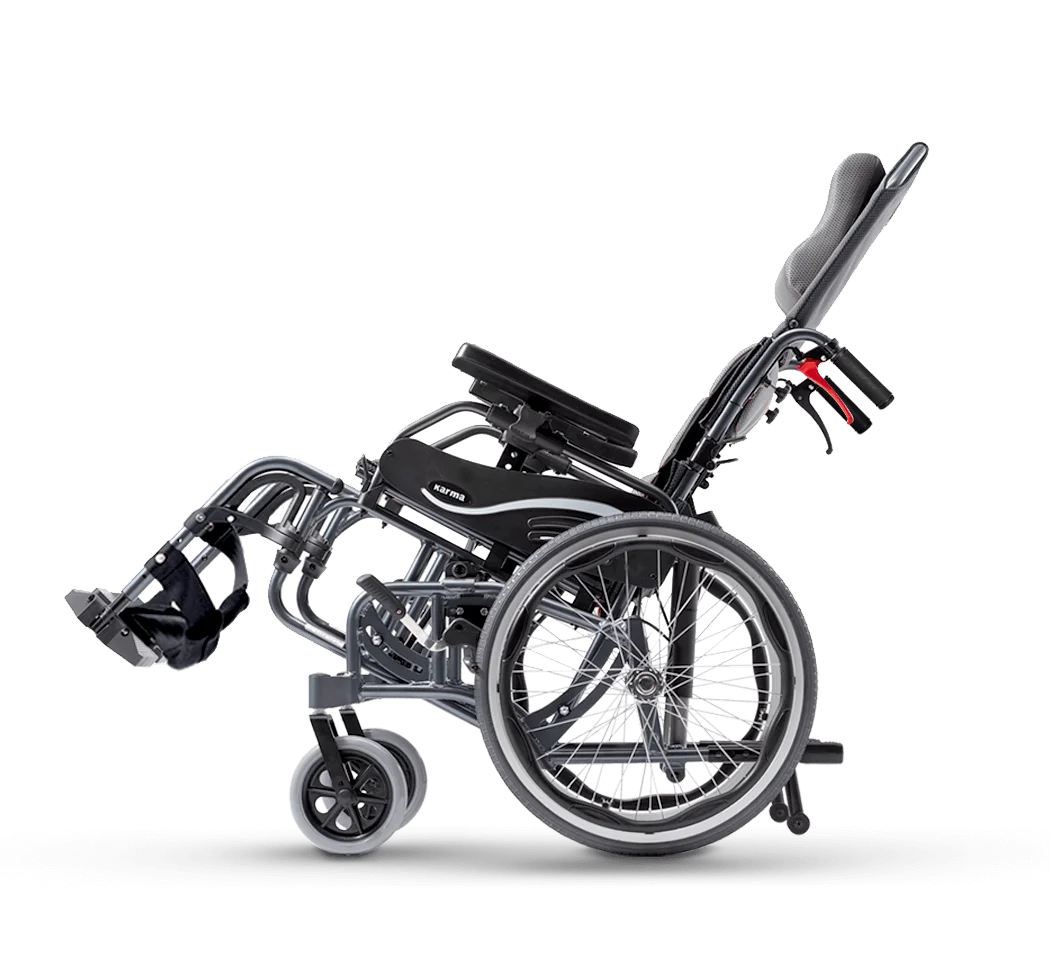

Seat plane angle (X°) 1 ~ 37
Effective seat depth (mm)420420420420
Nominal seat depth (mm) 415415415415
Effective seat width (mm)475520475520
Seat surface height at front edge (mm)490485490485
Backrest angle (X°) 13
Seat to backrest angle (X°) 94
Backrest height (mm) 460460460460
Headrest height above seat (mm) 600 ~ 740600 ~ 740600 ~ 740600 ~ 740
Leg to seat angle (X°) 114
Footrest to seat distance (mm)405 ~ 480405 ~ 480405 ~ 480405 ~ 480
Armrest to seat distance (mm) 240 ~ 320240 ~ 320240 ~ 320240 ~ 320
Front location of armrest structure (mm)370370370370
Manual ver.18


Remark :
* The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
* The actual product specifications may vary according to different configurations.
* KARMAreserves the right to modify information herein without further notice.
