Product Model

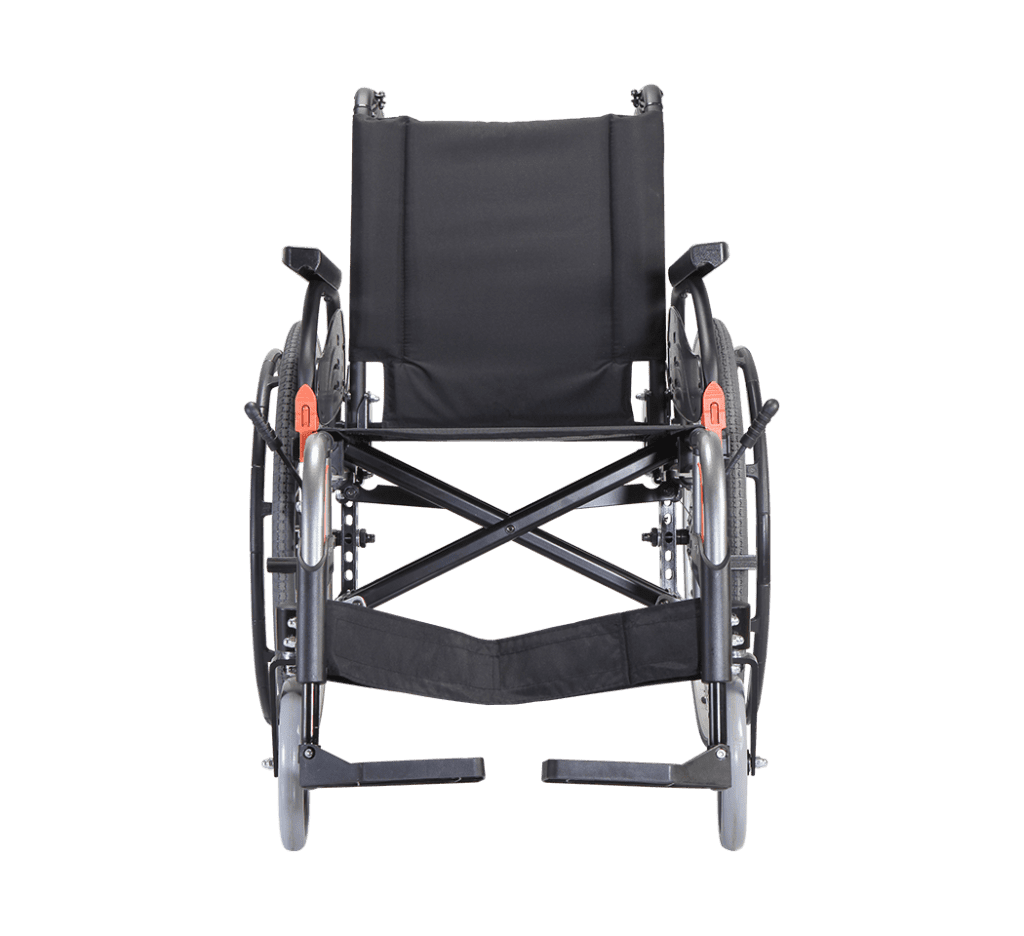

Flexx S (KM-8022S、KM-8522S)
Nominal seat width (mm/in)*350 / 14375 / 15400 / 16 425 / 17450 / 18475 / 19 500 / 20
Nominal seat depth (mm/in)
415 ~ 465 / 16 ~ 18
Front caster / Rear wheel size (in)7 / 24 、 8 / 24
Backrest height (mm)
430430430430430430430
Headrest height above seat (mm)N/AN/AN/AN/AN/AN/AN/A
Armrest to seat distance (mm)225 ~ 245
Front location of armrest structure
(mm)
365365365365365365365
Seat surface height at front edge (mm)390 ~ 530
Footrest to seat distance (mm)
315 ~ 415
Effective seat width (mm)380405430455480505530
Effective seat depth (mm)
595 ~ 645
Seat plane angle (X°)5555555
Backrest angle (X°)7 ~ 27
Seat to backrest angle (X°)92 ~ 112
Leg to seat angle (X°)
98989898989898
Overall length with legrest (mm)
1025 ~ 1105
Overall width (mm)555580605630655680705
Overall height (mm) 900 ~ 925
Folded length (mm)
815 ~ 865
Folded width (mm)
290290305305320320335
Folded height (mm)610 ~ 730
Total mass (kg)
15.1 ~ 15.9
Mass of the heaviest part (kg)10.0 ~ 10.7
Maximum user weight (kg)130130130130130130130
Minimum turning radius (mm)
855 ~ 935
Minimum turning radius without
user (mm)
725 ~ 805
Pivot width (mm)
1225 ~ 1305
Static stability downhill (X°)
15151515151515
Static stability uphill (X°)11111111111111
Static stability sideways (X°)18181818181818
Handrim diameter (mm)520520520520520520520
Horizontal location of axle (mm)10101010101010
Product Model
Flexx S (KM-8022S、KM-8522S)
Nominal seat width (mm)*350 / 14375 / 15400 / 16 425 / 17450 / 18475 / 19 500 / 20
Nominal seat depth (mm)
415 ~ 465 / 16 ~ 18
Front caster / Rear wheel size (in)7 / 14 、 8 / 14
Backrest height (mm)
430430430430430430430
Headrest height above seat (mm)N/AN/AN/AN/AN/AN/AN/A
Armrest to seat distance (mm)225 ~ 245
Front location of armrest structure
(mm)
365365365365365365365
Seat surface height at front edge (mm)390 ~ 530
Footrest to seat distance (mm)
315 ~ 415
Effective seat width (mm)380405430455480505530
Effective seat depth (mm)
595 ~ 645
Seat plane angle (X°)5555555
Backrest angle (X°)7 ~ 27
Seat to backrest angle (X°)92 ~ 112
Leg to seat angle (X°)
98989898989898
Overall length with legrest (mm)
1025 ~ 1105
Overall width (mm)520545570595620645670
Overall height (mm) 900 ~ 925
Folded length (mm)
815 ~ 1040
Folded width (mm)
290290305305320320335
Folded height (mm)610 ~ 730
Total mass (kg)
14.1 ~ 14.9
Mass of the heaviest part (kg)12.7 ~ 13.4 (14F)
10.0 ~ 10.7 (14Q)
Maximum user weight (kg)130130130130130130130
Minimum turning radius (mm)
915 ~ 995
Minimum turning radius without
user (mm)
785 ~ 865
Pivot width (mm)
1225 ~ 1305
Static stability downhill (X°)
15151515151515
Static stability uphill (X°)11111111111111
Static stability sideways (X°)18181818181818
Handrim diameter (mm)N/AN/AN/AN/AN/AN/AN/A
Horizontal location of axle (mm)70707070707070
Manual ver.18


* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in th e product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
– The actual product specifications differ from the data in the table by ± 1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.
