Frame Colors

Specification
KM-BT1022" Seat Width &
24" Rear Wheel
24" Seat Width &
24" Rear Wheel
26" Seat Width &
24" Rear Wheel
26" Seat Width &
24" Rear Wheel
28" Seat Width &
24" Rear Wheel
30" Seat Width &
24" Rear Wheel
Seat Width* Seat
Depth (in)
22*18/2024*18/2026*18/2026*22/2428*22/2430*22/24
Caster Size* Rear
Wheel Size (in)
7/8*24
Quick Release
7/8*24
Quick Release
7/8*24
Quick Release
7/8*24
Quick Release
7/8*24
Quick Release
7/8*24
Quick Release
Seat Width (mm)560610660660710760
Seat Depth (mm)460/510460/510460/510560/610560/610560/610
Seat Height (mm)390~500390~500390~500390~500390~500390~500
Backrest Height
(mm)
410~510410~510410~510410~510410~510410~510
Armrest Height
(mm)
250250250250250250
Calf Length (mm)320~370320~370320~370320~370320~370320~370
Backrest Angle (X°)(-5)~15(-5)~15(-5)~15(-5)~15(-5)~15(-5)~15
Max. User Weight
(kg)
250250250250250250
Weight W/O
Accessories (kg)
22.122.923.724.525.426.2
Total Weight (kg)30.23131.832.633.534.3
Overall L x W x H
(mm)
Min. 1180*780*800
Max. 1230*880*1010
Min. 1180*780*800
Max. 1230*880*1010
Min. 1180*780*800
Max. 1230*880*1010
Min. 1230*880*800
Max. 1280*980*1010
Min. 1230*880*800
Max. 1280*980*1010
Min. 1230*880*800
Max. 1280*980*1010

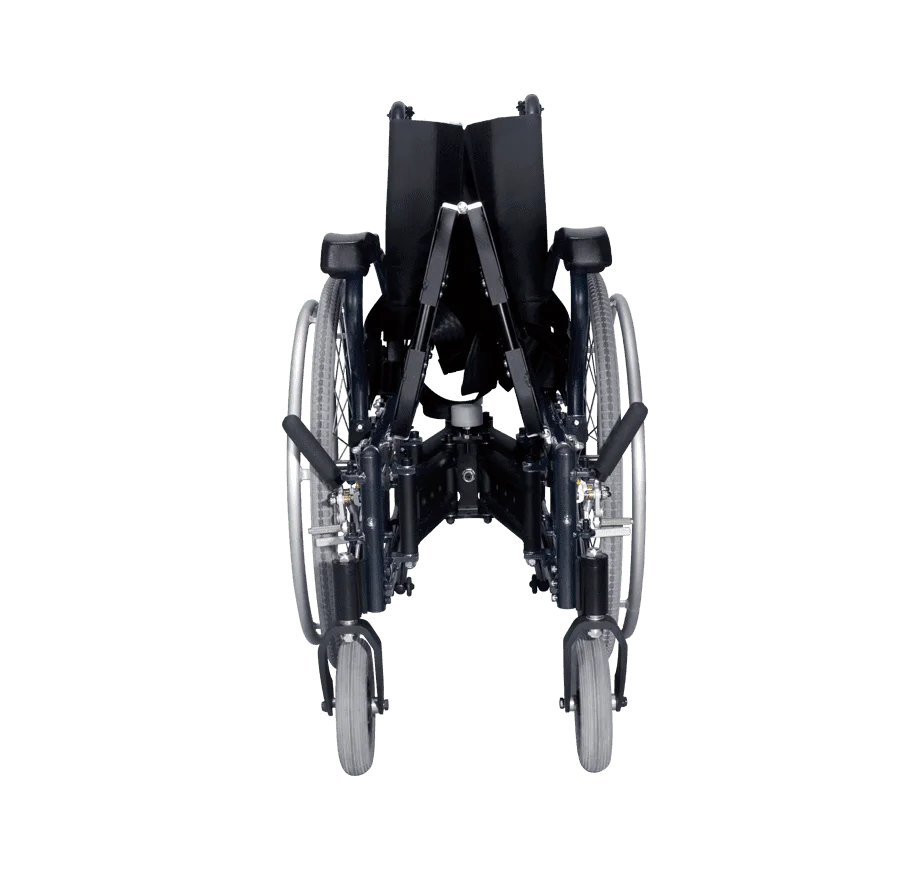

Overall Collapsed L
x W x H (mm)
Min. 900*440*800
Max. 950*440*1010
Min. 900*440*800
Max. 950*440*1010
Min. 900*440*800
Max. 950*440*1010
Min. 950*440*800
Max. 1000*440*1010
Min. 950*440*800
Max. 1000*440*1010
Min. 950*440*800
Max. 1000*440*1010

Remark : Karma reserves the right to modify information herein without further notice.
