Casing Colors

Specification

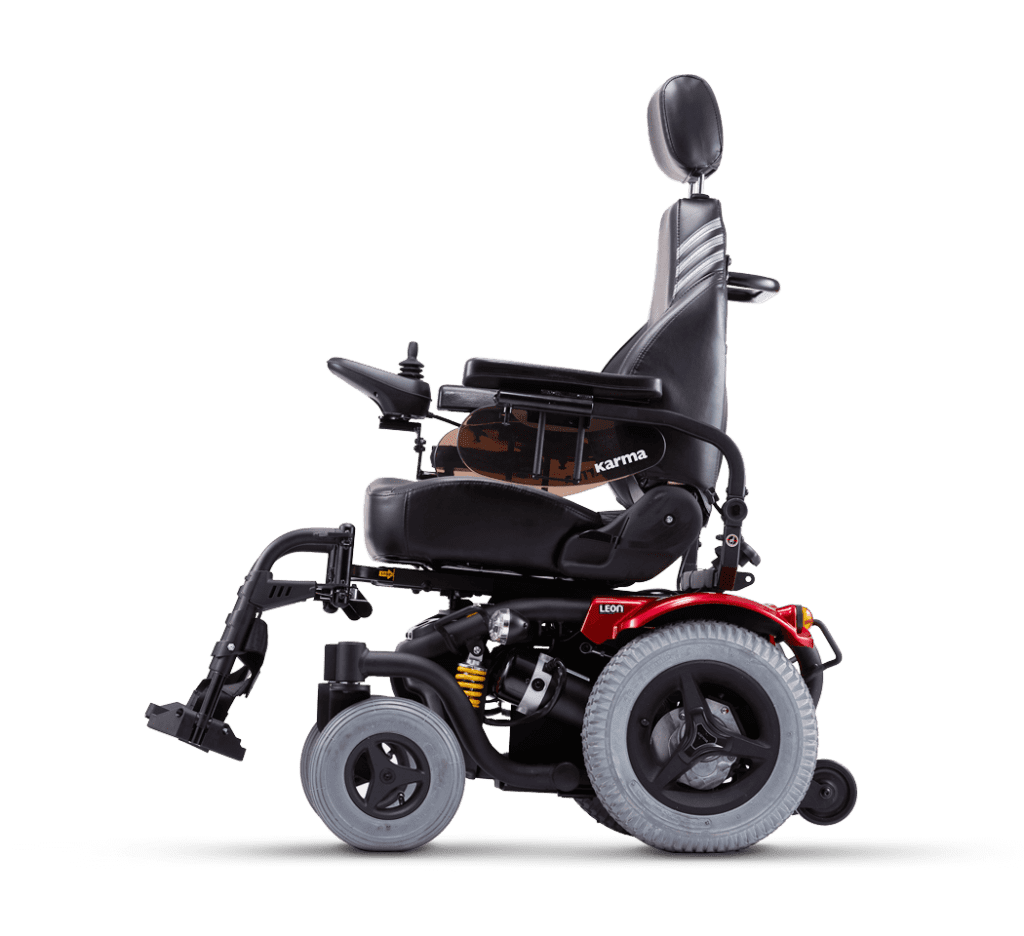

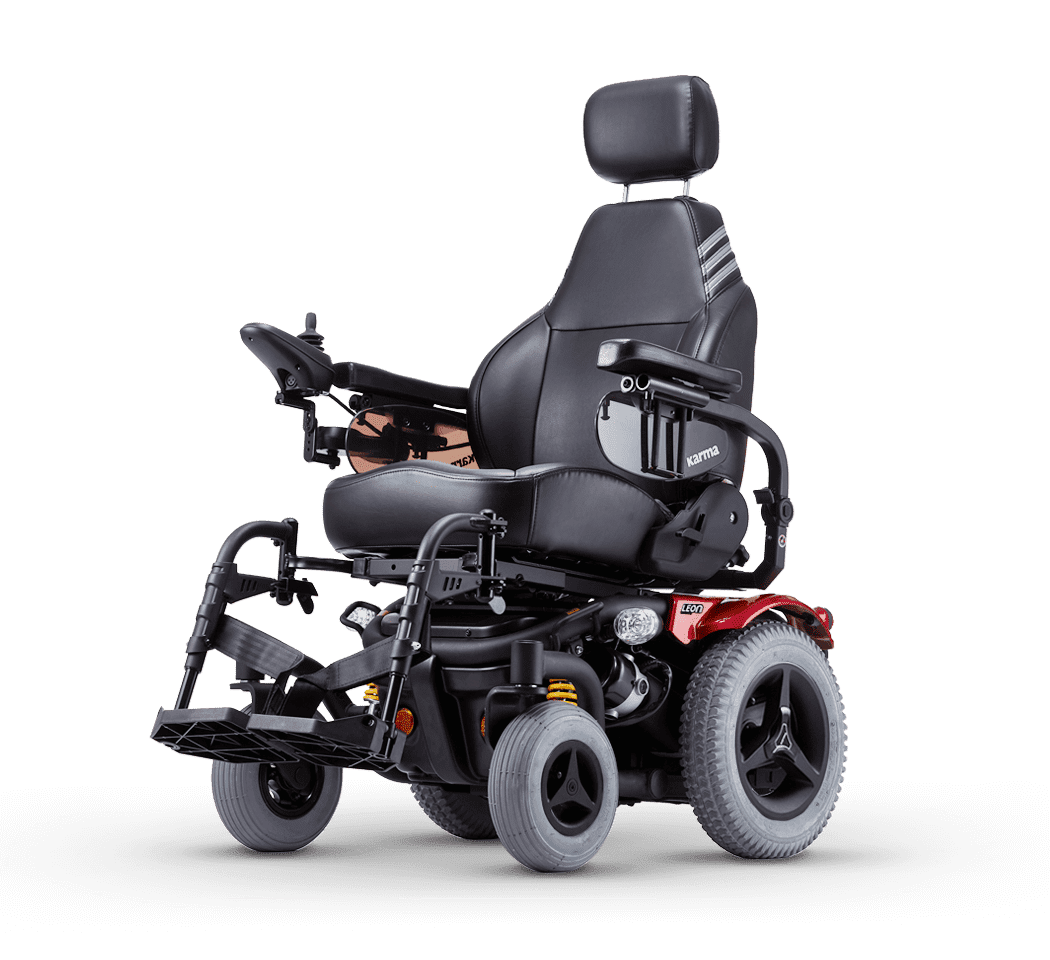

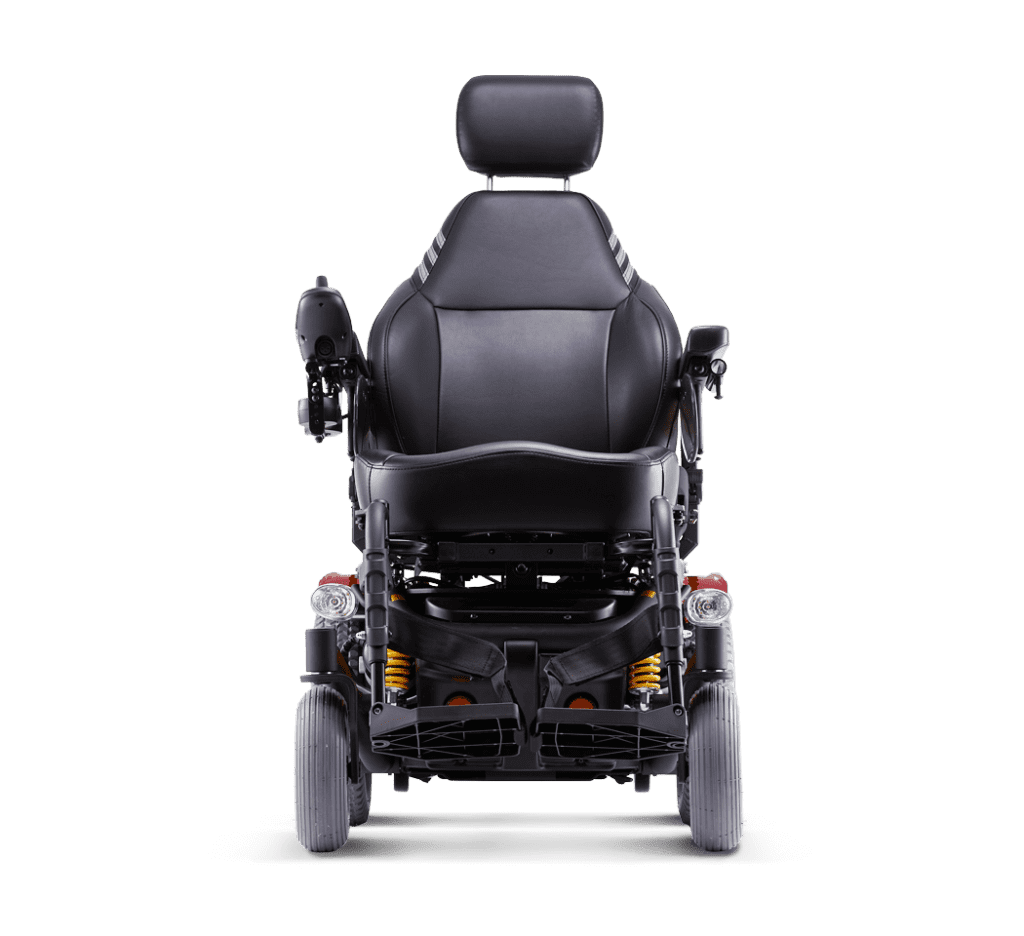

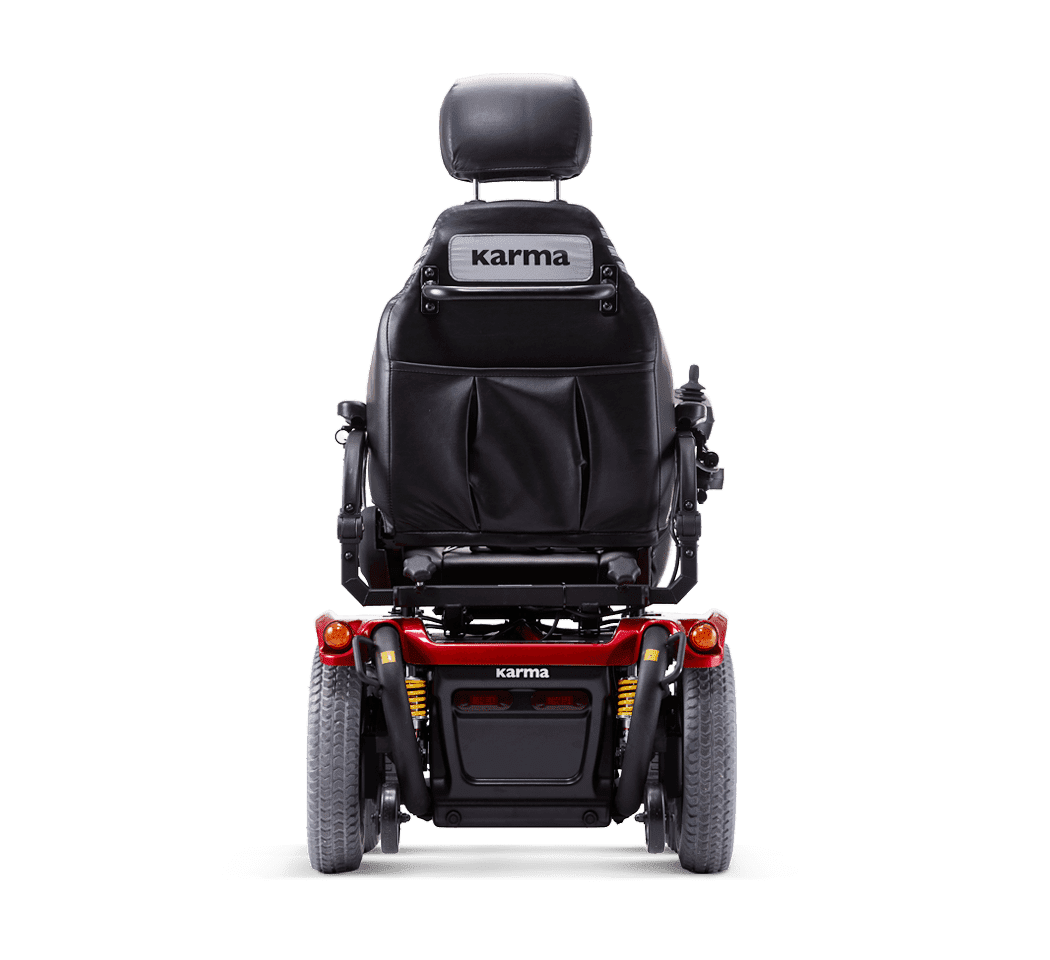

Product NameLEON Captain Seat(with pelvic belt)
Seat Width (mm)460510
Seat Depth (mm)430480
Front Seat Height (mm)530510
Backrest
Height (mm)
530480
Seat Angle (X°)129
Back Angle (X°)0~650~45
Armrest
Height (mm)
210~310210~310

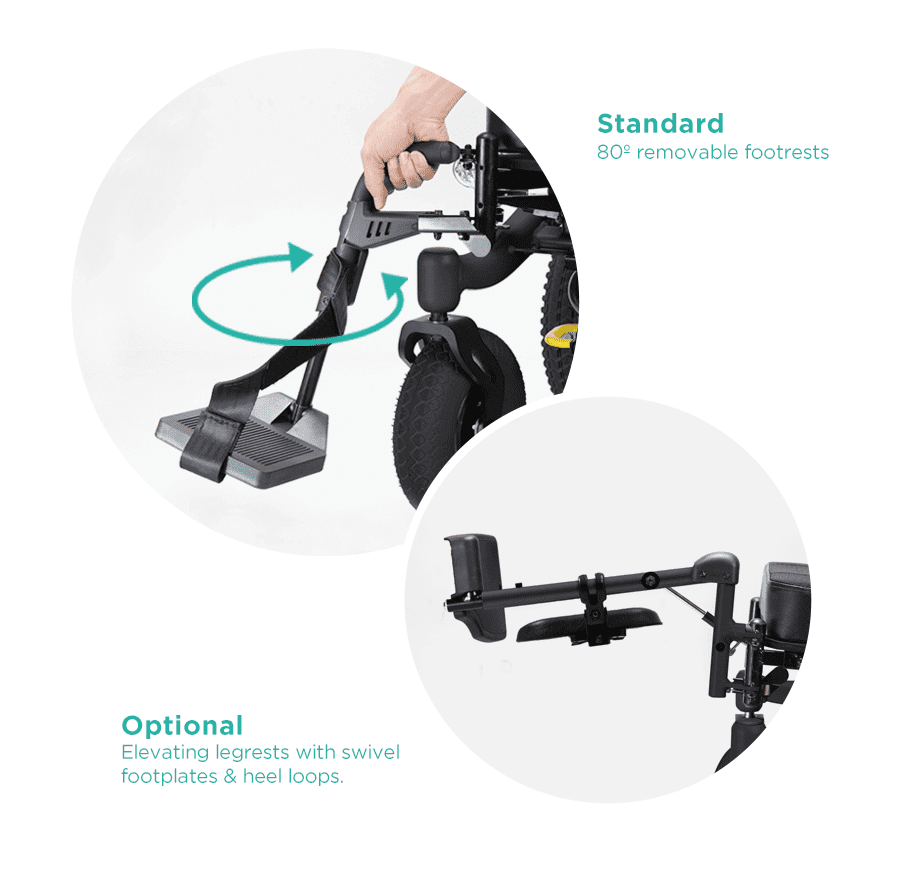

Legrest
Length (mm)
390~520390~520

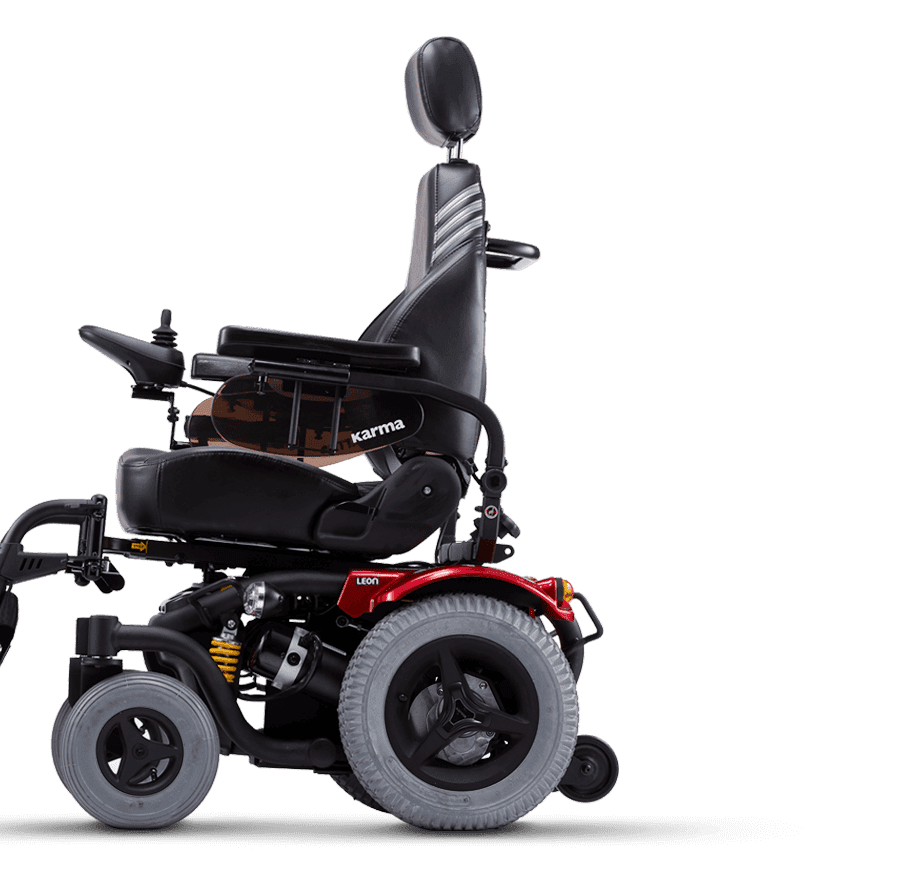

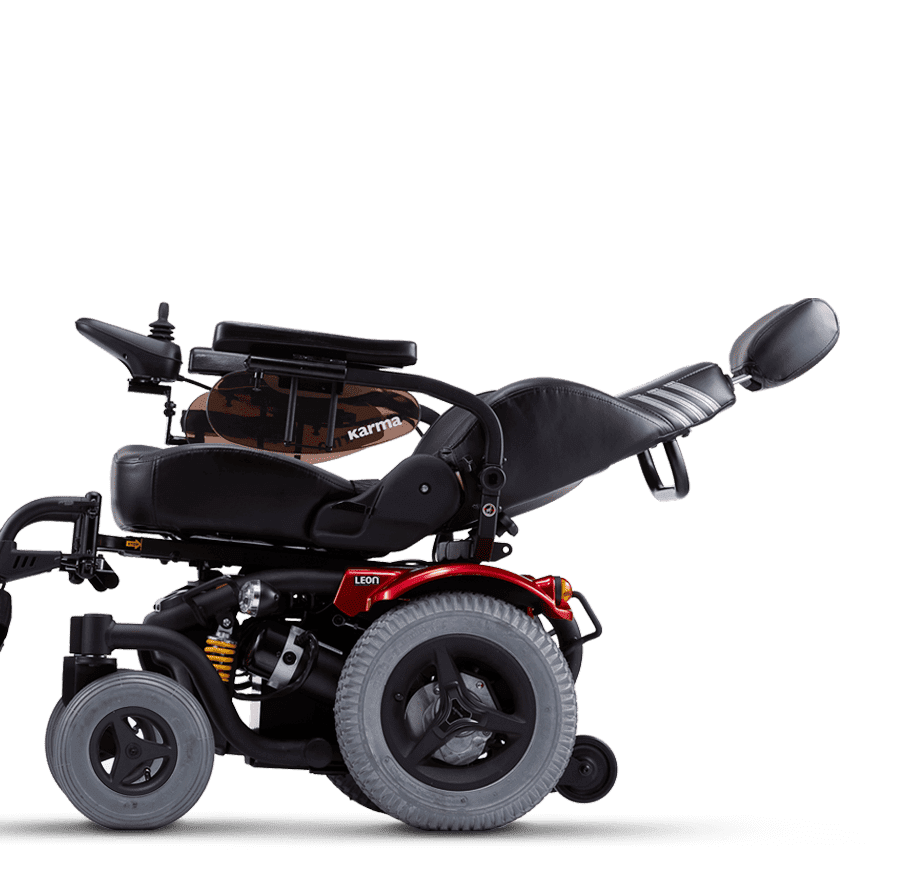

Power FunctionsManual Tilt:0°~65°
Manual Tilt:0°~45°

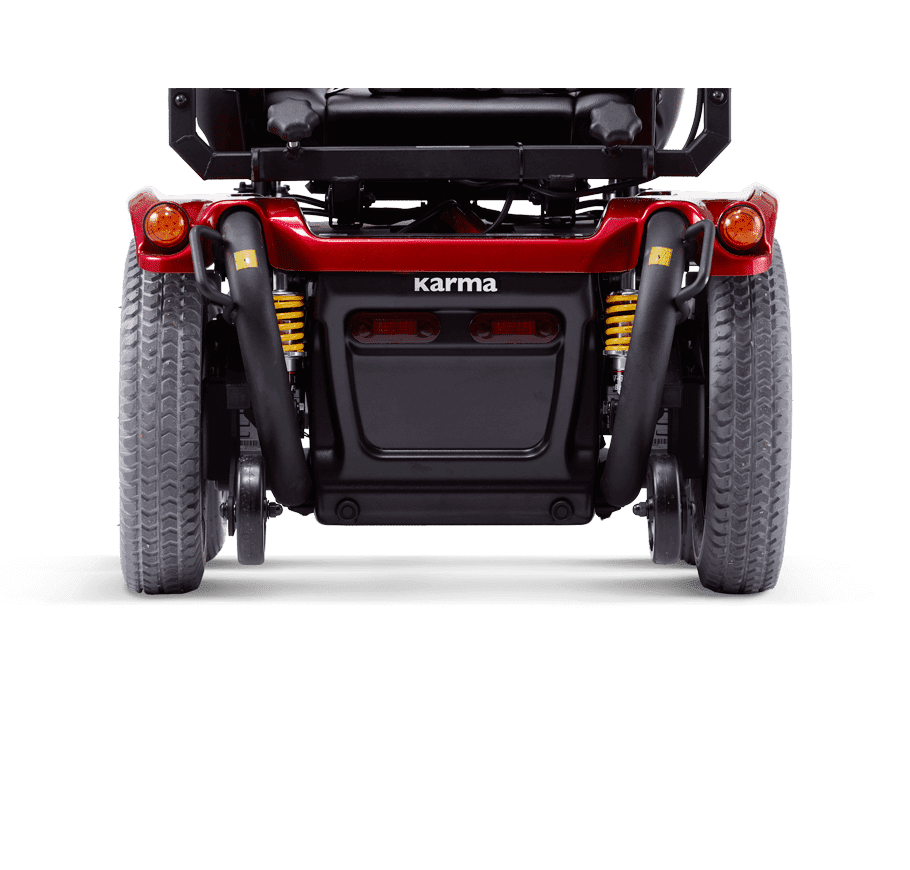

Suspension4 shock absorber
Motor(Nominal Output) DC 450W/4P
Batteries 50Ah * 2pcs (option 60 or 70A*2pcs)
ControllerVR2
Caster Wheel(inch) 230mm(9”) )/ Pneumatic Tire
Rear Wheel(inch) 355mm(14”) )/ Pneumatic Tire
Max Safe Slope
Max. Speed (km) 6km/hr (Germany) / 10km/hr/ 12km/hr
Max Driving Range (km)30km(45km by using 80A batteries)
Maximum Obstacle
Climbing Ability (mm)
5050
Min. Turning Radius (mm)780780
Overall L x W x H (mm)1060*620*1230 (with the headrest))
Max. User Weight (kg)136136
Weight
w/o Batteries (kg)
7070
Weight
w/ Batteries (kg)
100100

Remark :
※ The total weight with batteries will vary depending on the battery used in each local market.
※ Karma reserves the right to modify information herein without further notice.
