Power Positioning Functions

30 cm Power Seat Lift

The seat lift is centrally mounted into the chassis. With this lift, the seat can be raised step less up to 300 mm. This enables the user to have more freedom of movement, not only in the horizontal area but also in the vertical area.

45 degree Centre Gravity tilt

The centre gravity tilt ensures pressure relief and a high degree of comfort. The tilt can also be used when driving down a slope for compensating the negative seat angle. This provides a more stabile seat position and safe driving.

Biomechanical Power Recline

Because it is not always easy to adapt to a new living situation, the MID Lectus is designed with various biomechanics positioning functions to help the user with the transition. It includes power backrest recline and articulated elevating legrest. The seat will traverse with the body, thereby reducing the sheer force to a minimum and most importantly, keeping all the supports in the correct alignment with the body.

Casing Colors

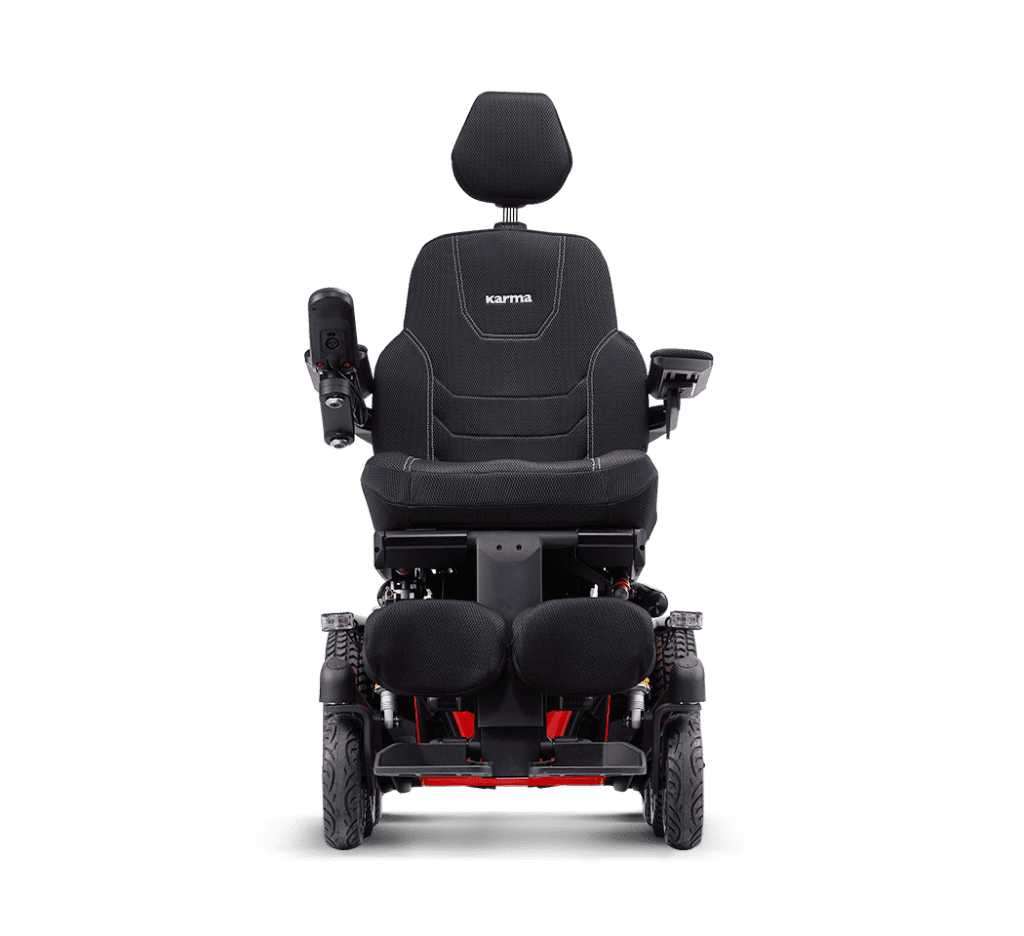

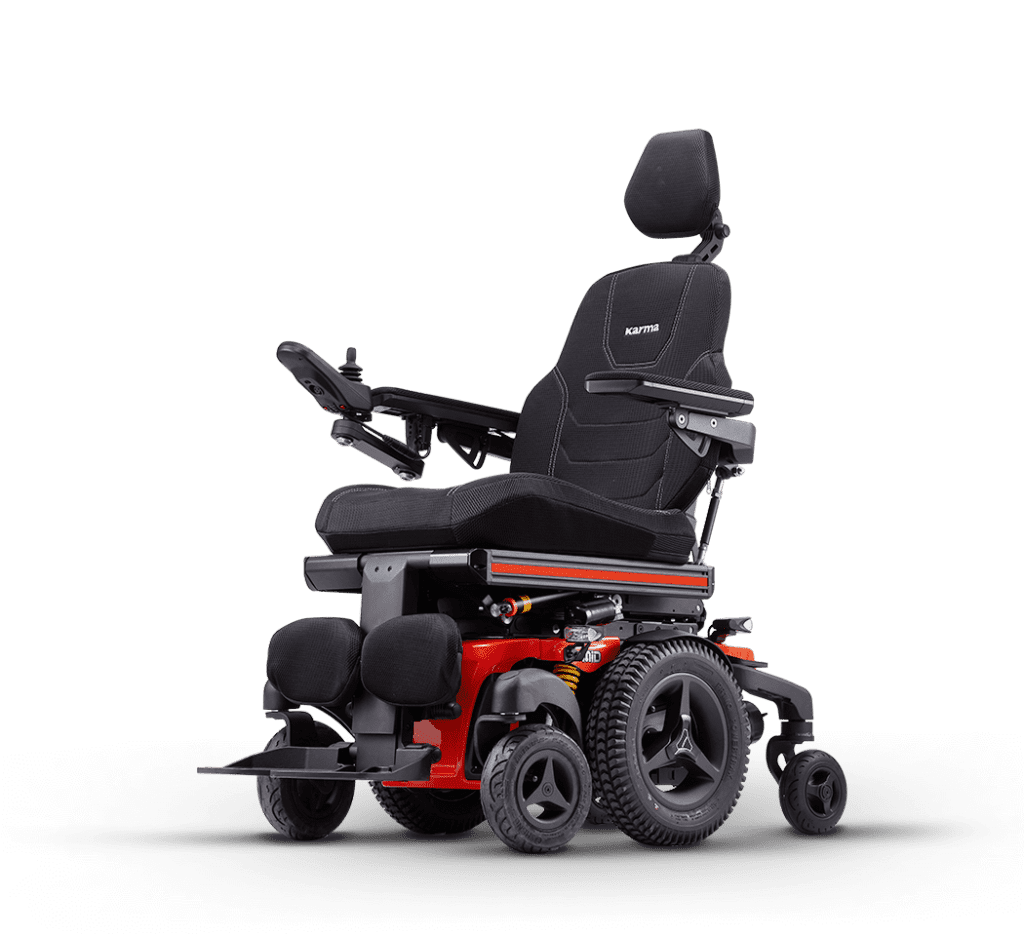

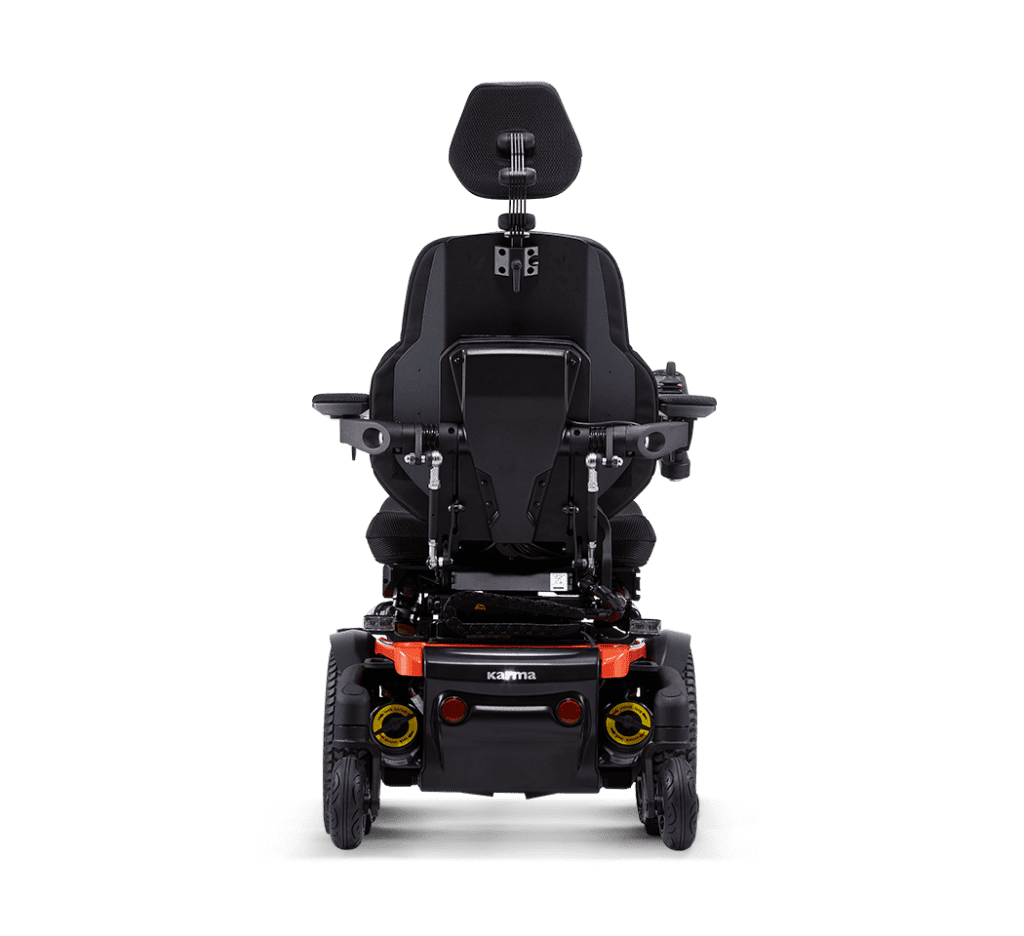

Product Model Mid Lectus
Seating SystemMinimum Maximum
Nominal seat width (mm)*420 ~ 520 mm, 50 mm increment
Nominal seat depth (mm)**400 ~ 600 mm, 25 mm increment
Backrest height without cushion (mm)685695
Backrest height with cushion (mm)615625
Headrest height above seat (mm) 695 800
Armrest to seat distance without
cushion (mm)
250250
Armrest to seat distance with cushion (mm)140140
Front location of armrest structure
(mm)
265665
Seat surface height at front edge
without cushion (mm)
470770
Seat surface height at front edge with
cushion (mm)
580880
Footrest to seat distance without
cushion (mm)
275405
Footrest to seat distance with cushion (mm)
385510
Effective seat width (mm) 420 ~ 520 mm, 50 mm increment
Effective seat depth (mm) 380555
Seat plane angle (X°)549
Backrest angle (X°) -787
Seat to backrest angle (X°)77171
Leg to seat angle (X°) 91173
Driving CharacteristicsMinimum Maximum
Drive wheel size 2.50/2.00 - 4 (8")
Front caster size 3.00 - 8 (14")
Rear caster size 2.00/1.00 - 4 (6")
Overall length with legrest (mm) 11652115
Overall width (mm) 615715
Overall height (mm) 690 1750
Folded length (mm) 830-
Folded width (mm) 615-
Folded height (mm) 1115-
Total mass (kg) - 178
Total mass without batteries (kg) -147
Mass of the heaviest part (kg) - 144
Maximum user weight (kg) - 136
Drive range (km)*** - 36
Maximum speed forward (km)
- 12
Minimum braking distance from max
speed (mm)
2000-
Obstacle climbing (mm) - 50
Ground clearance (mm) 70-
Minimum turning radius (mm) 810-
Minimum turning radius without user (mm)730-
Reversing width (mm) 1170-
Static stability downhill (X°) 9
Static stability uphill (X°)9
Static stability sideways (X°) 9
Dynamic stability uphill (X°) 6
Ability to climb rated slope (X°)*** 12
Electrical System
Motor power (W) 320
Battery capacity (Ah) 80*2
Charger output current (A) 8
Battery Compartment (L x W x H) (mm)180 x 175 x 220 (Front Compartment)
175 x 165 x 225 (Rear Compartment)
Electric ver.06


Remark :

* Nominal seat width is measured the width of seat cushion at 120mm in front of the backrest. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range/ Ability to climb rated slope are estimated based on the following conditions: 20℃~35℃, 140 kg occupant, brand new fully charged batteries and driving on the flat road.
– Mid Lectus satisfies the requirements according to EN 12184 and the maximum occupant mass is 140 kg.
– The actual product specifications differ from the data in the table by ±1 cm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
– Karma reserves the right to modify information herein without further notice.

Power Wheelchair Measurement Method
