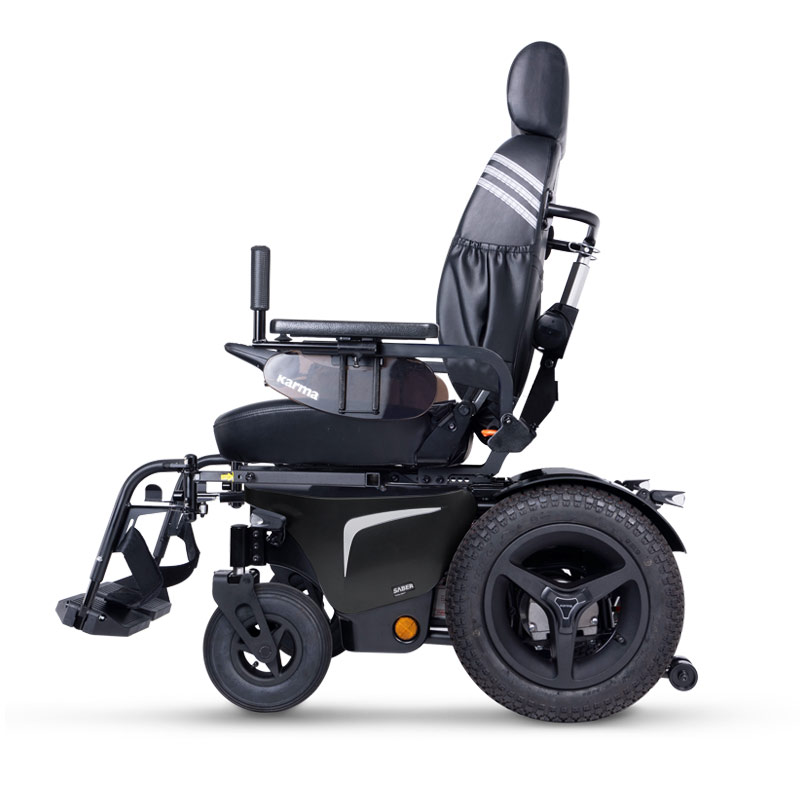

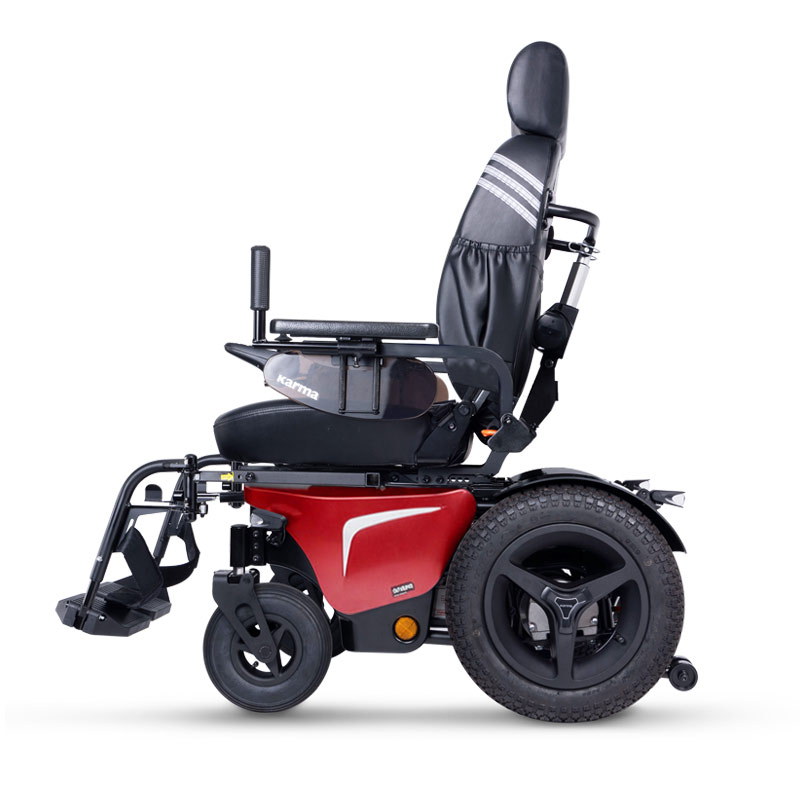

Casing Colors

Product NameSBR-CPT
Seating System
Nominal seat width (mm)450515
Nominal seat depth (mm)460480
Backrest height without cushion (mm)N/AN/A
Backrest height with cushion (mm)520540
Headrest height above seat without cushion (mm)N/AN/A
Headrest height above seat with cushion(mm)700–760740–790
Armrest to seat distance without cushion (mm)N/AN/A
Armrest to seat distance with cushion (mm)195–295195–295
Front location of armrest structure without cushion (mm)N/AN/A
Front location of armrest structure with cushion (mm)0–3500–350
Seat surface height at front edge without cushion (mm)N/AN/A
Seat surface height at front edge with cushion (mm)520520
Seat surface height at front edge with cushion (mm) (powered tilt)550550
Footrest to seat distance without cushion (mm)N/AN/A
Footrest to seat distance with cushion (mm)412–512412–512
Effective seat width (mm)470–525510–525
Effective seat depth (mm)460480
Seat plane angle (X°) (fixed angle)48

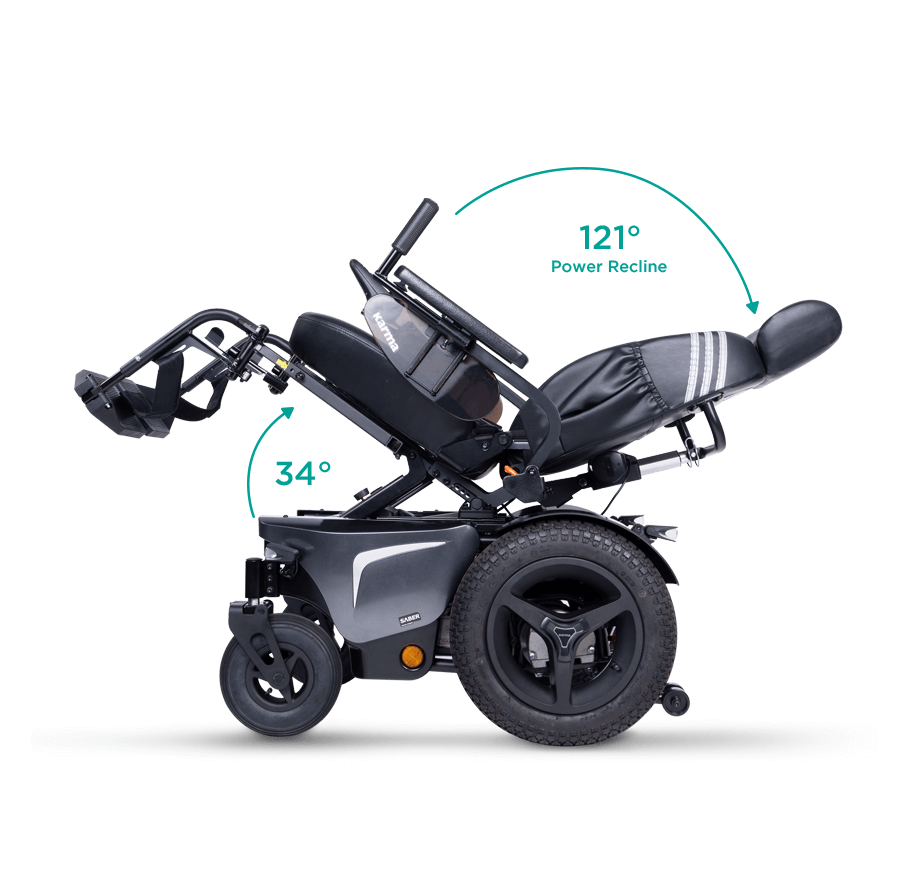

Seat plane angle (X°) (powered tilt)4–388–42
Backrest angle (X°)7–377–37
Seat to backrest angle (X°) (without cushion) (manual recline)N/AN/A
Seat to backrest angle (X°) (with cushion) (manual recline)0–1350–135
Seat to backrest angle (X°) (without cushion) (powered recline)N/AN/A
Seat to backrest angle (X°) (with cushion) (powered recline)91–12191–121
Leg to seat angle (X°)104104
Driving Characteristics
Front caster size2.80/2.50 - 4 (9”)
Drive wheel size3.00 - 10 (16”)
Overall length with legrest (mm)1135–15451135–1650
Overall width (mm)626–680665–680
Overall height (mm)1240–13001260–1330
Folded length (mm)890890
Folded width (mm)626665
Folded height (mm)790860
Total mass (kg)97 (Drive only) – 102 (TR)98 (Drive only) – 103 (TR)
Total mass without batteries (kg)66 (Drive only) – 72 (TR)67 (Drive only) – 73 (TR)
Mass of the heaviest part (kg)65 (Drive only) – 70 (TR)66 (Drive only) – 71 (TR)
Maximum user weight (kg)136
Maximum speed forward (km/h)10/13
Minimum braking distance from max speed (mm)2000
Ground clearance (mm)60
Minimum turning radius (mm)1035
Minimum turning radius without user (mm)905
Reversing width (mm)1190
Static stability downhill (X°)18
Static stability uphill (X°)18
Static stability sideways (X°)10
Dynamic stability (X°)6
Ability to climb rated slope (X°)****12
Electrical System
Controller VR2
Motor power (W) 400

320 (optional)
Battery capacity (Ah)50 x 2
80 x 2
Charger output current (A)6/8
Battery compartment (L x W x H) (mm) 342 x 264 x 221


Remark :

* Nominal seat width is measured the width of seat cushion. This value is mainly used in the product ordering process.
** Nominal seat depth is measured from the front end of the seat cushion to the back cushion. This value is mainly used in the product ordering process.
*** Drive range is estimated based on the following conditions: 20℃–35℃, 136 kg occupant, and brand new fully charged batteries and driving on the flat road. The drive range will be reduced if the wheelchair is used frequently on slopes, rough ground or kerbs (curbs) climbing, etc.
**** Ability to climb rated slope is estimated based on the following conditions: 20℃–35℃, 136 kg occupant, and brand new fully charged batteries.
– The actual product specifications differ from the data in the table by ±10 mm ±0.5 kg.
– The actual product specifications may vary according to different configurations.
